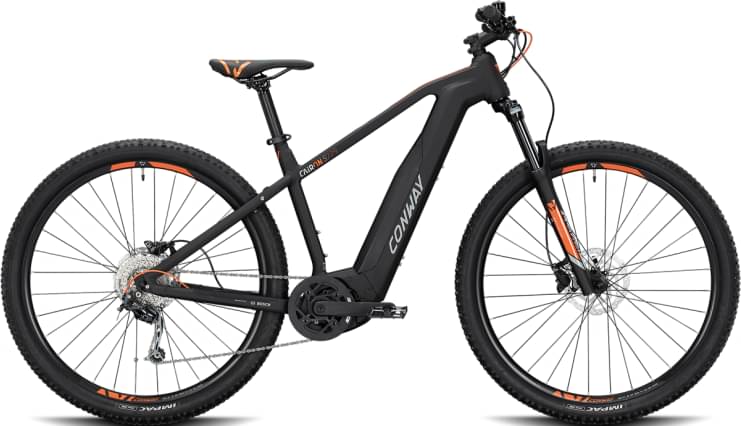

Conway Cairon S 229 SE 2020
2020 E-bike
Estimate price |
2,791$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RST
-
Groupset Deore, Altus -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PP, Alu
Suspension Fork
RST "Blaze MLO", 120 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M591", 9speed
Shift Levers
SHIMANO "Altus SL-M2000"
Cassette
SHIMANO "HG200", 11-36 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "FH-TX505" QR
Rims
CONWAY Hohlkammer "X6", Disc
Tires
IMPAC "Ridgepac", 57-622
Brakes
Brakes
SHIMANO "BR-MT200", 180 mm
Cockpit
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378" Comfort
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh
Remote
BOSCH "Purion", 4-Stufen, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.59 mm | 1.54 mm | 1.47 mm |
| Stack | 642 mm | 642 mm | 651 mm | 651 mm |
| Reach | 385 mm | 405 mm | 422 mm | 442 mm |
| Top Tube Length | 568 mm | 588 mm | 608 mm | 628 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1138 mm | 1158 mm | 1179 mm | 1199 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon S 229 SE is a Conway E Cairon model. Conway released 281 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2020, here.
Model range prices
The most economical model, the Conway Cairon T 200 SE Wave 400 2020 has a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand is the most expensive at 4565$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2547$. Doing a quick comparison, we notice that Cairon S 229 SE price is 32.12% lower than the average cost of a Trail e-bike.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Cairon S 229 SE weighs 23.5 kg (51.81 lbs) and is slightly lighter than the average. In other words, this model is 0.85% lighter than the average Trail e-bike.
Overview of components
Fork
The fork installed on this bike is the RST model. The travel on this model is 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Conway Cairon S 229 SE 2020, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Cairon S 229 SE comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
