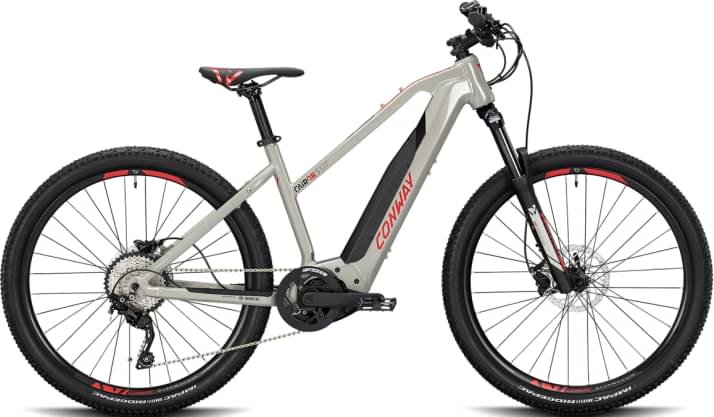

Conway Cairon S 327 Trapez 2020
2020 E-bike
Estimate price |
3,140$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RST
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PP, Alu
Suspension Fork
RST "Aerial Air MLO", 120 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M6000 Shadow Plus", 10speed
Shift Levers
SHIMANO "Deore SL-M6000"
Cassette
SHIMANO "HG500", 11-42 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "FH-TX505" QR
Rims
CONWAY Hohlkammer "X6", Disc
Tires
IMPAC "Ridgepac", 57-584
Brakes
Brakes
SHIMANO "BR-MT200", 180 mm
Cockpit
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378" Comfort
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh
Remote
BOSCH "Purion", 4-Stufen, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.53 mm | 1.49 mm | 1.42 mm |
| Stack | 613 mm | 613 mm | 622 mm | 622 mm |
| Reach | 381 mm | 400 mm | 417 mm | 437 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1118 mm | 1138 mm | 1159 mm | 1179 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Cairon S 327 Trapez is a Conway E Cairon model. Conway released 281 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2020, here.
Model range prices
The most economical model, the Conway Cairon T 200 SE 400 2020 has a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand is the most expensive at 4565$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2020 for 2866$. Comparing the average cost of a Trail e-bike to this one, you will see that Cairon S 327 Trapez price is 17.41% smaller.
Average weight for Trail e-bikes
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Cairon S 327 Trapez has a weight of 23.5 kg (51.81 lbs). To sum up, it’s 0.85% lighter than the average weight of Trail e-bikes.
Cairon S 327 Trapez components
Fork
Conway Cairon S 327 Trapez 2020 e-bike is equipped with the RST fork, and has 120mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Cairon S 327 Trapez 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon S 327 Trapez has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
