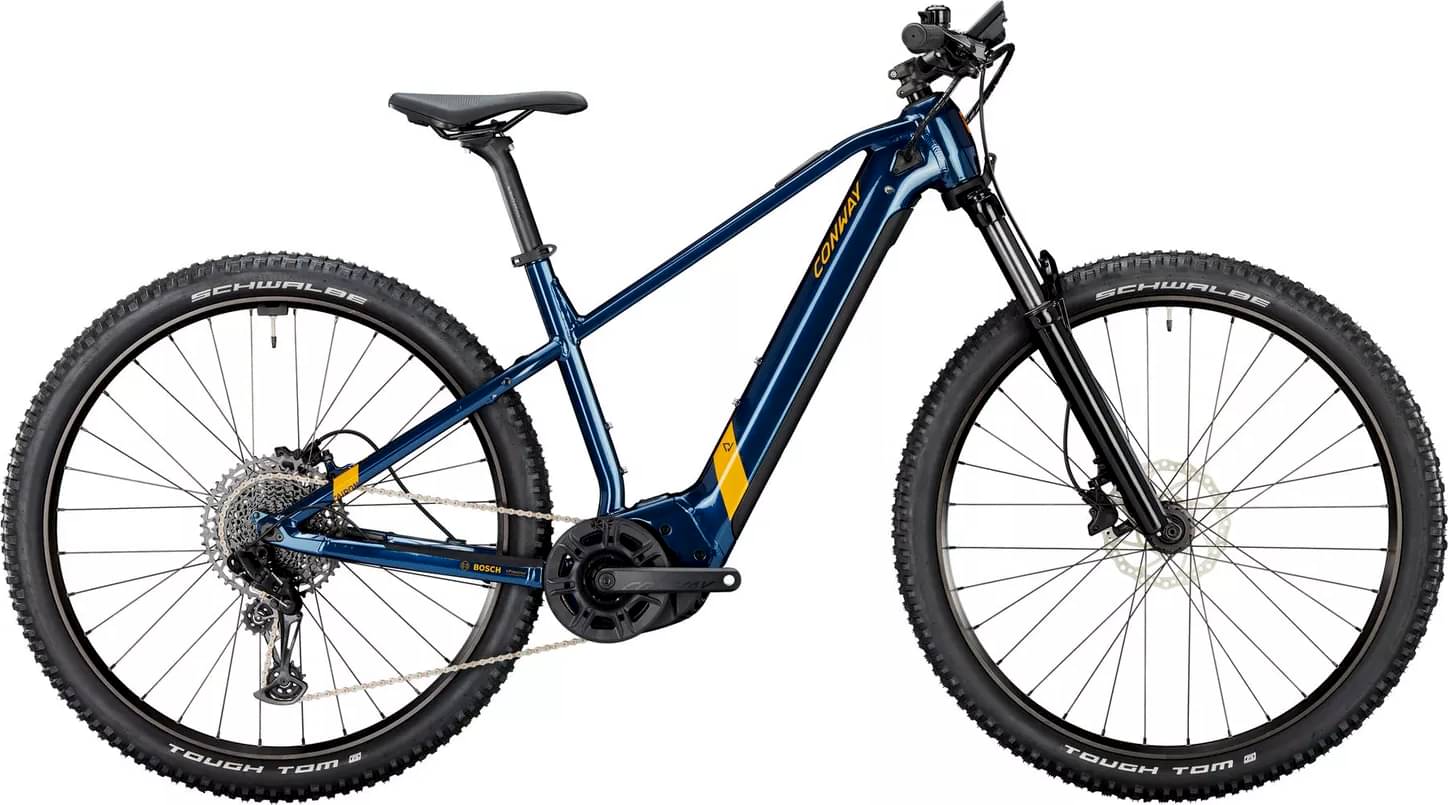

Conway Cairon S 4.0 Hardtail, diamond 2023
2023 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RST BLADE
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 750", 750 Wh, BES3, horizontal -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen. 4, BES3, aluminium, diamond, 41cm
Suspension Fork
RST suspension fork "Blade Air TNL", 29", 120mm travel, tapered, post mount, thru axle, black
Drivetrain
Rear Derailleur
SRAM "SX Eagle"
Shift Levers
SRAM "SX Eagle", single click, 12-speed
Cassette
SRAM "PG-1210", 12-speed Eagle, 11-50 teeth
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Pedals
VP COMPONENTS "VPE-506"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110mm, 6-hole, 32 holes, thru axle, black
Rear Hub
FORMULA "EHL-148S", 12 x 148mm, 6-hole, 11-speed HG, 32 holes, thru axle, black
Rims
RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
SCHWALBE "Tough Tom" Active Line, 60-622,K-Guard, 50 TPI
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
CONWAY, 1 1/8", 31,8mm handlebar clamp, 75mm long, angle 7°, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Straight", 140mm, G-Link, black / grey
Headset
ACROS ZS56/28,6 / ZS56/40, 1 1/8" - 1,5" tapered, 120° blocklock below
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", gents
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black
Motor & Battery
Motor

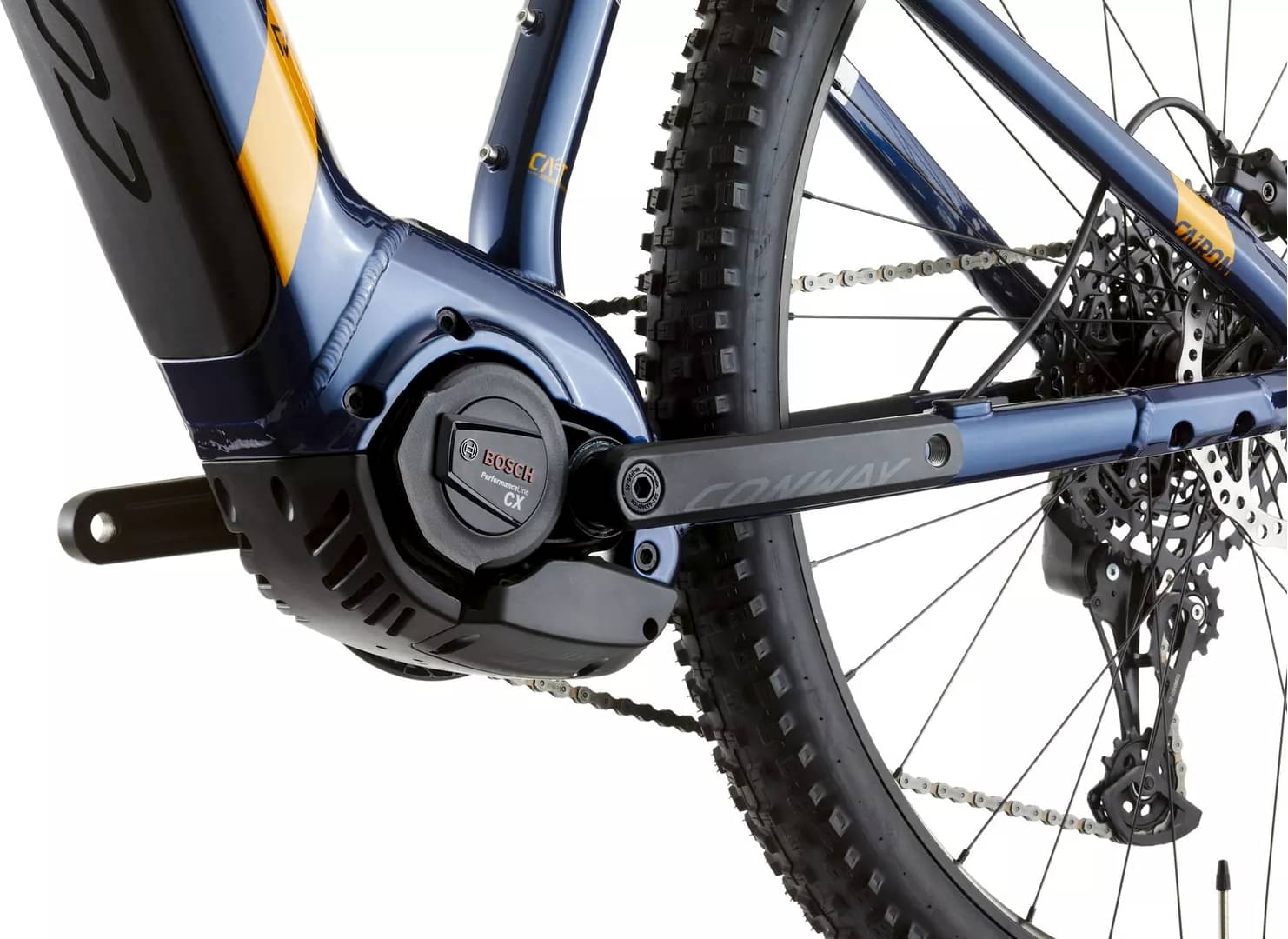

BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 750", 750 Wh, BES3, horizontal
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.53 mm | 1.49 mm | 1.41 mm | 1.38 mm |
| Stack | 642 mm | 642 mm | 651 mm | 651 mm | 660 mm |
| Reach | 396 mm | 419 mm | 438 mm | 461 mm | 480 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Cairon S 4.0 Hardtail, diamond is part of the Conway E Cairon model. Conway launched 351 e-bikes of this model so far. Take a sneak peek at all Conway E Cairon e-bikes models from 2023, by clicking here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the most affordable e-bike of this model and has a price of 2646$. On the other hand, Conway Cairon SUV FS 7.7 2023, is the most expensive and costs 5823$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
This e-bike was released in 2023 and its price was 4235$. If we compare this with the average Trail e-bike cost we notice that the price is 25.85% more expensive.
Cairon S 4.0 Hardtail, diamond components
Fork
This e-bike has the RST BLADE fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the Cairon S 4.0 Hardtail, diamond model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
