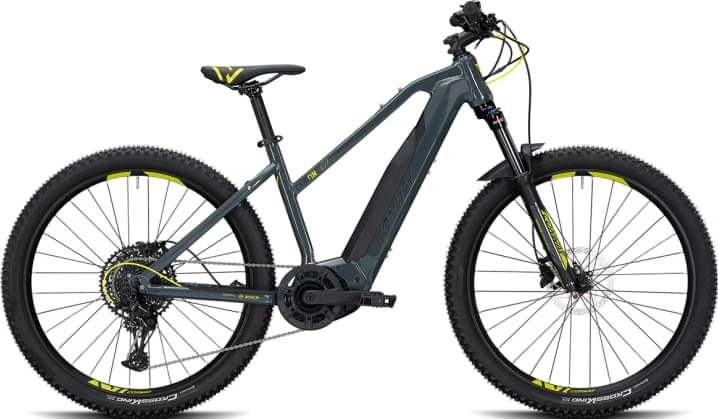

Conway Cairon S 427 Trapez 2020
2020 E-bike
Estimate price |
3,373$
Weight | 22.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCR 34
-
Groupset SX Eagle, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PP, Alu
Suspension Fork
SR SUNTOUR "XCR34 Air" LRO 120 mm
Drivetrain
Rear Derailleur
SRAM "SX Eagle", 12-speed
Shift Levers
SRAM "SX Eagle Trigger" single click
Cassette
SRAM "PG 1210 Eagle", 11-50 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-MT400" 15x110 mm Boost
Rear Hub
SHIMANO "FH-M3050" QR
Rims
CONWAY Hohlkammer "X18", Disc
Tires
CONTINENTAL "Cross-King", 58-584
Brakes
Brakes
SHIMANO "BR-MT200", 180 mm
Cockpit
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378" Comfort
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh
Remote
BOSCH "Purion", 4-Stufen, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.53 mm | 1.49 mm | 1.42 mm |
| Stack | 613 mm | 613 mm | 622 mm | 622 mm |
| Reach | 381 mm | 400 mm | 417 mm | 437 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1118 mm | 1138 mm | 1159 mm | 1179 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Cairon S 427 Trapez belongs to the Conway E Cairon model. There are 281 e-bikes that carry this model name. Take a sneak peek at all Conway E Cairon e-bikes models from 2020, by clicking here.
Model range prices
Conway Cairon T 200 SE Wave 400 2020 is the most affordable e-bike of this model and has a price of 2335$. On the other hand, Conway Cairon T 800 Wave Enviolo 2020, is the most expensive and costs 4565$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2020 for 3078$. Comparing this to the average Trail e-bike price, we see that the price is 9.32% smaller.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Cairon S 427 Trapez weighs 22.5 kg (49.6 lbs) and is a bit lighter than the average. In other words, this model is 5.33% lighter than the average Trail e-bike.
Overview of components
Fork
The SunTour XCR 34 is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Cairon S 427 Trapez 2020 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
Cairon S 427 Trapez comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
