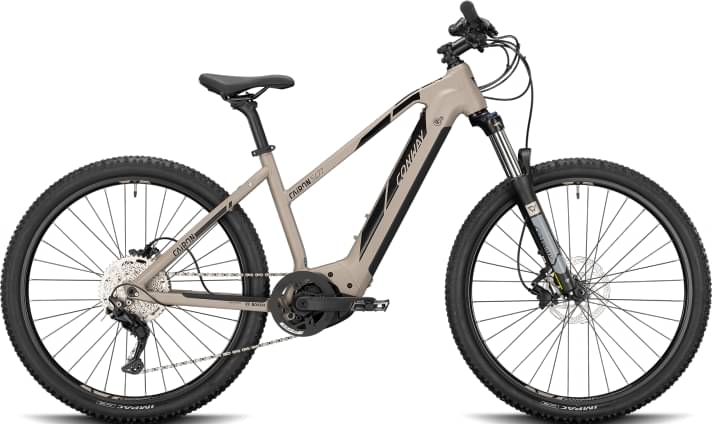

Conway Cairon S 427 Trapez 2021
2021 E-bike
Estimate price |
3,440$
Weight | 24.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork SunTour XCM
-
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PT 36 V, 16,66 Ah, 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
SUNTOUR "XCM34 NLO", 120 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M5120 Shadow Plus", 10speed
Shift Levers
SHIMANO "Deore SL-M4100"
Cassette
SHIMANO "CS-M4100", 11-46 Z.
Crank
FSA "CK-745", 170 mm
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT400B", 12x148 mm
Rims
CONWAY "X17", Disc
Tires
IMPAC "Ridgepac", 57-584
Brakes
Brakes
TEKTRO "HD-T390" 180/180
Cockpit
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm
Motor & Battery
Motor
BOSCH Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH, "Purion", 4-Stufen
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.53 mm | 1.49 mm | 1.42 mm |
| Stack | 613 mm | 613 mm | 622 mm | 622 mm |
| Reach | 381 mm | 400 mm | 417 mm | 437 mm |
| Top Tube Length | 562 mm | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1118 mm | 1138 mm | 1159 mm | 1179 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
Cairon S 427 Trapez is a Conway E Cairon model. 281 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
Conway Cairon T 100 400 2021 is the most economical model, with a starting price of 2547$. Conway Cairon SUV FS 827 2021 on the other hand costs 5414$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2021 for 3184$. If we compare this with the average Trail e-bike cost we notice that the price is 5.68% smaller.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.9 kg (54.9 lbs), the Cairon S 427 Trapez model is a bit heavier than average. In other words, this model is 5.06% heavier than the average Trail e-bike.
Cairon S 427 Trapez components
Fork
The Cairon S 427 Trapez comes factory-installed with the SunTour XCM fork. This has a travel range of 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on Cairon S 427 Trapez are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon S 427 Trapez has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Conway Cairon S 427 Trapez e-bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
