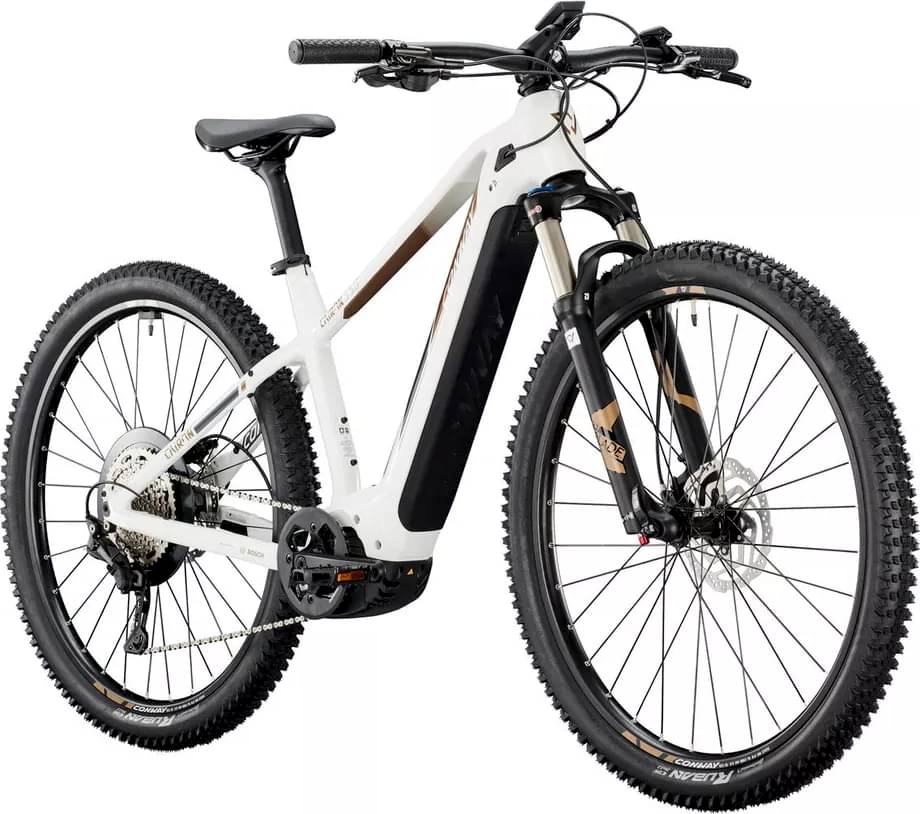

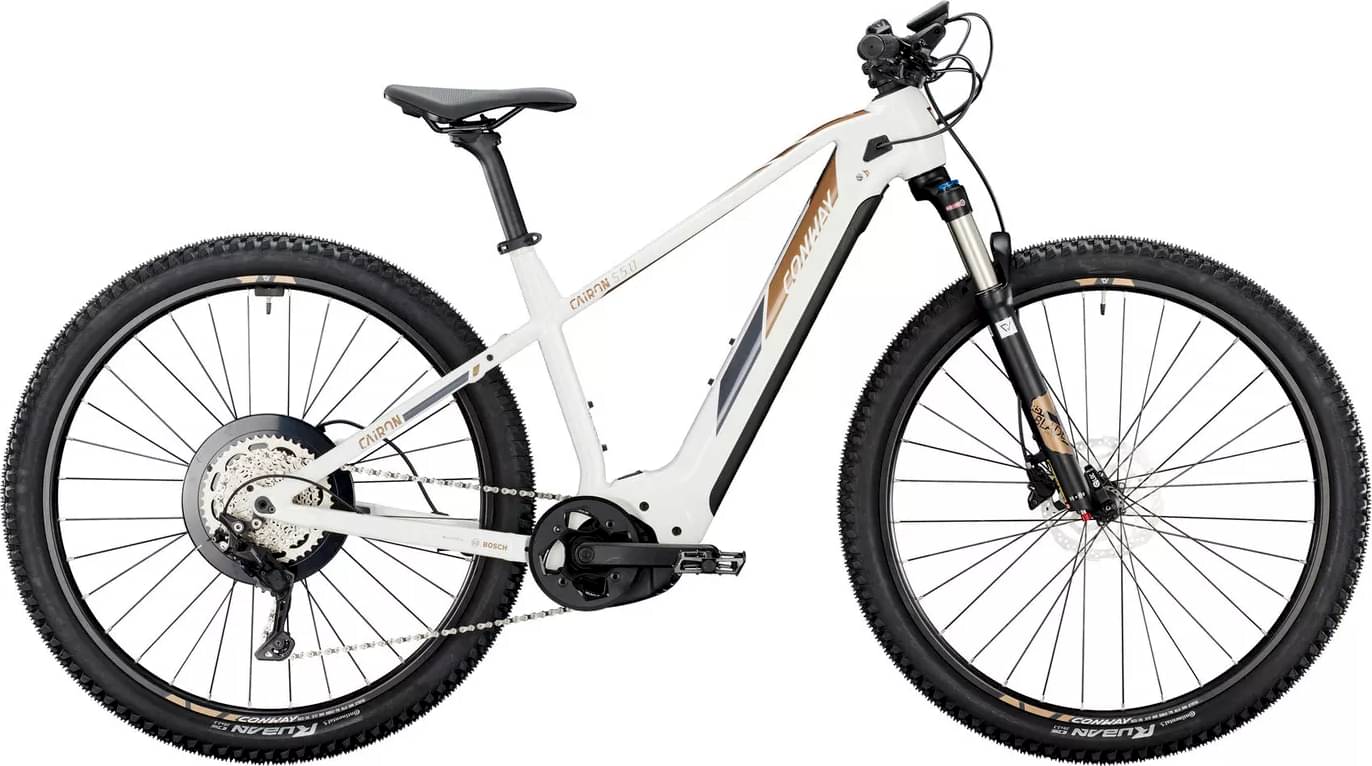

Conway Cairon S 5.0 Hardtail, Diamant 2023
2023 E-bike
Estimate price |
4,185$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RST BLADE
-
Groupset Tektro, Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", lithium-ion with BMS, 750 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, aluminum
Suspension Fork
RST "Blade Air", 120mm

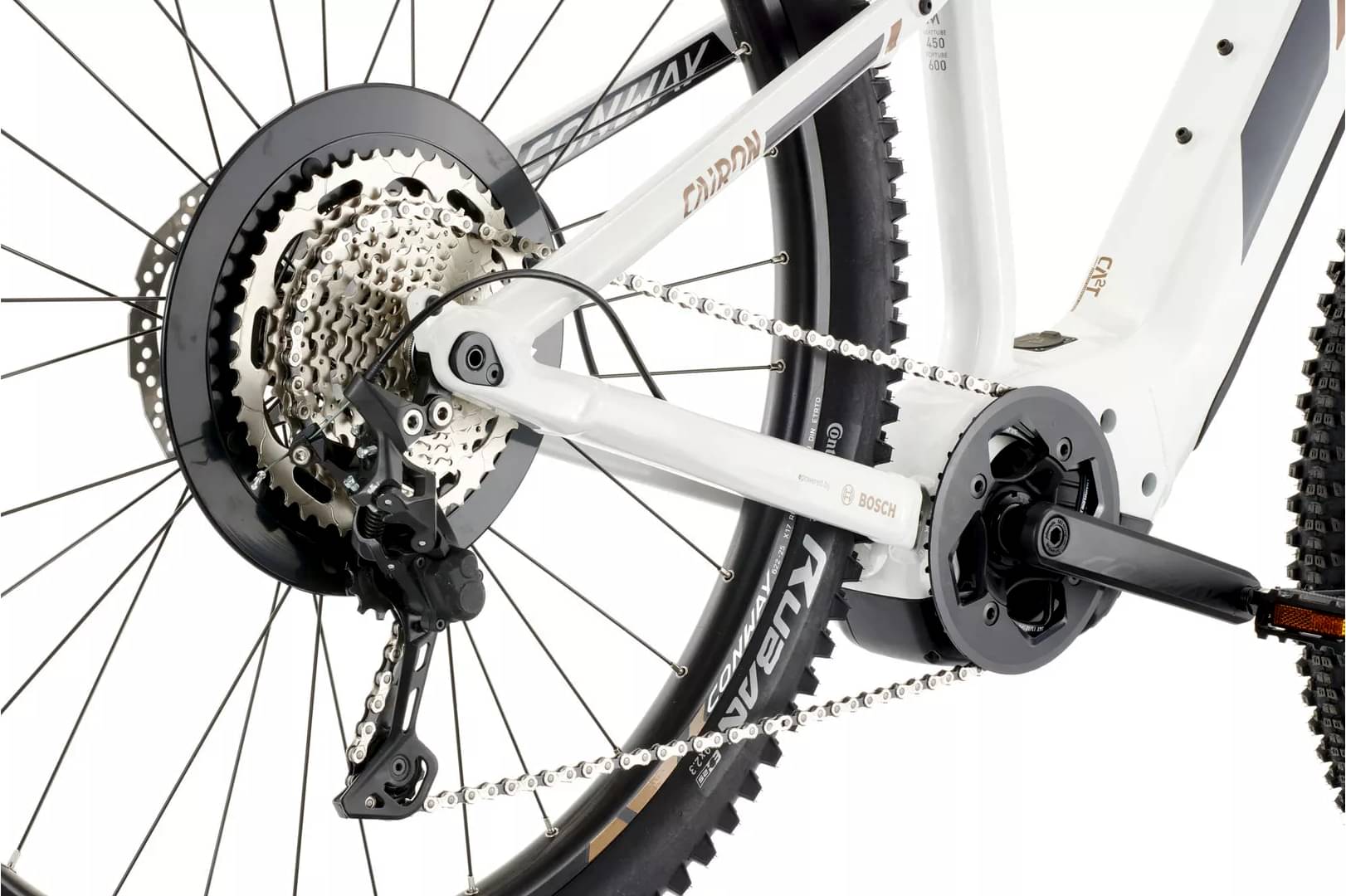

Drivetrain
Rear Derailleur
TEKTRO "RD-T 350-E", 9speed, w. clutch
Shift Levers
TEKTRO "SL-M350"
Crank
MIRANDA "PSI", 170 mm
Bottom Bracket
Bosch, press-fit
Pedals
VP "VPE-506"
Wheels
Rims
CONWAY hollow chamber "X17", disc
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-622
Brakes
Brakes
TEKTRO "HD-M280"
Brake Levers
TEKTRO "HD-M280"

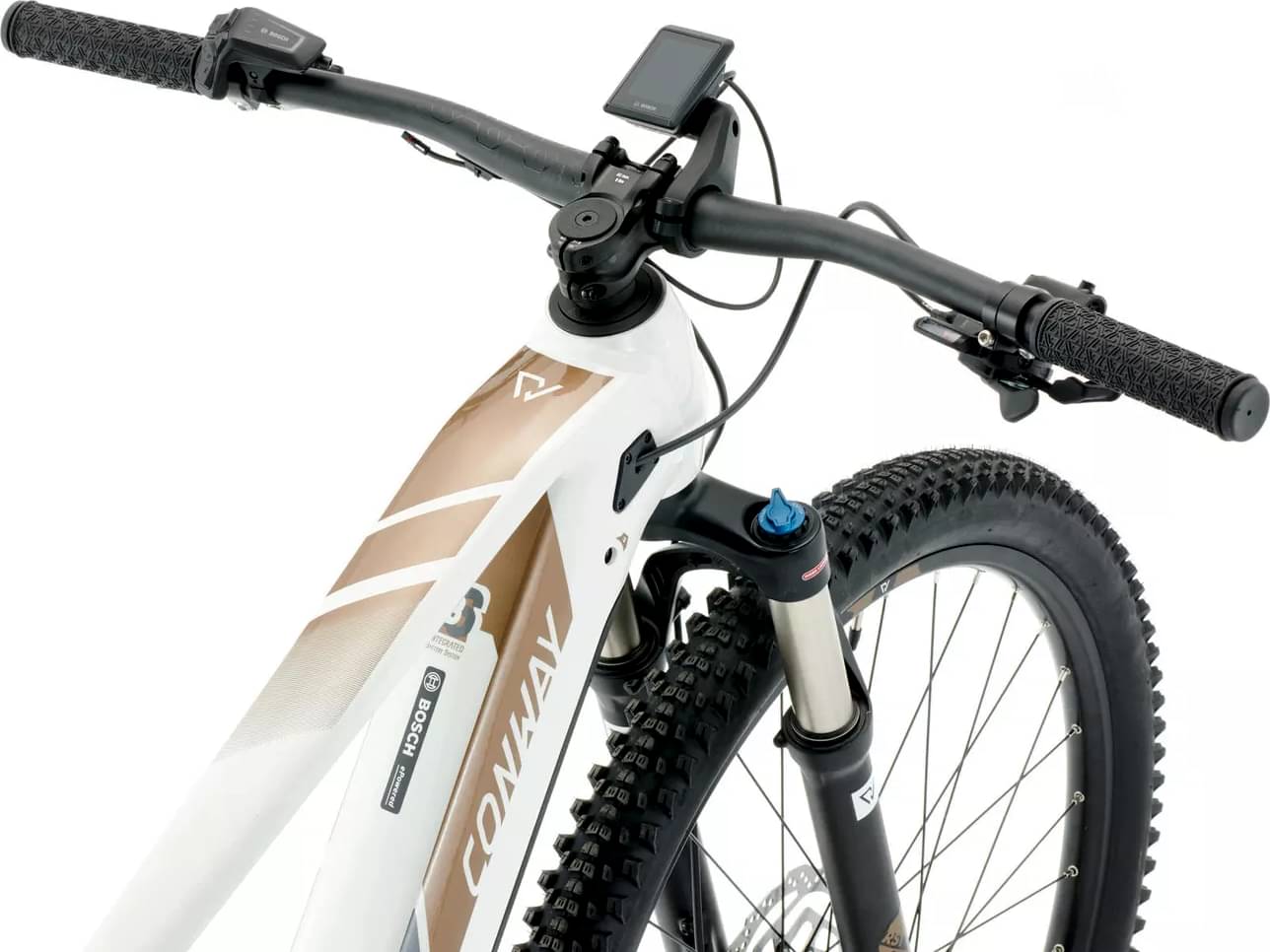

Cockpit
Stem
LEVEL 9 "Team A-Head", 31.8mm, 40mm
Handlebar
LEVEL 9 "Race Riser", Ø 31.8, 780 mm
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", He
Seatpost
CONWAY Patent, 31.6mm, 350mm
Motor & Battery
Motor

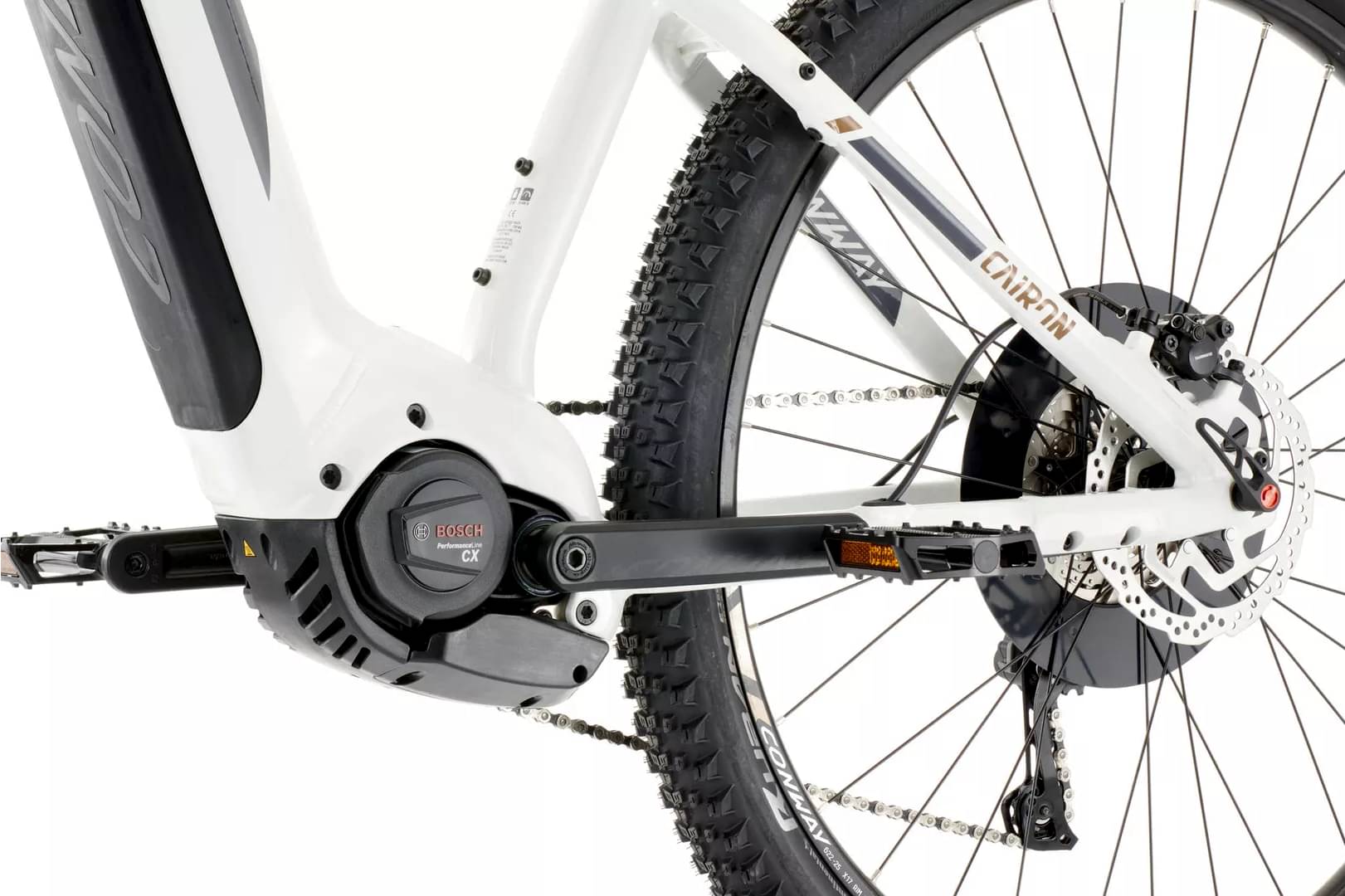

BOSCH mid-engine Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", lithium-ion with BMS, 750 Wh
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.53 mm | 1.49 mm | 1.41 mm | 1.38 mm |
| Stack | 642 mm | 642 mm | 651 mm | 651 mm | 660 mm |
| Reach | 396 mm | 419 mm | 438 mm | 461 mm | 480 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
Cairon S 5.0 Hardtail, Diamant completes the Conway E Cairon model. Conway released 351 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2023, here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the most affordable e-bike of this model and has a price of 2646$. On the other hand, Conway Cairon SUV FS 7.7 2023, is the most expensive and costs 5823$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3864$. Doing a quick comparison, we notice that Cairon S 5.0 Hardtail, Diamant price is 14.83% more expensive than the average cost of a Trail e-bike.
Cairon S 5.0 Hardtail, Diamant components
Fork
The fork installed on this bike is the RST BLADE model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The Cairon S 5.0 Hardtail, Diamant 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Conway Cairon S 5.0 Hardtail, Diamant is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
