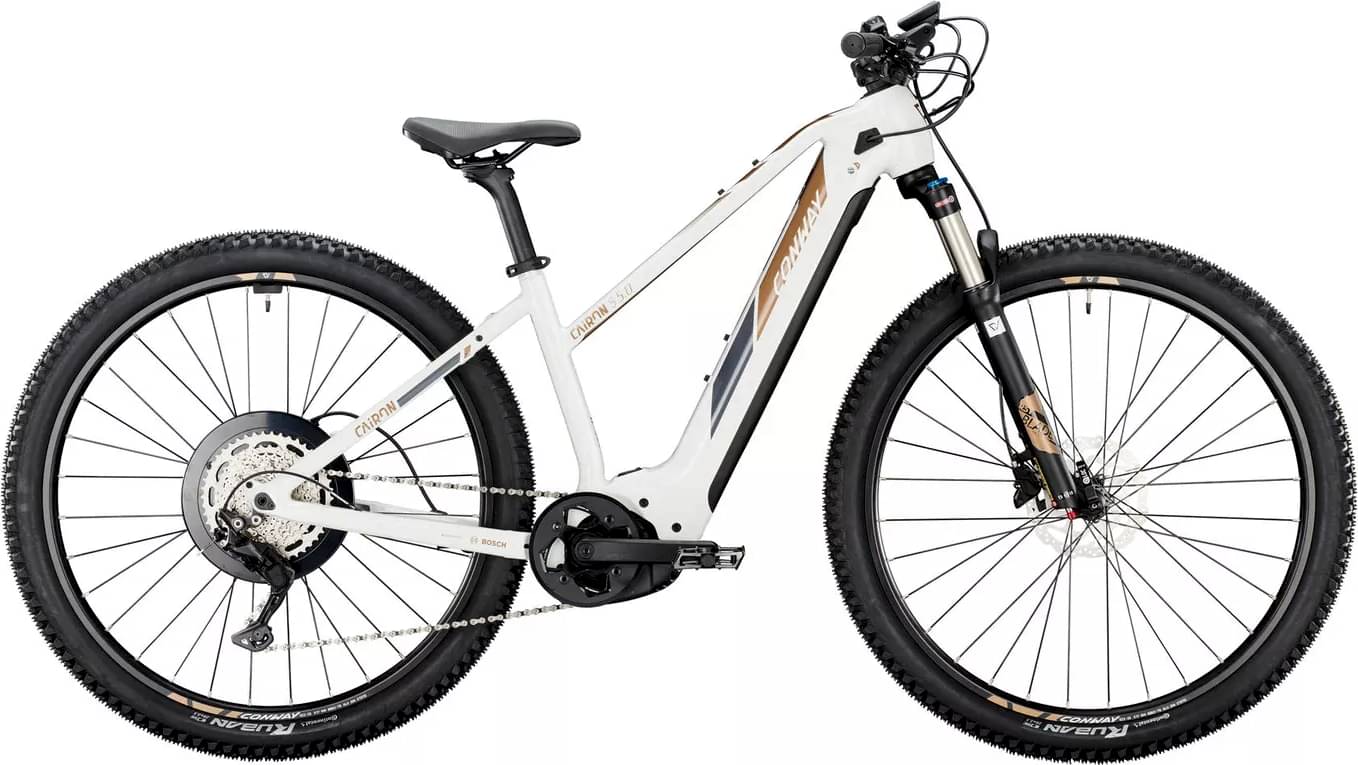

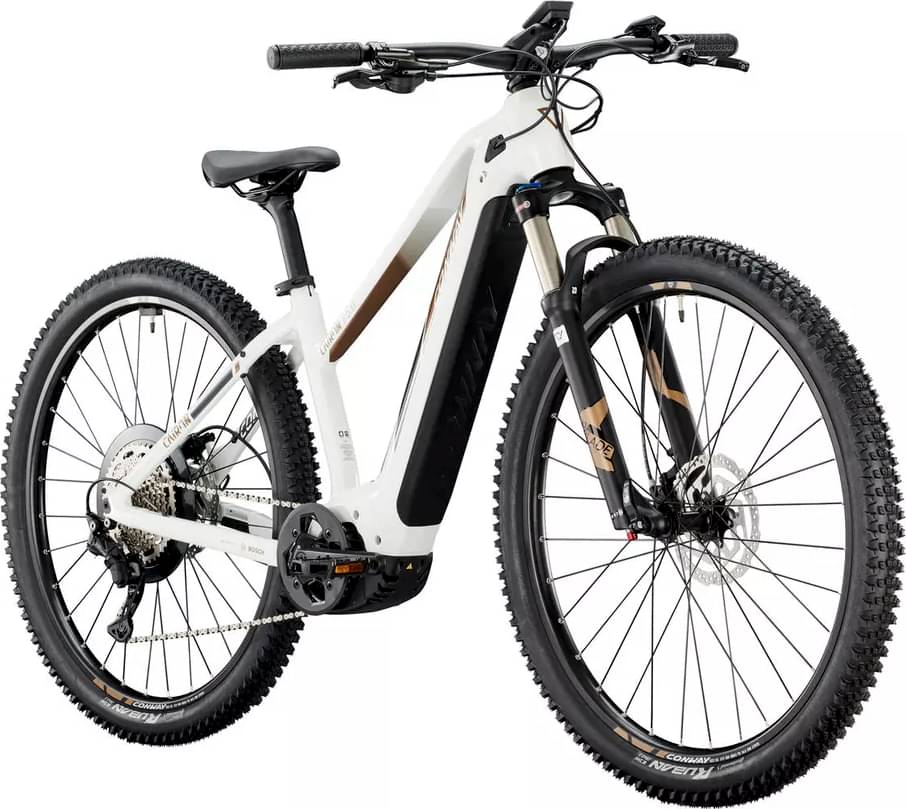

Conway Cairon S 5.0 Hardtail, trapeze 2023
2023 E-bike
Estimate price |
4,185$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RST BLADE
-
Groupset Tektro, Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Blade Air", 120mm
Drivetrain
Rear Derailleur
TEKTRO "RD-T 350-E", 9speed, w. clutch
Shift Levers
TEKTRO "SL-M350"
Cassette
TEKTRO "CS-M350", 11-46 Z.
Crank
MIRANDA "PSI", 170 mm
Bottom Bracket
BOSCH
Pedals
VP "VPE-506"
Wheels
Front Hub
CONWAY "Alloy", 15x110mm
Rear Hub
CONWAY "Alloy", 12x148 mm
Rims
CONWAY Hohlkammer "X17", Disc
Spokes
Niro
Tires
CONTINENTAL "Ruban", 58-622
Brakes
Brakes
TEKTRO "HD-M280"
Brake Levers
TEKTRO "HD-M280"
Cockpit
Stem
LEVEL 9 "Team A-Head", 31,8 mm, 40 mm
Handlebar
LEVEL 9 "Race Riser", Ø 31,8, 780 mm
Grips
SQLAB "70X"
Headset
ZS56 / ZS56, Blocklock
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3600"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.49 mm | 1.41 mm |
| Stack | 640 mm | 642 mm | 651 mm | 651 mm |
| Reach | 402 mm | 419 mm | 438 mm | 461 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon S 5.0 Hardtail, trapeze is a Conway E Cairon model. Conway released 351 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the cheapest e-bike model and costs 2646$. Conway Cairon SUV FS 7.7 2023 is the most expensive one and costs 5823$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3864$. In conclusion, this e-bike price is 14.83% higher than the price of the average Trail e-bike.
Overview of components
Fork
Conway Cairon S 5.0 Hardtail, trapeze 2023 e-bike is equipped with the RST BLADE fork, and has 120mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Cairon S 5.0 Hardtail, trapeze 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon S 5.0 Hardtail, trapeze comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Conway Cairon S 5.0 Hardtail, trapeze e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
