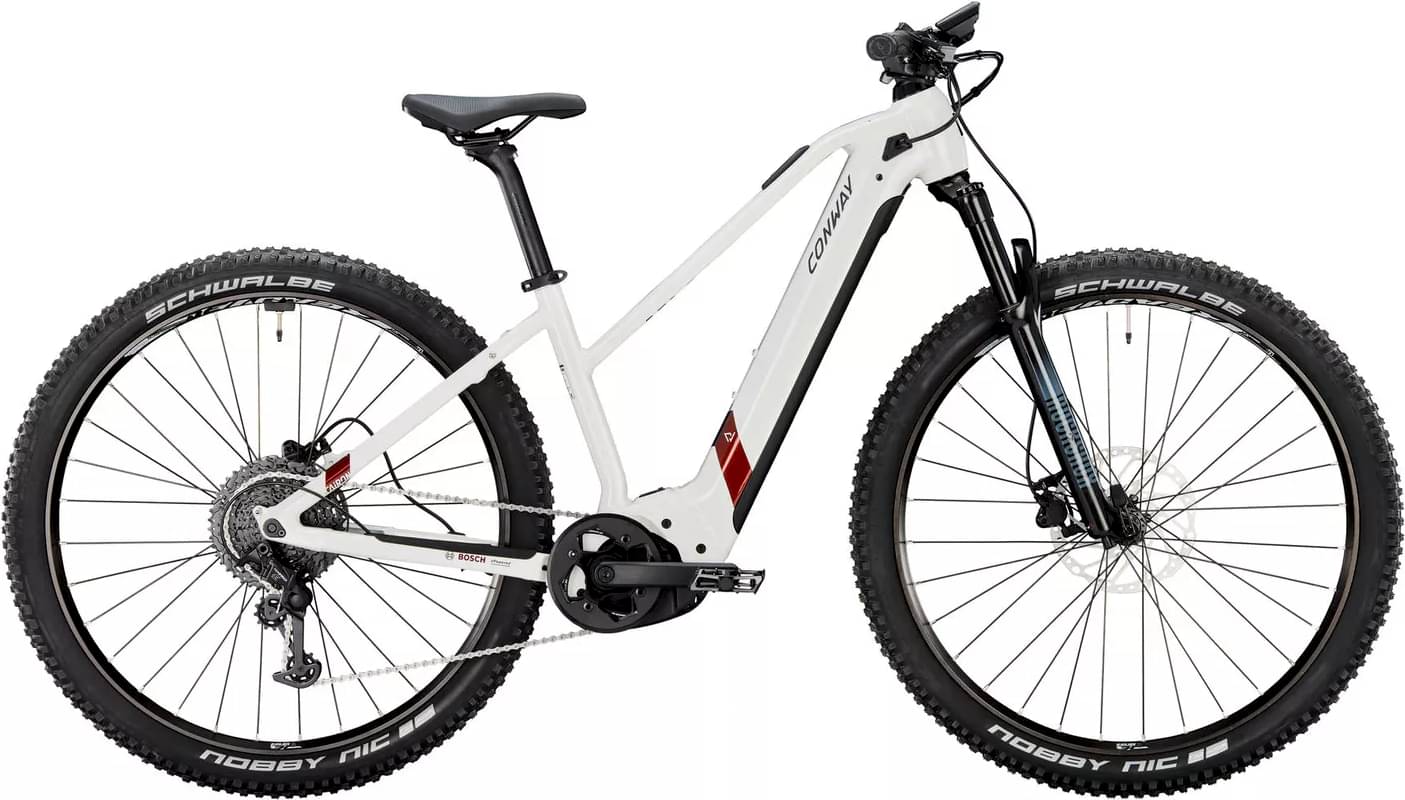

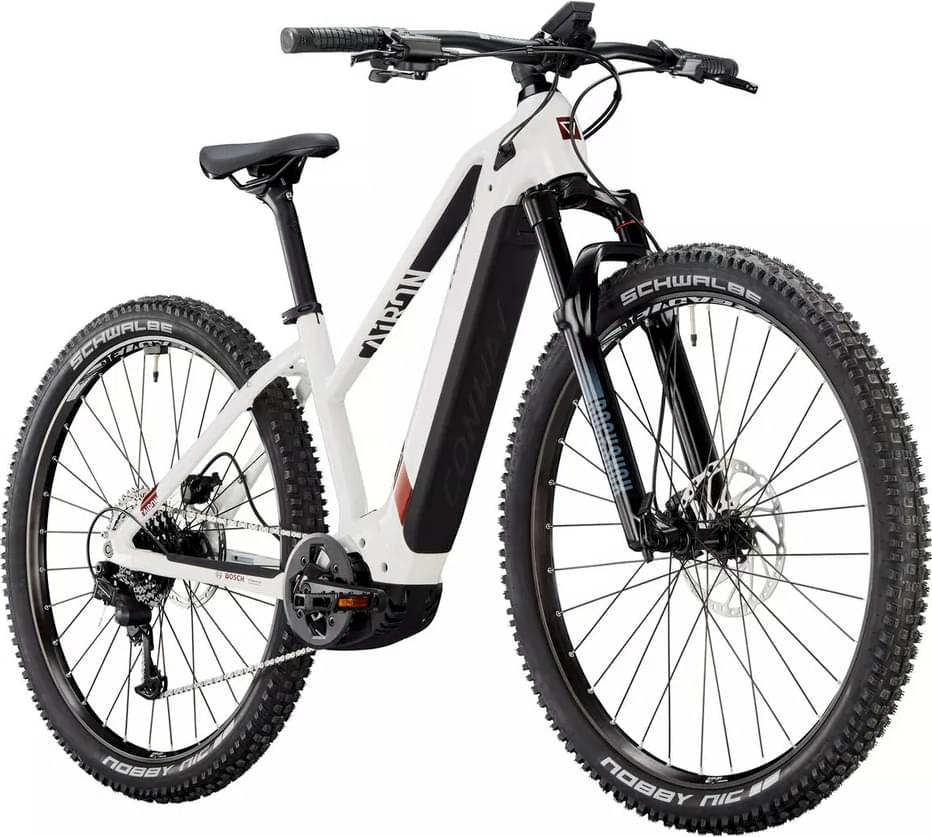

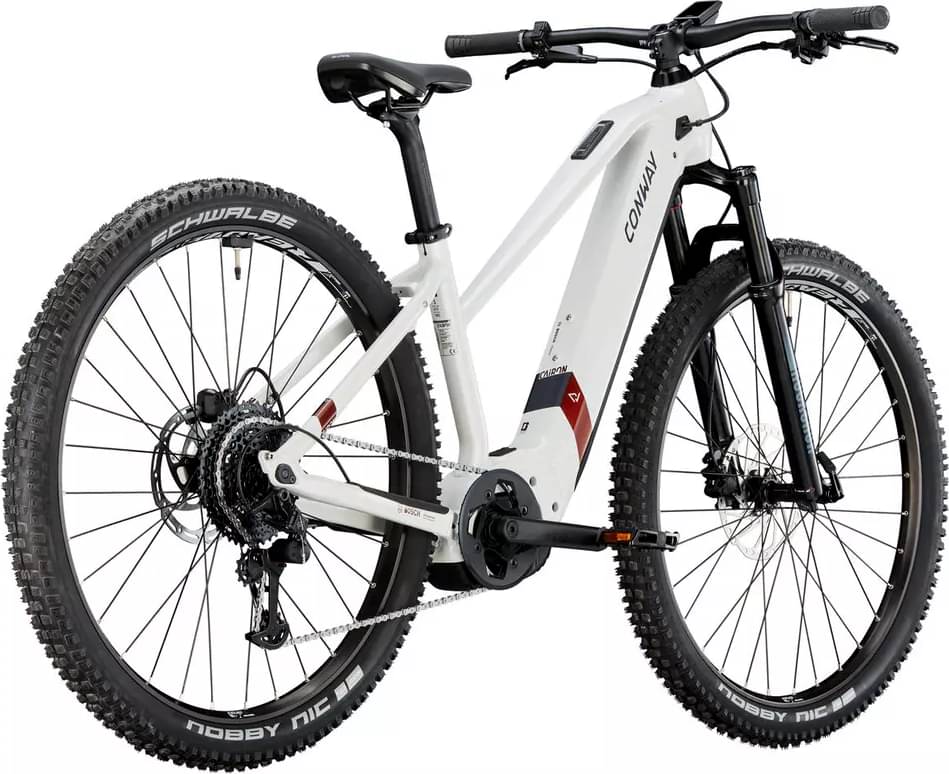

Conway Cairon S 8.0 Hardtail, trapeze 2023
2023 E-bike
Estimate price |
5,390$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 750", 750 Wh, BES3, horizontal -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen.4, BES3, aluminium, trapeze, 41cm
Suspension Fork
ROCKSHOX suspension fork "35 Gold RL", 29", 120mm travel, tapered, post mount, boost, 15mm thru axle

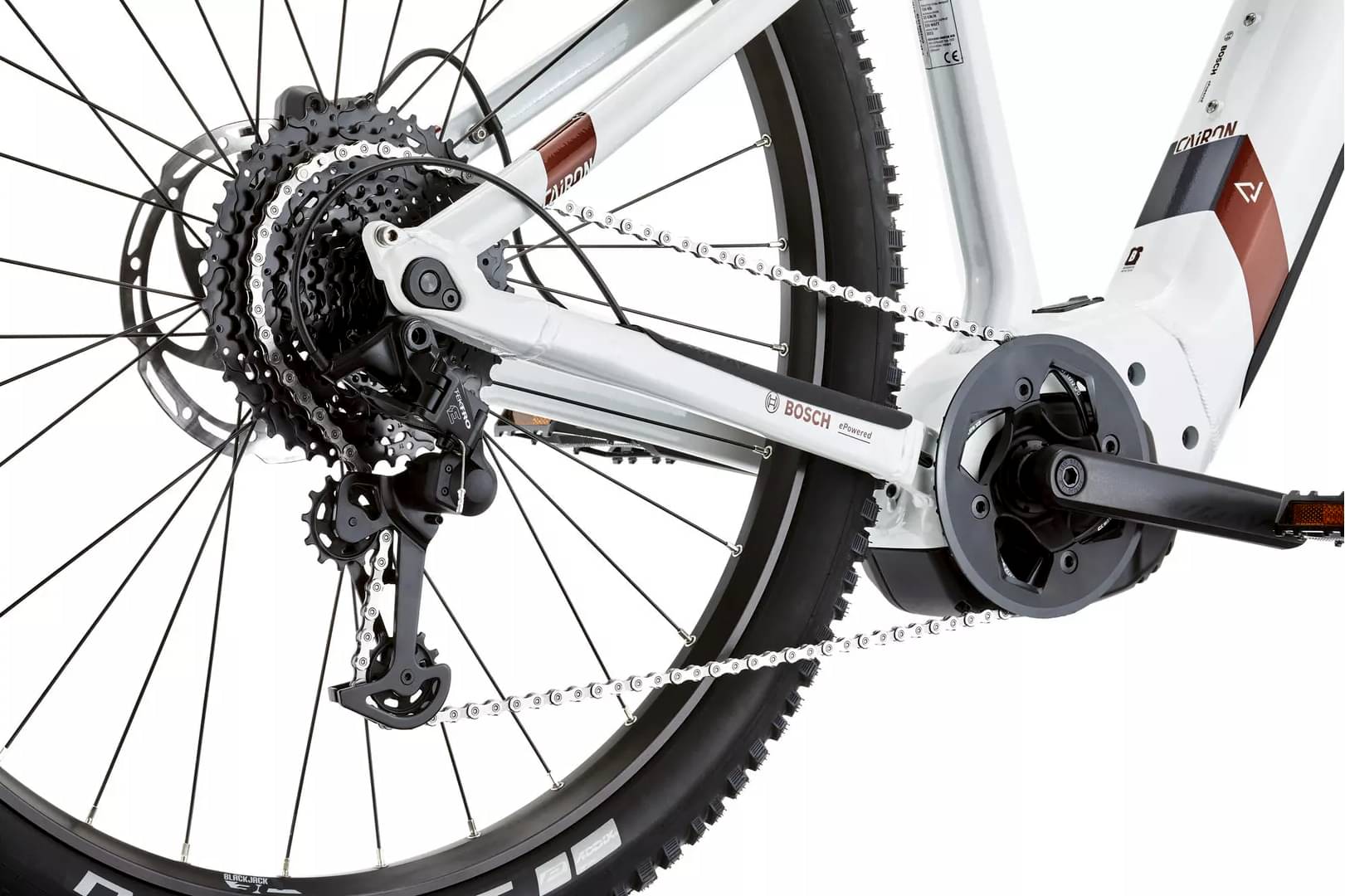

Drivetrain
Rear Derailleur
SHIMANO "Deore XT" RD-M8130-SGS, LINKGLIDE, long cage
Shift Levers
SHIMANO "Deore XT" SL-M8130, LINKGLIDE, 11-speed
Cassette
SHIMANO "CS-LG600", 11-50 Z.
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Pedals
VP COMPONENTS "VPE-506"
Wheels
Front Hub
SHIMANO "Altus" HB-MT400-B, 15 x 110mm, Center Lock, 32 holes, thru axle, black
Rear Hub
SHIMANO "Alivio" FH-MT400-B, 12 x 148mm, Center Lock, 8-/9-/10-speed, 32 holes, thru axle, black
Rims
RODI "Ready 30", 30-622, 32 holes, disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
SCHWALBE "Nobby Nic", 60-622
Brakes
Brakes
hydraulic disc brake

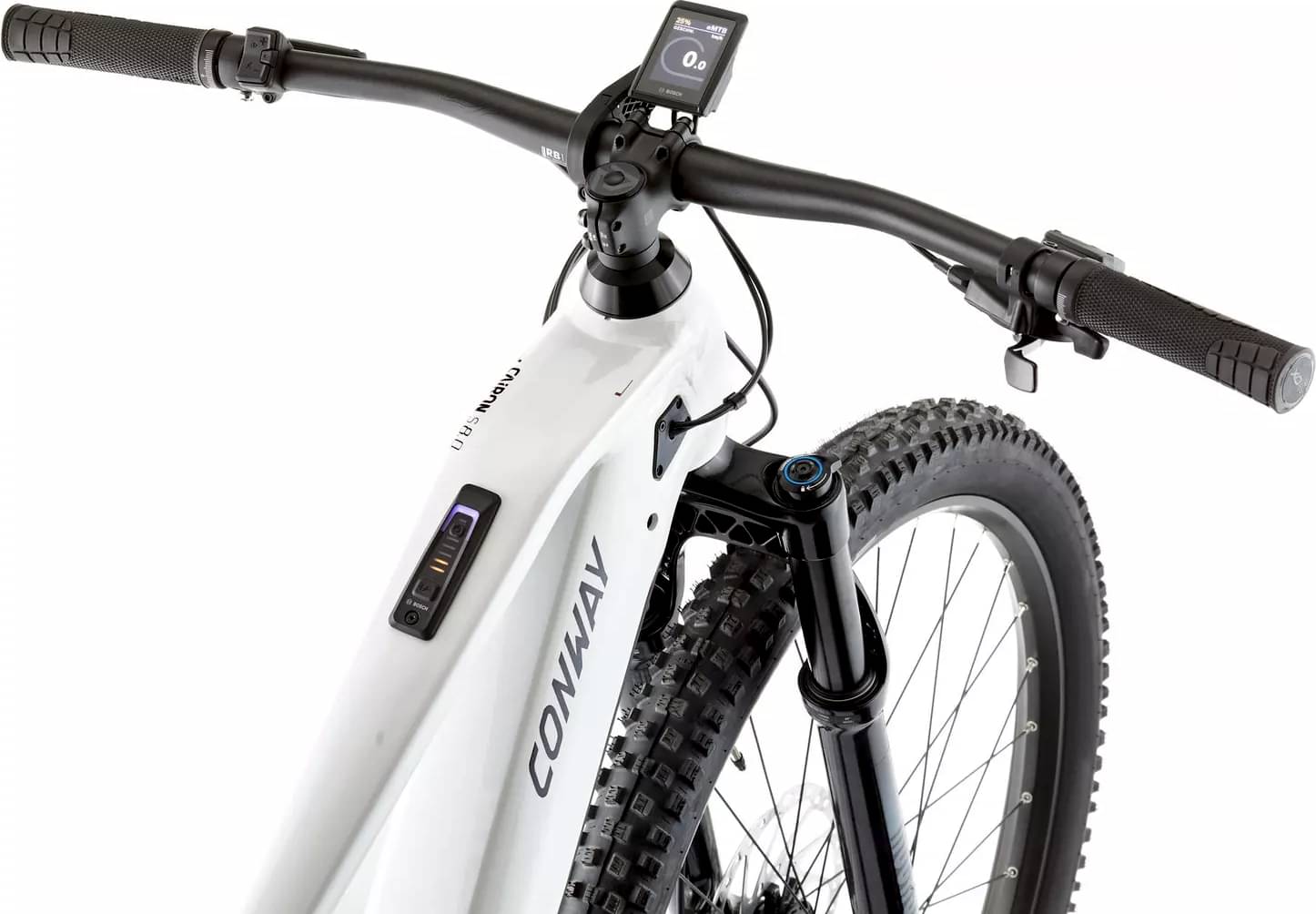

Cockpit
Stem
LEVELNINE "A-Head", 1 1/8", 31,8mm handlebar clamp, 35mm long, angle 0°, black
Handlebar
LEVELNINE "Race Riser", 780mm, Ø 31,8mm, backsweep 9°, rise 15mm, black
Grips
SQLAB "70X", 135mm, black
Headset
GLORY WHEEL "SIT3 Strummer", ZS56/28,6 / ZS56/40, 20mm stack, ACB bearing
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", ladies
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black

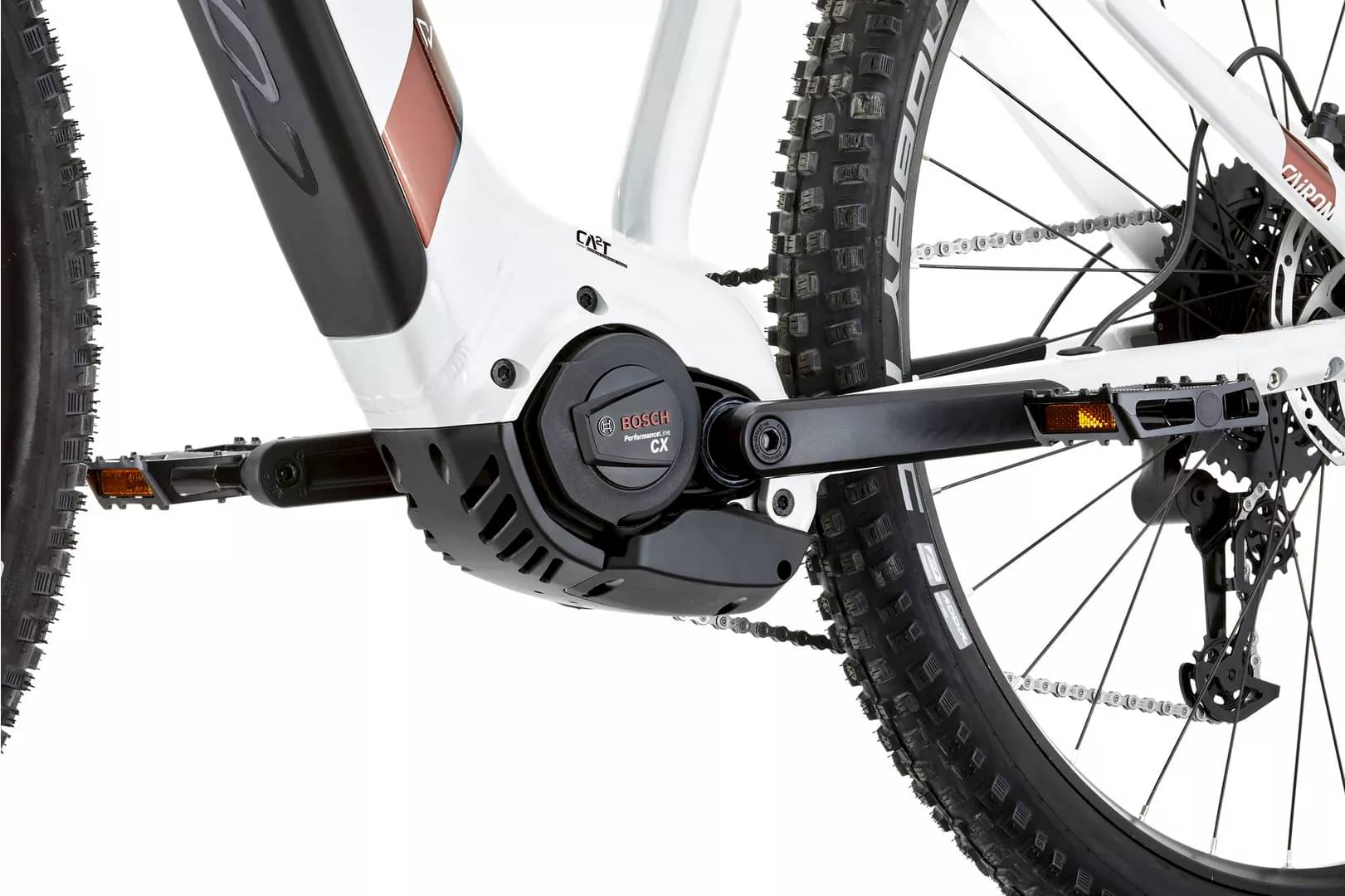

Motor & Battery
Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 750", 750 Wh, BES3, horizontal
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.49 mm | 1.41 mm |
| Stack | 640 mm | 642 mm | 651 mm | 651 mm |
| Reach | 402 mm | 419 mm | 438 mm | 461 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon S 8.0 Hardtail, trapeze is part of the Conway E Cairon model. Conway launched 351 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Conway Cairon TF 1.7 wave 2023 has a starting price of 2646$. Conway Cairon SUV FS 7.7 2023 on the other hand is the most expensive at 5823$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Conway released this model in 2023, its price was 4976$. Comparing this to the average Trail e-bike price, we see that the price is 47.88% higher.
Overview of components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the Cairon S 8.0 Hardtail, trapeze model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon S 8.0 Hardtail, trapeze has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
