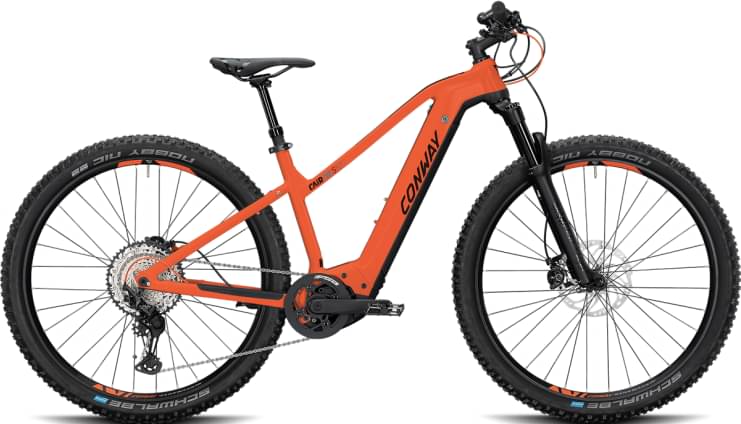

Conway Cairon S 827 Trapez 2020
2020 E-bike
Estimate price |
4,652$
Weight | 23.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox 35 Gold RL
-
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PT, Alu
Suspension Fork
ROCKSHOX "35 Gold RL", 120 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8100 Shadow Plus", 12-speed
Shift Levers
SHIMANO "Deore XT SL-M8100"
Cassette
SHIMANO "CS-M7100", 10-51 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-M8110" 15x110 mm Boost
Rear Hub
SHIMANO "FH-M8110 Micro Spline" 12x148 mm Boost
Rims
CONWAY Hohlkammer "X18", Disc
Tires
SCHWALBE "Nobby Nic" EVO, 65-584, faltbar
Brakes
Brakes
SHIMANO "front: BR-M8120; rear: BR-M8100", 203/180 mm
Cockpit
Handlebar
CONWAY Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378" Comfort
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH "Purion", 4-Stufen, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.61 mm | 1.53 mm | 1.49 mm | 1.42 mm |
| Stack | 613 mm | 613 mm | 622 mm | 622 mm |
| Reach | 381 mm | 400 mm | 417 mm | 437 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 420 mm | 460 mm | 500 mm |
| Head Tube Length | 67 mm | 67 mm | 67 mm | 67 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1118 mm | 1138 mm | 1159 mm | 1179 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
Cairon S 827 Trapez completes the Conway E Cairon model. There are 281 e-bikes that carry this model name. Take a sneak peek at all Conway E Cairon e-bikes models from 2020, by clicking here.
Model range prices
Conway Cairon T 200 SE Wave 400 2020 is the most economical model, with a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand costs 4565$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
Our math shows that the average cost of a dependable Trail e-bike is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
When Conway released this model in 2020, its price was 4246$. Comparing this to the average Trail e-bike price, we see that the price is 26.18% more expensive.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Conway Cairon S 827 Trapez it’s weighing 23.5 kg (51.81 lbs). At this weight, is slightly lighter than average. In other words, this model is 0.85% lighter than the average Trail e-bike.
Overview of components
Fork
This e-bike has the RockShox 35 Gold RL fork installed. The fork’s travel is 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Cairon S 827 Trapez are the 27.5″ aluminum type. These wheels will provide you with more control over the e-bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon S 827 Trapez has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Cairon S 827 Trapez comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
