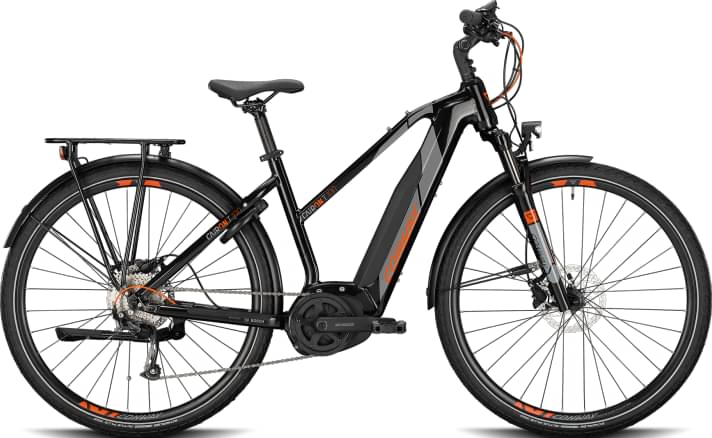

Conway Cairon T 100 500 Trapez 2021
2021 E-bike
Estimate price |
2,981$
Weight | 27.2 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset Altus, FSA -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH 36 V, 13,88 Ah, 500 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Trapez Intube Bosch, Alu
Suspension Fork
RST "Blaze T", 80 mm
Drivetrain
Rear Derailleur
SHIMANO "Altus RD-M2000", 9speed
Shift Levers
SHIMANO "Altus SL-M2000"
Cassette
SHIMANO "HG200", 11-36 Z.
Crank
FSA "CK-200", 170 mm
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "FH-TX505" QR
Rims
CONWAY "X6", Disc
Tires
SCHWALBE "Energizer Active Plus", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200" 180/180
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm
Motor & Battery
Motor
BOSCH Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH 36 V, 13,88 Ah, 500 Wh
Remote
BOSCH, "Intuvia " 4-Stufen
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.63 mm | 1.59 mm |
| Stack | 626 mm | 631 mm | 650 | 650 |
| Reach | 386 mm | 396 mm | 400 mm | 409 mm |
| Top Tube Length | 574 mm | 585 mm | 596 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 59 mm | 70 mm | 70 mm | 70 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1103 mm | 1107 mm | 1114 mm | 1125 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon T 100 500 Trapez belongs to the Conway E Cairon model. Conway released 281 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2021, here.
Model range prices
Conway Cairon T 100 400 2021 is the cheapest e-bike model and costs 2547$. Conway Cairon SUV FS 827 2021 is the most expensive one and costs 5414$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Touring e-bikes
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 2760$. Doing a quick comparison, we notice that Cairon T 100 500 Trapez price is 13.63% higher than the average cost of a Touring e-bike.
Average weight for Touring e-bikes
Touring e-bikes weigh an average of 25.55 kg (56.33 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 27.2 kg (59.97 lbs), the Cairon T 100 500 Trapez model is a bit heavier than average. In other words, this model is 6.46% heavier than the average Touring e-bike.
Overview of components
Fork
The RST is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it’s a great addition to the e-bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on Cairon T 100 500 Trapez are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon T 100 500 Trapez comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Cairon T 100 500 Trapez comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
