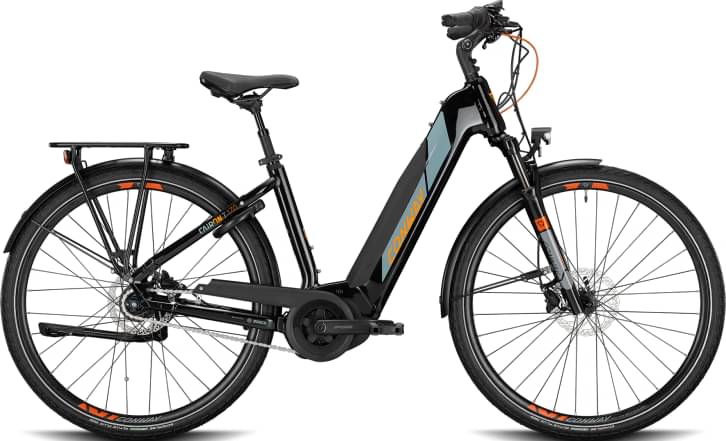

Conway Cairon T 170 500 2021
2021 E-bike
Estimate price |
2,981$
Weight | 28.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH 36 V, 13,88 Ah, 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Wave Bosch, Alu
Suspension Fork
RST "Blaze T", 80 mm
Drivetrain
Shift Levers
SHIMANO "Nexus"
Cassette
SHIMANO, 18 Z.
Crank
FSA "CK-200", 170 mm
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "Nexus" 7 Gg. LL
Rims
CONWAY "X6", Disc
Tires
SCHWALBE "Energizer Active Plus", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200" 180/180
Cockpit
Handlebar
HUMPERT "Ergotec Ladytown", Ø 31,8, 620 mm
Seat
Saddle
SELLE ROYAL "Vivo Moderat Ergo", Da
Seatpost
HUMPERT "Ergotec SP10"
Motor & Battery
Motor
BOSCH Gen.3 “Active Line PLUS”, 36 V, 250 W Nenn-Dauerleistung
Battery
BOSCH 36 V, 13,88 Ah, 500 Wh
Remote
BOSCH, "Intuvia " 4-Stufen
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.39 mm | 1.57 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 389 mm | 463 mm | 423 mm | 443 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 68 mm | 68 mm | 68 mm | 68 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1151 mm | 1171 mm | 1192 mm | 1212 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon T 170 500 completes the Conway E Cairon model. There are 281 e-bikes that carry this model name. You can easily view all of the Conway E Cairon e-bikes models from 2021, here.
Model range prices
Conway Cairon T 100 400 2021 is the cheapest e-bike model and costs 2547$. Conway Cairon SUV FS 827 2021 is the most expensive one and costs 5414$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Touring e-bikes
Our math shows that the average cost of a dependable Touring e-bike is 2429$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Conway Cairon T 170 500 price was 2760$. If we compare this with the average Touring e-bike cost we notice that the price is 13.63% higher.
Average weight for Touring e-bikes
Touring e-bikes have an average weight of 25.55 kg (56.33 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Cairon T 170 500 weighs 28.7 kg (63.27 lbs) and is considerably heavier than the average. In short, the average Touring e-bike weight is 12.33% lower than this one.
Cairon T 170 500 components
Fork
Conway Cairon T 170 500 2021 e-bike is equipped with the RST fork, and has mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Cairon T 170 500 has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Conway Cairon T 170 500 2021, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Conway Cairon T 170 500 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
