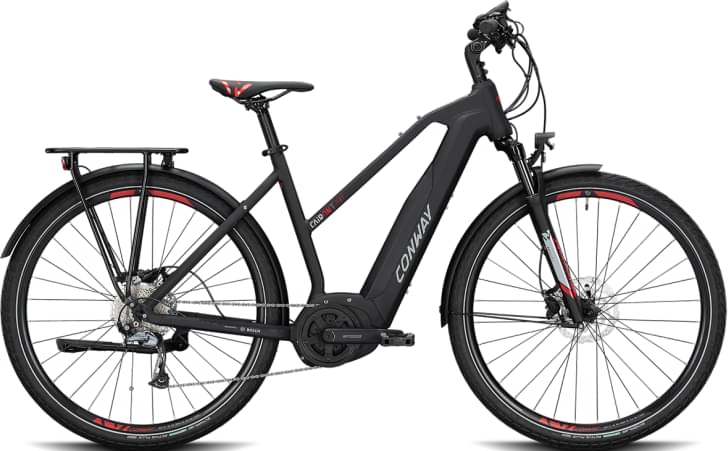

Conway Cairon T 200 SE 400 Trapez 2020
2020 E-bike
Estimate price |
2,558$
Weight | 26 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset Acera, Altus -
Suspension Hardtail -
Motor Bosch 250W 63Nm mid-drive -
Battery BOSCH Lithium-Ionen mit BMS, 36 V, 11,11 Ah, 400 Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PP, Alu
Suspension Fork
RST "Blaze T", 80 mm
Drivetrain
Rear Derailleur
SHIMANO "Acera RD-M3000", 9speed
Shift Levers
SHIMANO "Altus SL-M2000"
Cassette
SHIMANO "HG200", 11-36 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "FH-TX505" QR
Rims
CONWAY Hohlkammer "X6", Disc
Tires
SCHWALBE "Energizer Active Plus", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200", 180 mm
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3530 Comfort"
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Performance", 36 V, 250 W
Battery
BOSCH Lithium-Ionen mit BMS, 36 V, 11,11 Ah, 400 Wh
Remote
BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.61 mm | 1.63 mm | 1.58 mm |
| Stack | 620 mm | 622 mm | 643 mm | 643 mm |
| Reach | 373 mm | 387 mm | 395 mm | 408 mm |
| Top Tube Length | 562 mm | 577 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Length | 70 mm | 70.5 mm | 71 mm | 71 mm |
| Chainstay Length | 477 mm | 477 mm | 477 mm | 477 mm |
| Wheelbase | 1115 mm | 1124 mm | 1134 mm | 1149 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon T 200 SE 400 Trapez completes the Conway E Cairon model. 281 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Conway Cairon T 200 SE Wave 400 2020 is the cheapest e-bike model and costs 2335$. Conway Cairon T 800 Wave Enviolo 2020 is the most expensive one and costs 4565$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring e-bikes average price
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, this doesn’t mean that if you spend less money on a Touring e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When Conway released this model in 2020, its price was 2335$. Comparing the average cost of a Touring e-bike to this one, you will see that Cairon T 200 SE 400 Trapez price is 4.03% smaller.
Touring e-bikes average weight
The average weight for Touring e-bikes is 25.55 kg (56.33 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Cairon T 200 SE 400 Trapez weighs 26 kg (57.32 lbs) and is slightly heavier than the average. In short, the average Touring e-bike weight is 1.76% lower than this one.
Overview of components
Fork
This e-bike has the RST fork installed. The fork’s travel is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
Cairon T 200 SE 400 Trapez has a carbon fork, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When leaving the production line, the Cairon T 200 SE 400 Trapez model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Conway Cairon T 200 SE 400 Trapez has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
