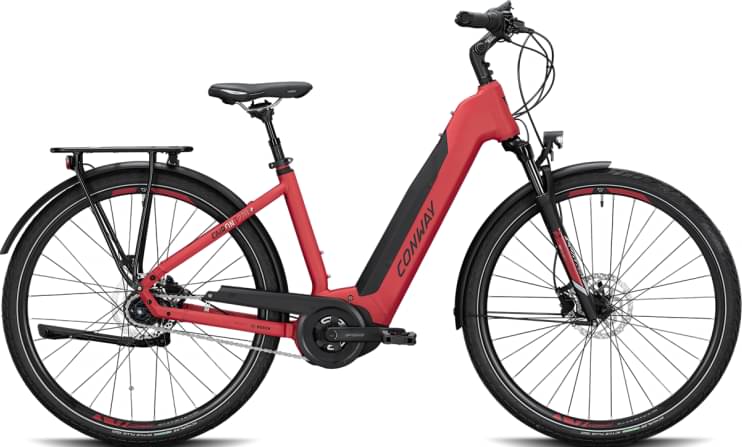

Conway Cairon T 270 SE Wave 400 2020
2020 E-bike
Estimate price |
2,558$
Weight | 27.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH Lithium-Ionen mit BMS, 36 V, 11,11 Ah, 400 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PP, Alu
Suspension Fork
RST "Blaze T", 80 mm
Drivetrain
Shift Levers
SHIMANO "Nexus"
Cassette
SHIMANO, 22 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "Nexus" 7-Gg. LL
Rims
CONWAY Hohlkammer "X6", Disc
Tires
SCHWALBE "Energizer Active Plus", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200", 180 mm
Cockpit
Handlebar
HUMPERT „Ergotec Ladytown“, Ø 31,8 mm, 620 mm
Seat
Saddle
SELLE ROYAL "Ariel"
Seatpost
HUMPERT "SP-10", Ø 27,2 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Active Line PLUS", 36 V, 250 W
Battery
BOSCH Lithium-Ionen mit BMS, 36 V, 11,11 Ah, 400 Wh
Remote
BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.39 mm | 1.57 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 389 mm | 463 mm | 423 mm | 443 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 68 mm | 68 mm | 68 mm | 68 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1151 mm | 1171 mm | 1192 mm | 1212 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon T 270 SE Wave 400 is part of the Conway E Cairon model. 281 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Conway Cairon T 200 SE Wave 400 2020 is the most economical model, with a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand costs 4565$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring e-bikes average price
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, even though the average price of a Touring e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Conway Cairon T 270 SE Wave 400 price was 2335$. If we compare this with the average Touring e-bike cost we notice that the price is 4.03% smaller.
Touring e-bikes average weight
The average weight for Touring e-bikes is 25.55 kg (56.33 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Cairon T 270 SE Wave 400 weighs 27.3 kg (60.19 lbs) and is a bit heavier than the average. In other words, this model is 6.85% heavier than the average Touring e-bike.
Cairon T 270 SE Wave 400 components
Fork
The fork installed on this bike is the RST model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the Cairon T 270 SE Wave 400 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Conway Cairon T 270 SE Wave 400 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
