Conway Cairon T 3.0 625 trapeze 2023
2023 E-bike
Estimate price |
4,357$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork RST BLADE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 625", 625 Wh, BES3, horizontal -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen.4, BES3, aluminium, trapeze, 41cm
Suspension Fork
RST suspension fork "Blade", 28", 100mm travel, tapered, post mount, thru axle, black

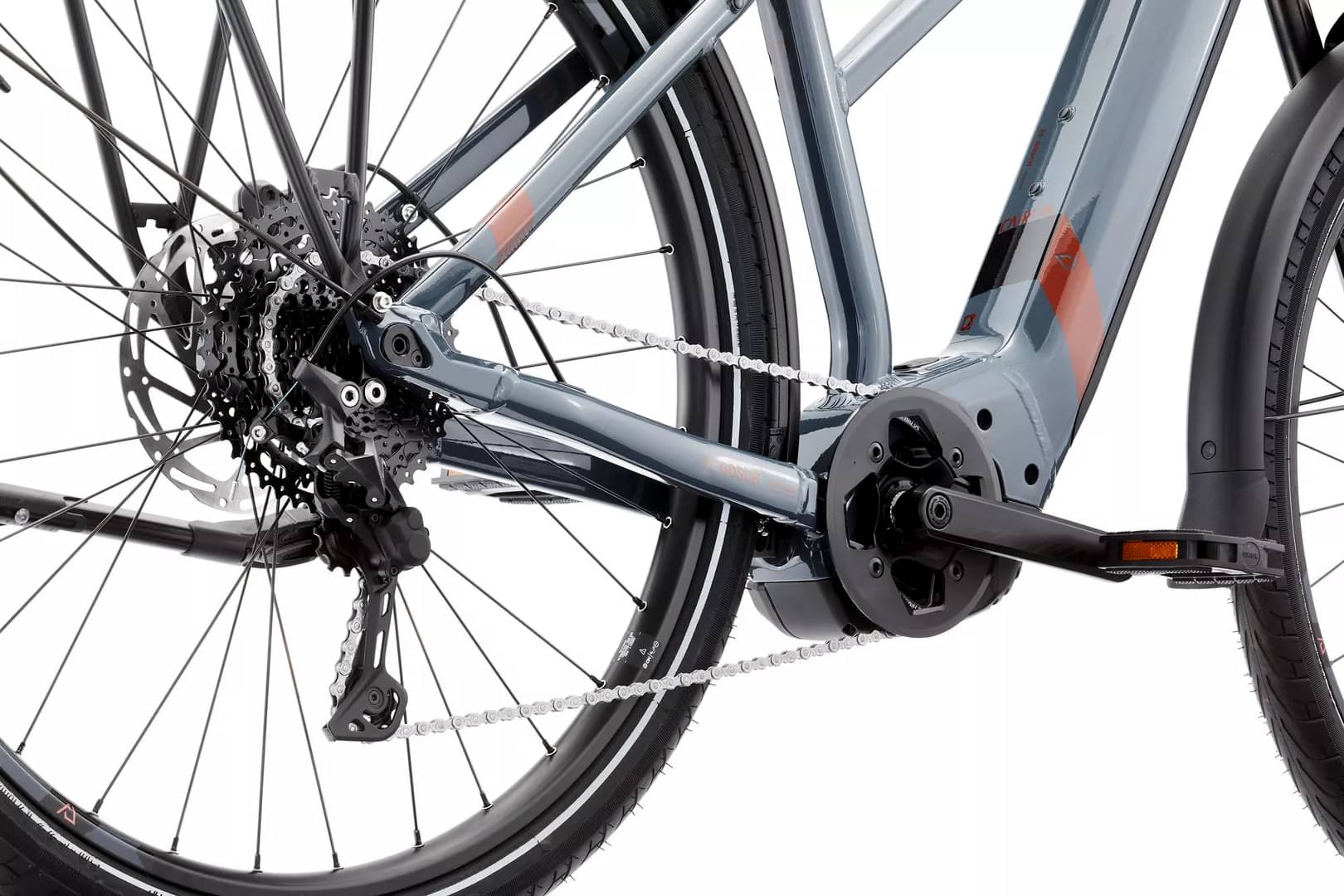

Drivetrain
Rear Derailleur
TEKTRO "RD-M350"
Shift Levers
TEKTRO "SL-M350R", 9-speed
Cassette
TEKTRO "CS-M350", 9-speed, 11-46 teeth
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Chain Guide
HESLING “Move”
Pedals
UNION "SP-827"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110mm, 6-hole, 32 holes, thru axle, black
Rear Hub
FORMULA "EHL-148S", 12 x 148mm, 6-hole, 11-speed HG, 32 holes, thru axle, black
Rims
MACH1 "MAXX", 25-622, 32 holes, disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
CONTINENTAL "Contact Cruiser", 50-622, reflex
Brakes
Brakes
hydraulic disc brake

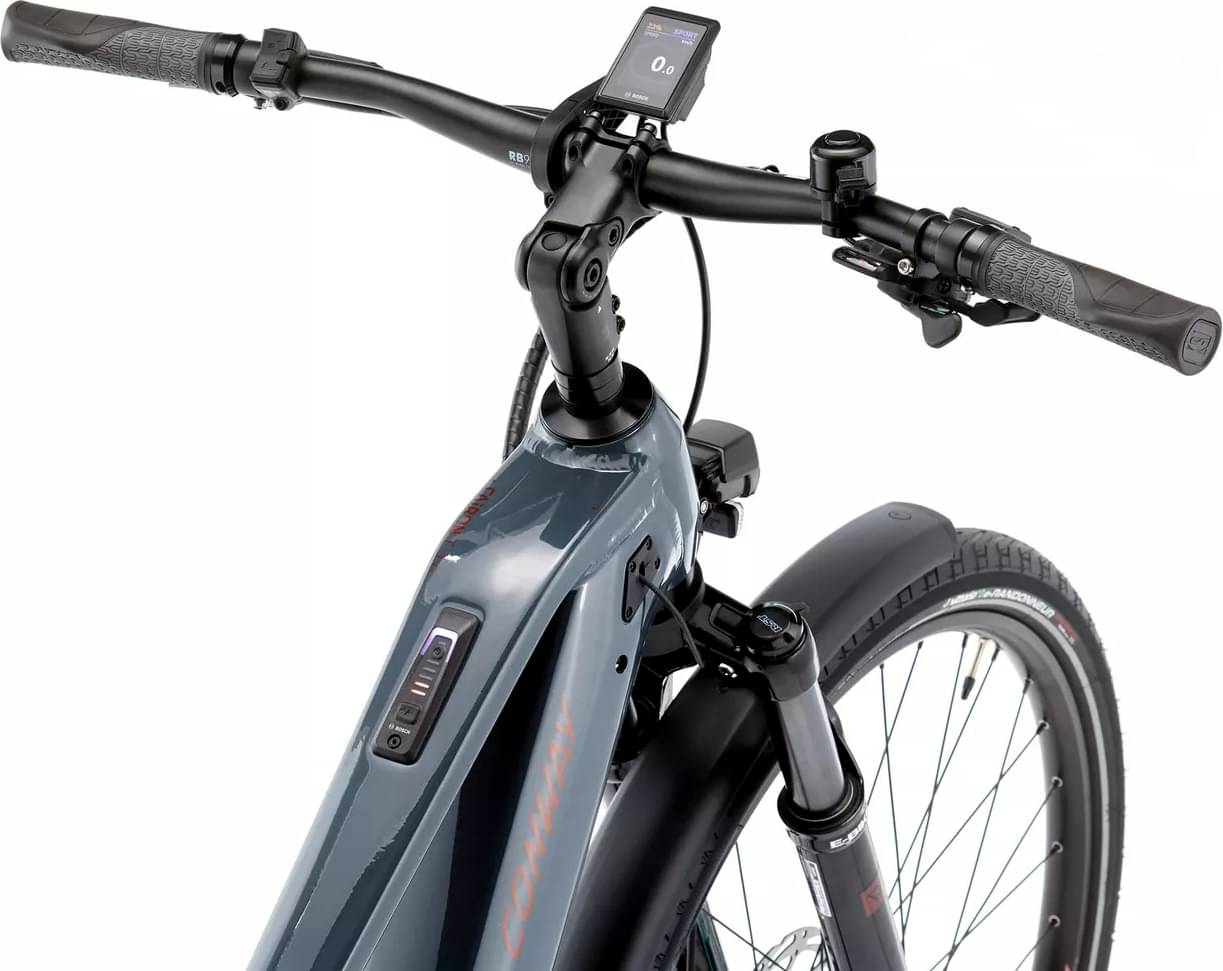

Cockpit
Stem
LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Comfort", 140mm, G-Link, black / grey
Headset
GLORY WHEEL ZS56/28,6 / EC56/40, 1 1/8" - 1,5", 20 mm stack
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", ladies
Seatpost
CONWAY, Ø 31,6mm, 350mm long, black
Motor & Battery

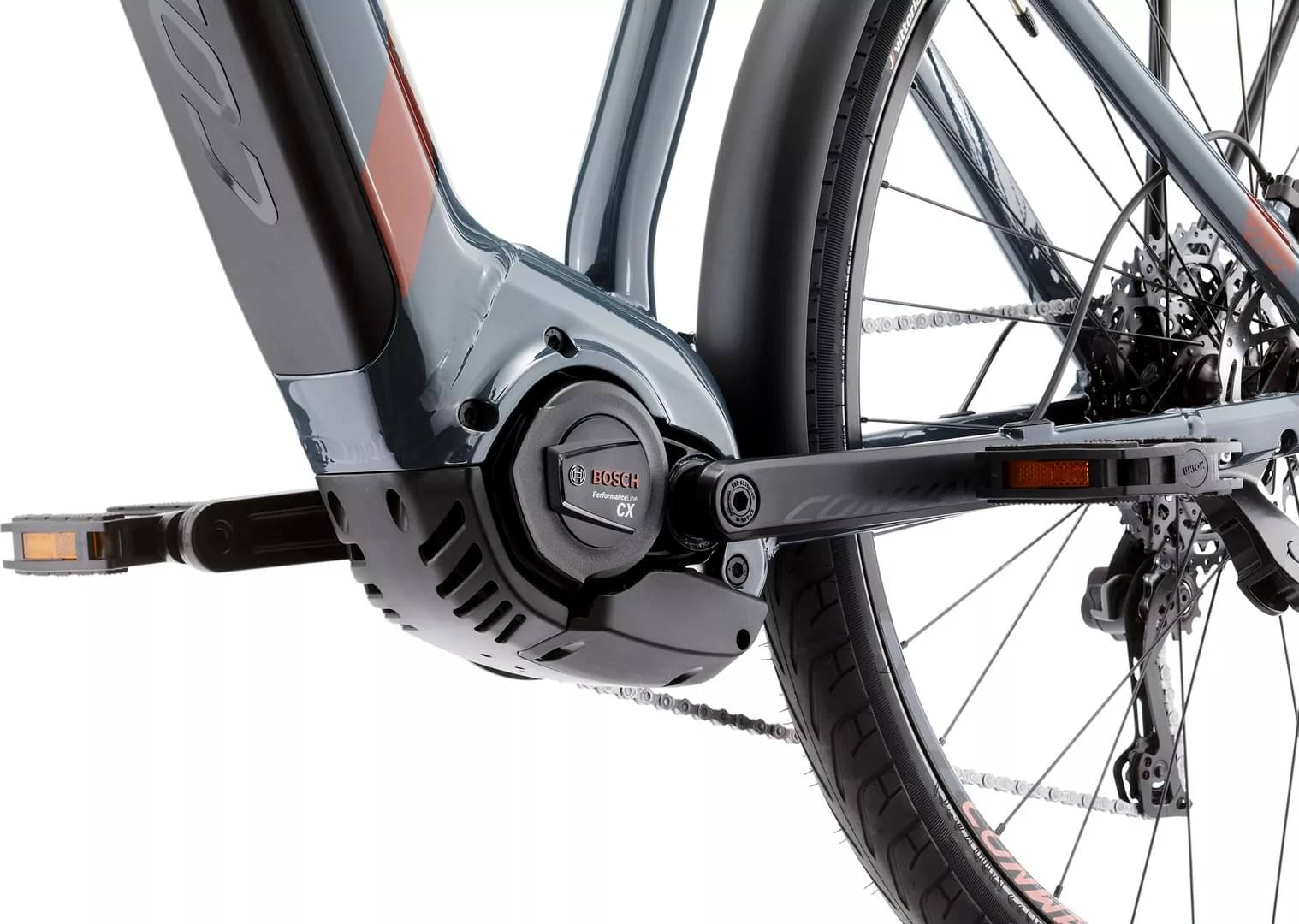

Motor
BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 625", 625 Wh, BES3, horizontal
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.53 mm | 1.49 mm | 1.41 mm |
| Stack | 640 mm | 642 mm | 651 mm | 651 mm |
| Reach | 402 mm | 419 mm | 438 mm | 461 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon T 3.0 625 trapeze belongs to the Conway E Cairon model. Conway released 351 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2023, here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the cheapest e-bike model and costs 2646$. Conway Cairon SUV FS 7.7 2023 is the most expensive one and costs 5823$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 4023$. If we compare this with the average Commuter e-bike cost we notice that the price is 56.6% more expensive.
Cairon T 3.0 625 trapeze components
Fork
This e-bike has the RST BLADE fork installed. The fork’s travel is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
As for the wheels, Conway Cairon T 3.0 625 trapeze 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon T 3.0 625 trapeze comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Cairon T 3.0 625 trapeze comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
