Conway Cairon T 3.0 750 diamond 2023
2023 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork RST BLADE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 750", 750 Wh, BES3, horizontal -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen.4, BES3, aluminium, diamond, 41cm
Suspension Fork
RST suspension fork "Blade", 28", 100mm travel, tapered, post mount, thru axle, black

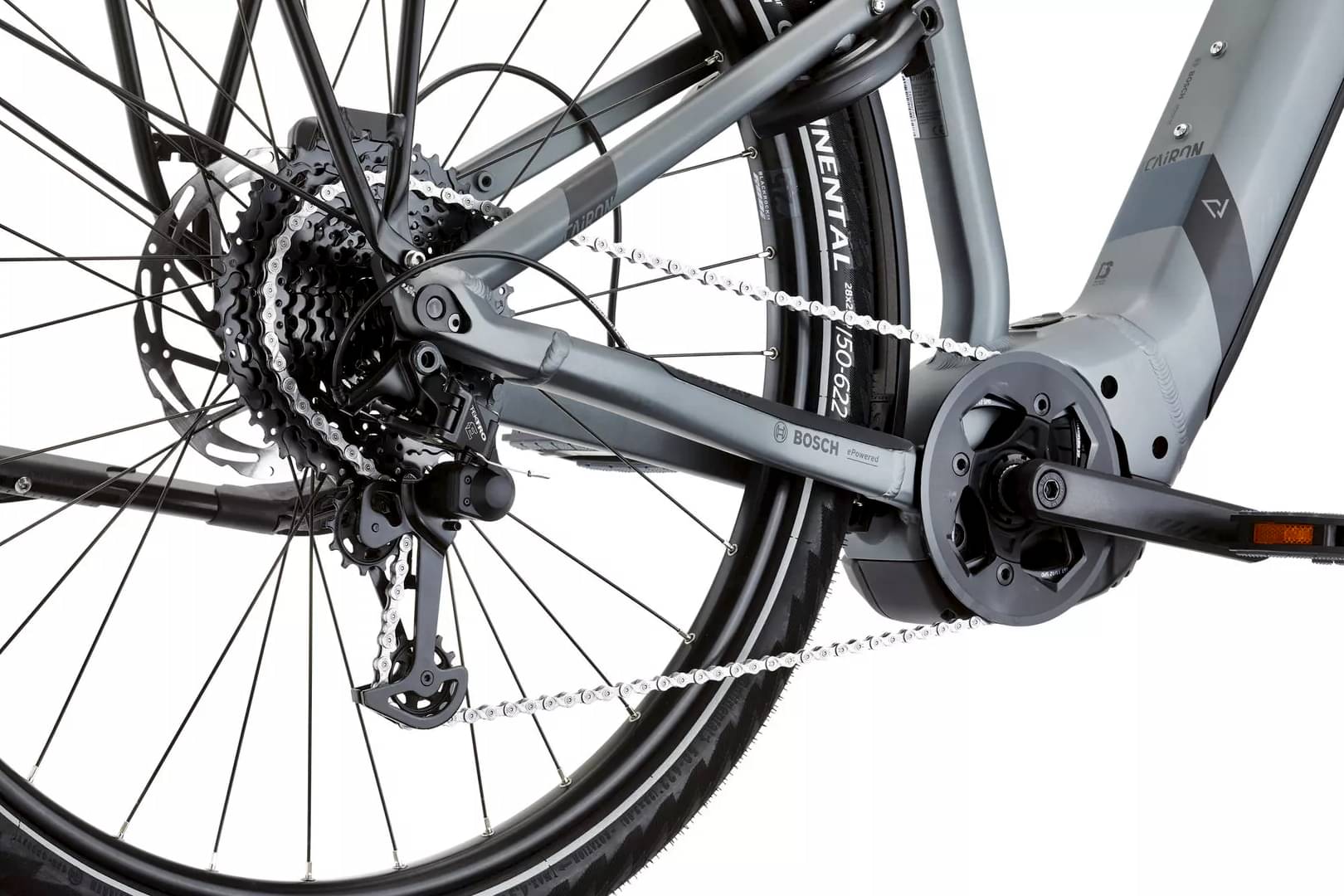

Drivetrain
Rear Derailleur
TEKTRO "RD-M350"
Shift Levers
TEKTRO "SL-M350R", 9-speed
Cassette
TEKTRO "CS-M350", 9-speed, 11-46 teeth, HG
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Chain Guide
HESLING “Move”
Pedals
UNION "SP-827"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110mm, 6-hole, 32 holes, thru axle, black
Rear Hub
FORMULA "EHL-148S", 12 x 148mm, 6-hole, 11-speed HG, 32 holes, thru axle, black
Rims
RODI "Blackrock 25", 25-622, 32 holes disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
CONTINENTAL "Contact Cruiser", 50-622, reflex
Brakes
Brakes
hydraulic disc brake

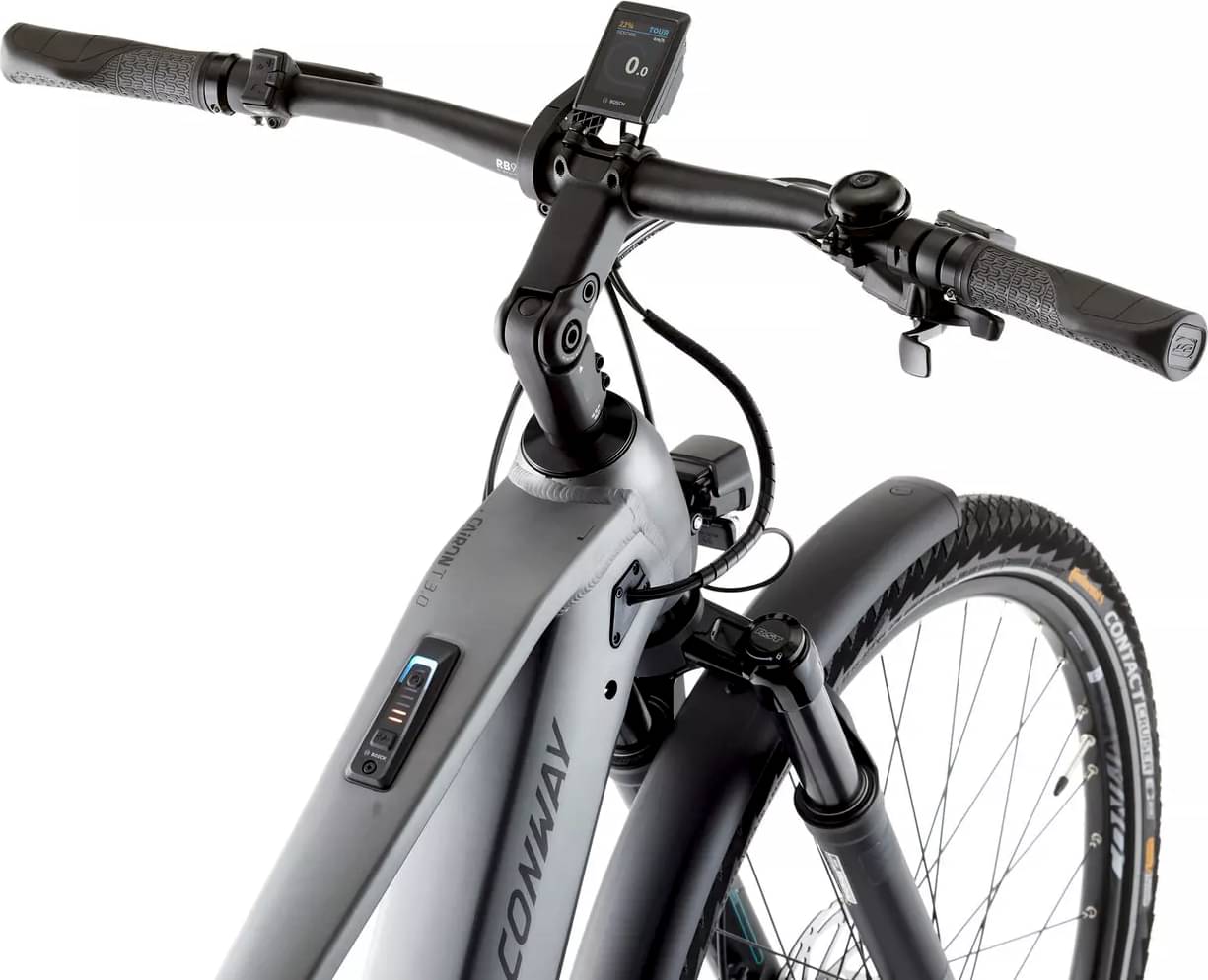

Cockpit
Stem
LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
Handlebar
LEVELNINE "Low Riser", 720mm, Ø 31,8mm, backsweep 9°, upsweep 5°, black
Grips
CONTEC "MERGE Mountain Comfort", 140mm, G-Link, black / grey
Headset
GLORY WHEEL "SIT3 Strummer", ZS56/28,6 / ZS56/40, 20mm stack, ACB bearing
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", gents
Seatpost
ERGOTEC "SP-10.0", aluminium, Ø 31,6mm, 350mm long, 45mm travel, black
Motor & Battery
Motor

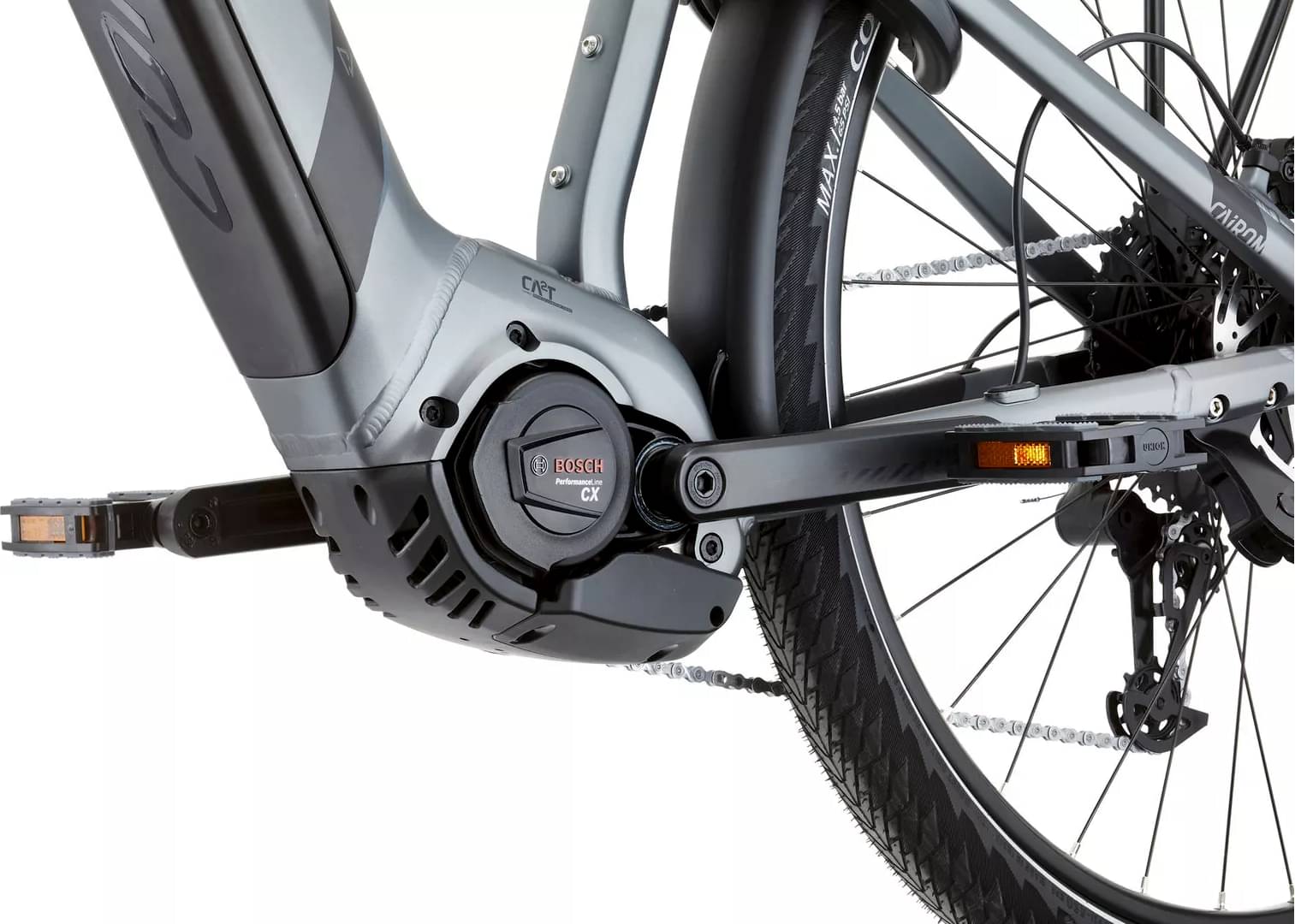

BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 750", 750 Wh, BES3, horizontal
Remote
BOSCH "BRC3300", mini remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.53 mm | 1.49 mm | 1.41 mm | 1.38 mm |
| Stack | 642 mm | 642 mm | 651 mm | 651 mm | 660 mm |
| Reach | 396 mm | 419 mm | 438 mm | 461 mm | 480 mm |
| Top Tube Length | 578 mm | 593 mm | 613 mm | 633 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 410 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 130 mm | 140 mm |
| Chainstay Length | 448 mm | 448 mm | 448 mm | 448 mm | 448 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
Cairon T 3.0 750 diamond is part of the Conway E Cairon model. Conway released 351 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the most affordable e-bike of this model and has a price of 2646$. On the other hand, Conway Cairon SUV FS 7.7 2023, is the most expensive and costs 5823$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4235$. Comparing the average cost of a Commuter e-bike to this one, you will see that Cairon T 3.0 750 diamond price is 64.85% higher.
Cairon T 3.0 750 diamond components
Fork
The RST BLADE is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Cairon T 3.0 750 diamond are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon T 3.0 750 diamond has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Dropper post
Conway Cairon T 3.0 750 diamond comes with a dropper post. Therefore, climbing or descending will be a breeze.
