Conway Cairon T 3.0 750 wave 2023
2023 E-bike
Estimate price |
4,587$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 100mm -
Fork RST BLADE
-
Groupset Tektro EDRIVE 9 -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "PowerTube 750", 750 Wh, BES3, horizontal -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Intube Bosch, Gen.4, BES3, aluminium, wave, 42cm
Suspension Fork
RST suspension fork "Blade", 28", 100mm travel, tapered, post mount, thru axle, black
Drivetrain
Rear Derailleur
TEKTRO "RD-M350"
Shift Levers
TEKTRO "SL-M350R", 9-speed
Cassette
TEKTRO "CS-M350", 9-speed, 11-46 teeth, HG
Crank
MIRANDA "Classic", 165mm, for Bosch Gen.4, ISIS, black
Bottom Bracket
Bosch, press-fit
Chain Guide
HESLING “Move”, plastic, black, 38 teeth
Pedals
UNION "SP-827"
Wheels
Front Hub
FORMULA "DC 511", 15 x 110mm, 6-hole, 32 holes, thru axle, black
Rear Hub
FORMULA "EHL-148S", 12 x 148mm, 6-hole, 11-speed HG, 32 holes, thru axle, black
Rims
RODI "Blackrock 25", 25-622, 32 holes disc brake, easy eyelets, black
Spokes
Niro schwarz
Tires
CONTINENTAL "Contact Cruiser", 50-622, reflex
Brakes
Brakes
hydraulic disc brake
Cockpit
Stem
LEVELNINE "Adjustable", 1 1/8", 31,8mm handlebar clamp, 65mm long, black
Handlebar
LEVELNINE "Trekking", 660mm, Ø 31,8mm, black
Grips
CONTEC "MERGE Mountain Comfort", 140mm, G-Link, black / grey
Headset
GLORY WHEEL "SIT3 Strummer", ZS56/28,6 / ZS56/40, 20mm stack, ACB bearing
Seat
Saddle
SELLE ROYAL "Vivo Moderate Ergo", ladies
Seatpost
ERGOTEC "SP-10.0", aluminium, Ø 31,6mm, 350mm long, 45mm travel, black
Motor & Battery
Motor

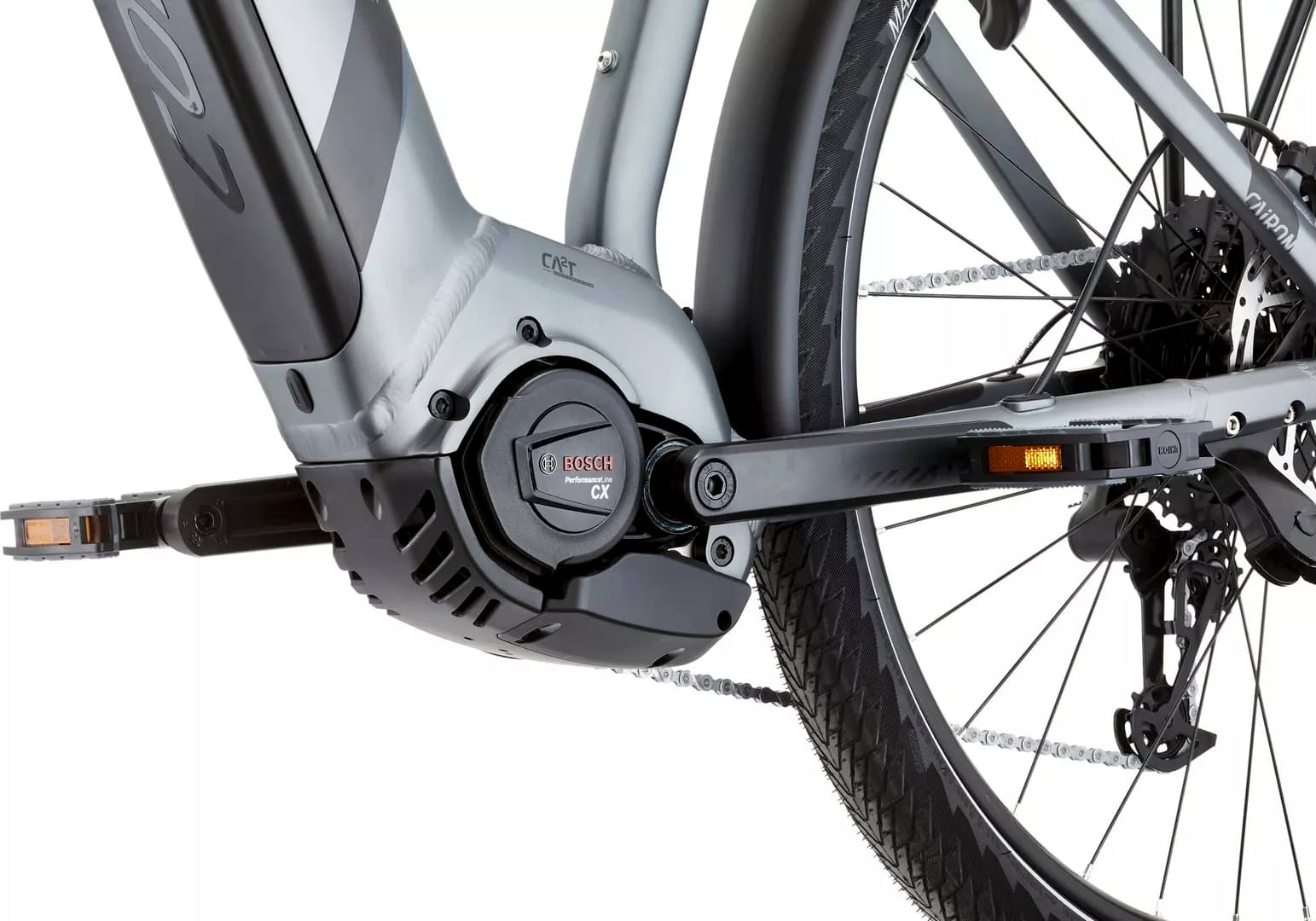

BOSCH "Performance Line CX" Gen. 4, BES3
Battery
BOSCH "PowerTube 750", 750 Wh, BES3, horizontal
Remote
BOSCH "BRC3600", LED remote
Charger
BOSCH 4 A, BES3
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.62 mm | 1.58 mm | 1.51 mm |
| Stack | 674 mm | 678 mm | 688 mm | 688 mm |
| Reach | 399 mm | 418 mm | 435 mm | 455 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 165 mm | 150 mm | 160 mm | 160 mm |
| Chainstay Length | 458 mm | 458 mm | 458 mm | 458 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon T 3.0 750 wave is part of the Conway E Cairon model. 351 e-bikes variations carry this model name so far. Take a sneak peek at all Conway E Cairon e-bikes models from 2023, by clicking here.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the cheapest e-bike model and costs 2646$. Conway Cairon SUV FS 7.7 2023 is the most expensive one and costs 5823$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 4235$. Comparing the average cost of a Commuter e-bike to this one, you will see that Cairon T 3.0 750 wave price is 64.85% more expensive.
Cairon T 3.0 750 wave components
Fork
The fork installed on this bike is the RST BLADE model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Cairon T 3.0 750 wave 2023 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
Conway Cairon T 3.0 750 wave e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Cairon T 3.0 750 wave. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
