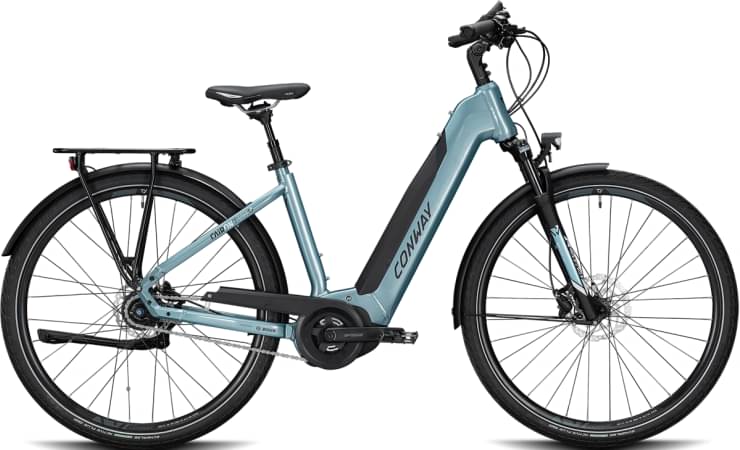

Conway Cairon T 380 Wave RBN 2020
2020 E-bike
Estimate price |
3,096$
Weight | 27.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PP, Alu
Suspension Fork
RST "Blaze MLO", 80 mm
Drivetrain
Shift Levers
SHIMANO "Nexus"
Cassette
SHIMANO, 22 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "Nexus" 8 Gg. LL
Rims
CONWAY Hohlkammer "X6", Disc
Tires
SCHWALBE "Energizer Active Plus", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200", 180 mm + RBN
Cockpit
Handlebar
HUMPERT „Ergotec Ladytown“, Ø 31,8 mm, 620 mm
Seat
Saddle
SELLE ROYAL "Ariel"
Seatpost
HUMPERT "SP-10", Ø 27,2 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Active Line PLUS", 36 V, 250 W
Battery
BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh
Remote
BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.39 mm | 1.57 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 389 mm | 463 mm | 423 mm | 443 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 68 mm | 68 mm | 68 mm | 68 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1151 mm | 1171 mm | 1192 mm | 1212 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon T 380 Wave RBN is part of the Conway E Cairon model. 281 e-bikes variations carry this model name so far. You can easily view all of the Conway E Cairon e-bikes models from 2020, here.
Model range prices
The most economical model, the Conway Cairon T 200 SE Wave 400 2020 has a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand is the most expensive at 4565$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring e-bikes average price
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2020 and its price was 2866$. In conclusion, this e-bike price is 17.99% higher than the price of the average Touring e-bike.
Average weight for Touring e-bikes
The average weight for Touring e-bikes is 25.55 kg (56.33 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 27.9 kg (61.51 lbs), the Cairon T 380 Wave RBN model is a bit heavier than average. In short, the average Touring e-bike weight is 9.2% lower than this one.
Overview of components
Fork
The Cairon T 380 Wave RBN comes factory-installed with the RST fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the Cairon T 380 Wave RBN model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
