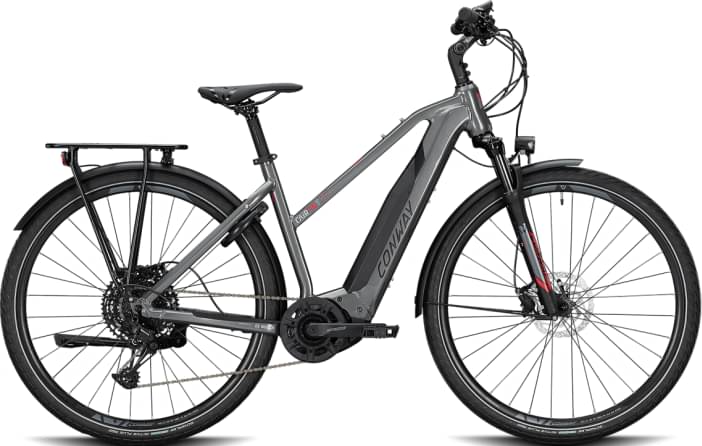

Conway Cairon T 400 Trapez 2020
2020 E-bike
Estimate price |
3,554$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset SX Eagle, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PP, Alu
Suspension Fork
RST "Aerial Air TnL", 80 mm
Drivetrain
Rear Derailleur
SRAM "SX Eagle", 12-speed
Shift Levers
SRAM "SX Eagle Trigger" single click
Cassette
SRAM "PG 1210 Eagle", 11-50 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-M3050" QR
Rear Hub
SHIMANO "FH-M3050" QR
Rims
CONWAY Hohlkammer "X6", Disc
Tires
SCHWALBE "Energizer Active Plus", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200", 180 mm
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378 Comfort"
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH Lithium-Ionen mit BMS, 36 V, 13,88 Ah, 500 Wh
Remote
BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.63 mm | 1.59 mm |
| Stack | 626 mm | 631 mm | 650 | 650 |
| Reach | 386 mm | 396 mm | 400 mm | 409 mm |
| Top Tube Length | 574 mm | 585 mm | 596 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 59 mm | 70 mm | 70 mm | 70 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1103 mm | 1107 mm | 1114 mm | 1125 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon T 400 Trapez completes the Conway E Cairon model. Conway launched 281 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Conway Cairon T 200 SE Wave 400 2020 is the most economical model, with a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand costs 4565$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Touring e-bikes
According to our calculations, the average cost of a Touring e-bike that is reliable is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When Conway released this model in 2020, its price was 3290$. If we compare this with the average Touring e-bike cost we notice that the price is 35.45% higher.
Average weight for Touring e-bikes
Touring e-bikes have an average weight of 25.55 kg (56.33 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 25.9 kg (57.1 lbs), Conway e-bike is slightly heavier than average. In conclusion, the average Touring e-bike weighs 1.37% less than Cairon T 400 Trapez.
Cairon T 400 Trapez components
Fork
This e-bike has the RST fork installed. The fork’s travel is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Fork material
When it comes to the fork, this e-bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the Cairon T 400 Trapez e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The Cairon T 400 Trapez has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Cairon T 400 Trapez comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
