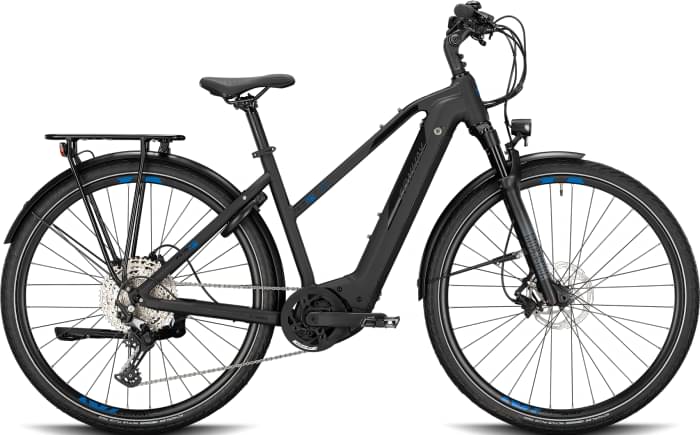

Conway Cairon T 500 Trapez 2021
2021 E-bike
Estimate price |
4,357$
Weight | 26.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RockShox Recon Silver RL -
Groupset Deore, FSA -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PT 36 V, 16,66 Ah, 625 Wh -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Trapez Intube Bosch, Alu
Suspension Fork
ROCKSHOX "Recon Silver RL", 80 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore RD-M6100 Shadow Plus", 12speed
Shift Levers
SHIMANO "Deore SL-M6100"
Cassette
SHIMANO "CS-M6100", 10-51 Z.
Crank
FSA "CK-745", 170 mm
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-MT400", 15x110mm
Rear Hub
SHIMANO "FH-MT401", QR
Rims
CONWAY "X6", Disc
Tires
SCHWALBE "Energizer Active Plus", 50-622, Reflex
Brakes
Brakes
TEKTRO "HD-T390" 180/180
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Seat
Saddle
SELLE ROYAL "Vivo Athletic Ergo", Da
Seatpost
CONWAY Patent, 31,6 mm
Motor & Battery
Motor
BOSCH Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH, "Kiox", 4-Stufen
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.63 mm | 1.59 mm |
| Stack | 626 mm | 631 mm | 650 | 650 |
| Reach | 386 mm | 396 mm | 400 mm | 409 mm |
| Top Tube Length | 574 mm | 585 mm | 596 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 59 mm | 70 mm | 70 mm | 70 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1103 mm | 1107 mm | 1114 mm | 1125 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon T 500 Trapez completes the Conway E Cairon model. Conway released 281 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2021, here.
Model range prices
Conway Cairon T 100 400 2021 is the cheapest e-bike model and costs 2547$. Conway Cairon SUV FS 827 2021 is the most expensive one and costs 5414$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Touring e-bikes
If you want to purchase a solid Touring e-bike, it is important to know that the average cost is 2429$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Touring e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 4034$. In conclusion, this e-bike price is 66.08% more expensive than the price of the average Touring e-bike.
Touring e-bikes average weight
On a deeper look, we notice that the average weight of a Touring e-bike is 25.55 kg (56.33 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 26.7 kg (58.86 lbs), the Cairon T 500 Trapez model is slightly heavier than average. In short, the average Touring e-bike weight is 4.5% lower than this one.
Overview of components
Fork
The Cairon T 500 Trapez comes factory-installed with the RockShox Recon Silver RL fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the Cairon T 500 Trapez e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Conway Cairon T 500 Trapez e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
