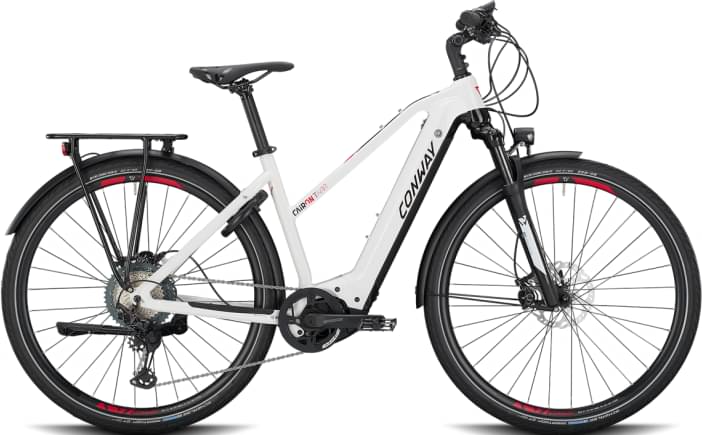

Conway Cairon T 600 Trapez 2020
2020 E-bike
Estimate price |
4,472$
Weight | 26.3 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Fork RST -
Groupset XT, FSA -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Cairon Bosch PT, Alu
Suspension Fork
RST "Aerial Air TnL", 80 mm
Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8100 Shadow Plus", 12-speed
Shift Levers
SHIMANO "Deore XT SL-M8100"
Cassette
SHIMANO "CS-M7100", 10-51 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
SHIMANO "HB-M8000" QR
Rear Hub
SHIMANO "FH-MT500" Micro Spline QR
Rims
CONWAY Hohlkammer "X6", Disc
Tires
SCHWALBE "Marathon GT", 50-622, Reflex
Brakes
Brakes
SHIMANO "XT BR-M8100", 180 mm
Cockpit
Handlebar
HUMPERT "Ergotec" Low Riser, Ø 31,8, 720 mm
Seat
Saddle
CONWAY "3378 Comfort"
Seatpost
CONWAY Patent, Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH, "Intuvia " 4-Stufen, Remote Control, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.62 mm | 1.59 mm | 1.63 mm | 1.59 mm |
| Stack | 626 mm | 631 mm | 650 | 650 |
| Reach | 386 mm | 396 mm | 400 mm | 409 mm |
| Top Tube Length | 574 mm | 585 mm | 596 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Length | 59 mm | 70 mm | 70 mm | 70 mm |
| Chainstay Length | 453 mm | 453 mm | 453 mm | 453 mm |
| Wheelbase | 1103 mm | 1107 mm | 1114 mm | 1125 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon T 600 Trapez completes the Conway E Cairon model. Conway released 281 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2020, here.
Model range prices
Conway Cairon T 200 SE Wave 400 2020 is the most economical model, with a starting price of 2335$. Conway Cairon T 800 Wave Enviolo 2020 on the other hand costs 4565$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Touring e-bikes
According to our math, the average price for a trustworthy Touring e-bike is 2429$. However, you could also get a good Touring e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 4140$. Doing a quick comparison, we notice that Cairon T 600 Trapez price is 70.44% more expensive than the average cost of a Touring e-bike.
Average weight for Touring e-bikes
On a deeper look, we notice that the average weight of a Touring e-bike is 25.55 kg (56.33 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 26.3 kg (57.98 lbs), the Cairon T 600 Trapez model is slightly heavier than average. In conclusion, the average Touring e-bike weighs 2.94% less than Cairon T 600 Trapez.
Cairon T 600 Trapez components
Fork
The RST is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
Cairon T 600 Trapez has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the Cairon T 600 Trapez model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Conway Cairon T 600 Trapez is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
