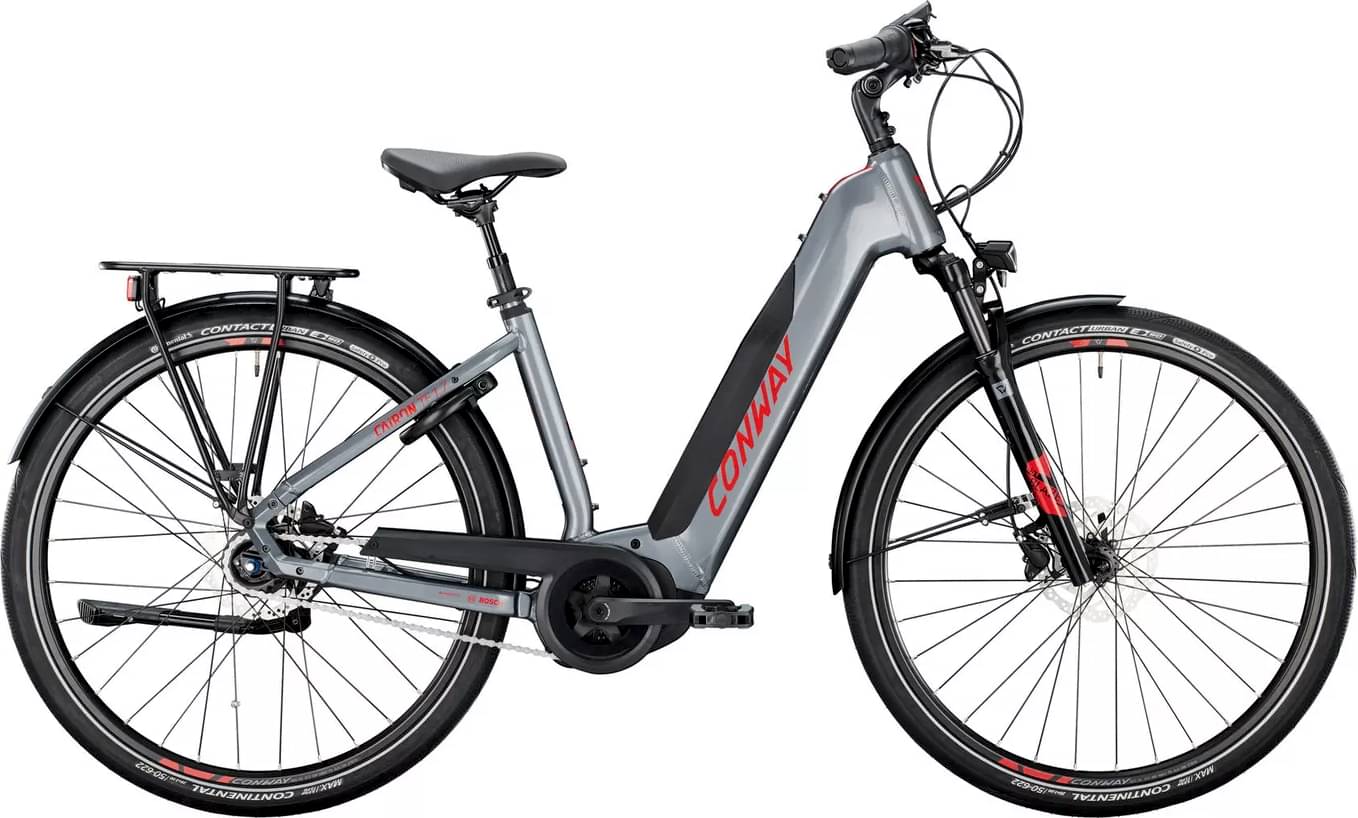

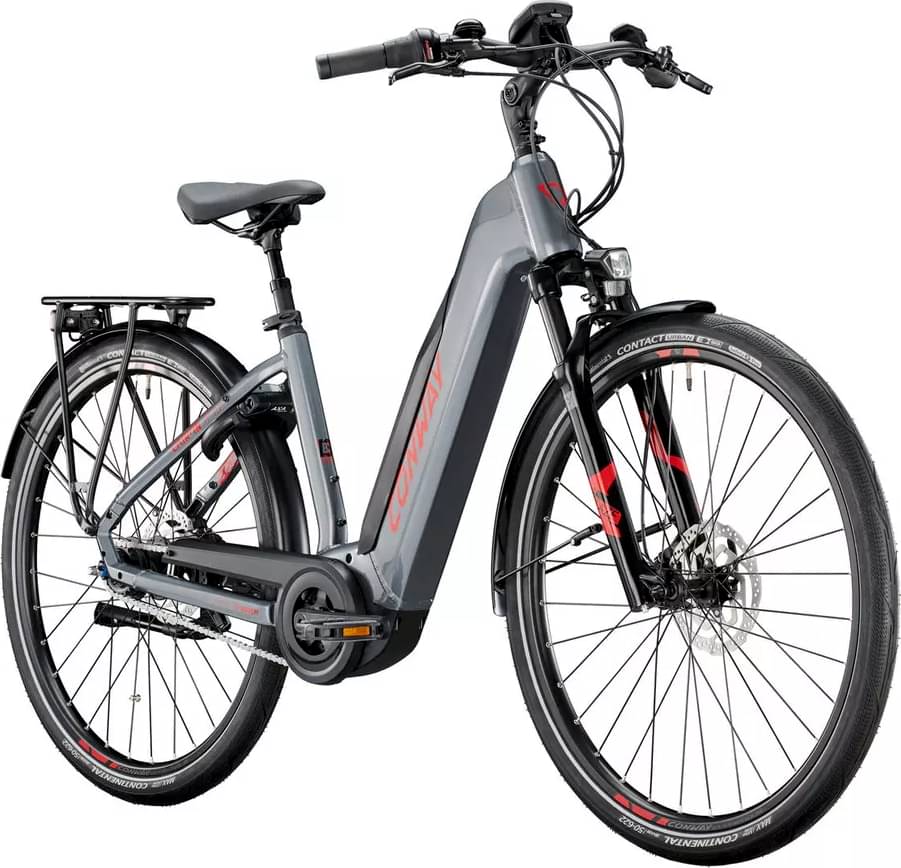

Conway Cairon TF 1.7 ladies, wave 2023
2023 E-bike
Estimate price |
2,866$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork RST BLAZE
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Wave Bosch, Alu
Suspension Fork
RST "Blaze T", 80 mm
Drivetrain
Shift Levers
SHIMANO "Nexus SL-C3000"
Cassette
SHIMANO, 18 Z.
Crank
FSA "CK-200", 170 mm
Bottom Bracket
BOSCH
Chain Guide
HESLING Move
Pedals
Marwie "SP 827"
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "Nexus SG-C3001" 7-Gg. LL
Rims
CONWAY Hohlkammer "X17", Disc
Spokes
Niro
Tires
CONTINENTAL "Contact Urban", 50-622, Reflex
Brakes
Brakes
SHIMANO "BR-MT200"
Brake Levers
SHIMANO "BL-MT200"
Cockpit
Stem
HUMPERT "Ergotec Octopus", Adjustable, 90 mm
Handlebar
HUMPERT "Ergotec Ladytown", Ø 31,8, 620 mm
Grips
HERRMANS "DD37"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Moderat Ergo", Da
Seatpost
HUMPERT "Ergotec SP10", 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Active Line PLUS", 36 V, 250 W Nenn-Dauerleistung
Battery
BOSCH "Powerpack 400", Lithium-Ionen mit BMS, 400 Wh
Charger
Bosch 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.57 mm | 1.57 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 389 mm | 409 mm | 423 mm | 443 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 170 mm | 170 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon TF 1.7 ladies, wave completes the Conway E Cairon model. Conway released 281 e-bikes variations of this model so far. You can easily view all of the Conway E Cairon e-bikes models from 2023, here.
Model range prices
Conway Cairon TF 1.7 ladies, wave 2023 is the most economical model, with a starting price of 2653$. Conway Cairon SUV FS 7.7 2023 on the other hand costs 5839$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry e-bikes
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
At the moment of the release date, Conway Cairon TF 1.7 ladies, wave price was 2653$. Doing a quick comparison, we notice that Cairon TF 1.7 ladies, wave price is 8.15% more expensive than the average cost of a Crosscountry e-bike.
Overview of components
Fork
This e-bike has the RST BLAZE fork installed. The fork’s travel is 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The wheels on Cairon TF 1.7 ladies, wave are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Conway Cairon TF 1.7 ladies, wave has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
