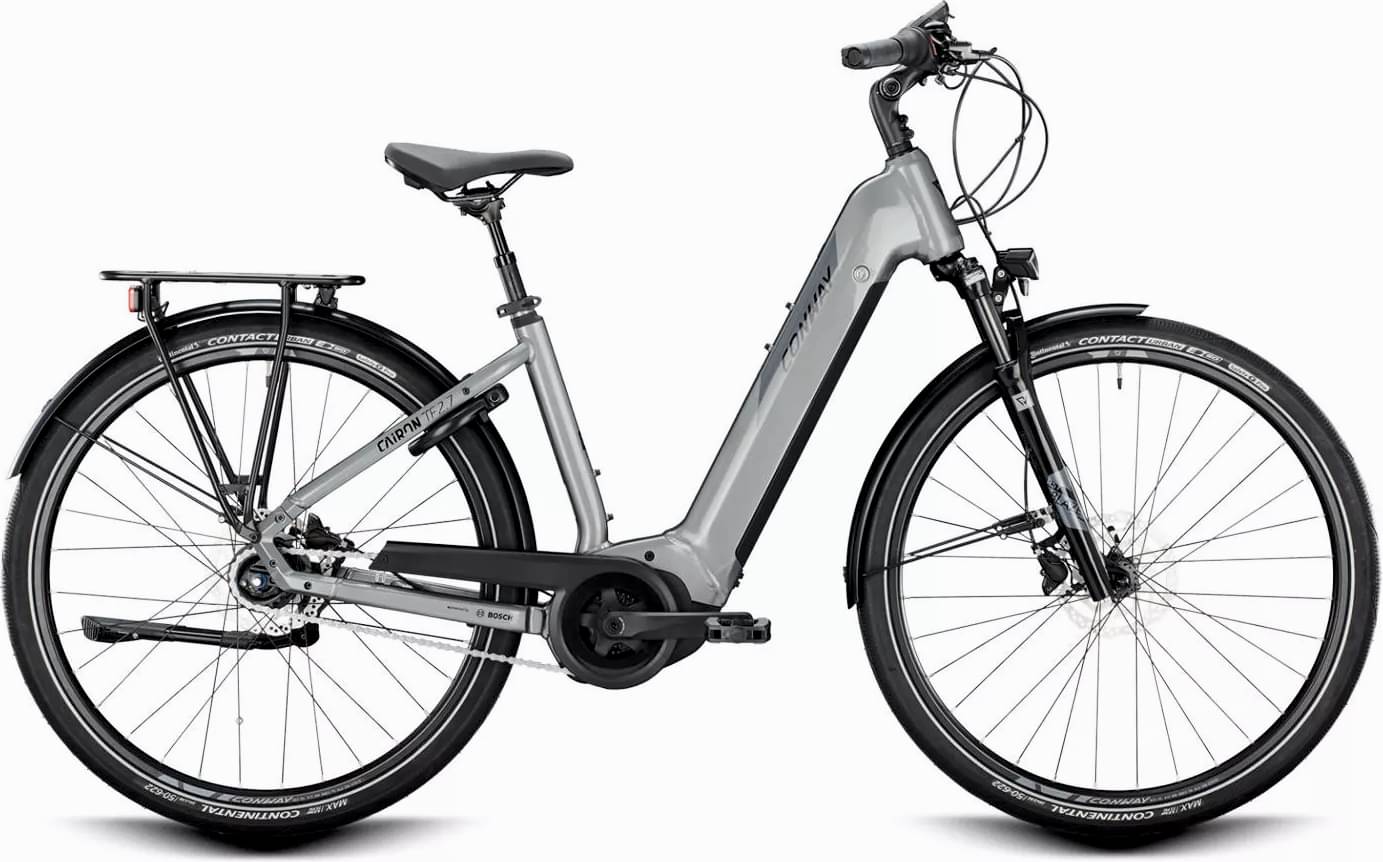

Conway Cairon TF 2.7 500 wave 2023
2023 E-bike
Estimate price |
3,268$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork RST BLAZE
-
Groupset Nexus, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH "Powertube 500", Lithium-Ionen mit BMS, 500 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Blaze ML", 80 mm
Drivetrain
Shift Levers
SHIMANO "Nexus SL-C3000"
Cassette
SHIMANO, 18 Z.
Crank
FSA "CK-200", 170 mm
Bottom Bracket
BOSCH
Chain Guide
HESLING “Move”
Pedals
Marwie "SP 827"
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "Nexus SG-C3001" 7-Gg. LL
Rims
CONWAY Hohlkammer "X17", Disc
Spokes
Niro
Tires
CONTINENTAL "Contact Urban", 50-622, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"
Cockpit
Stem
HUMPERT "Ergotec Octopus", Adjustable, 90 mm
Handlebar
HUMPERT "Ergotec Ladytown", Ø 31,8, 620 mm
Grips
HERRMANS "DD37"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Moderat Ergo", Da
Seatpost
HUMPERT "Ergotec SP10", 350 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.3 "Active Line PLUS", 36 V, 250 W Nenn-Dauerleistung
Battery
BOSCH "Powertube 500", Lithium-Ionen mit BMS, 500 Wh
Charger
Bosch 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.57 mm | 1.57 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 389 mm | 409 mm | 423 mm | 443 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 170 mm | 170 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Cairon TF 2.7 500 wave completes the Conway E Cairon model. There are 351 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Conway Cairon TF 1.7 wave 2023 is the cheapest e-bike model and costs 2646$. Conway Cairon SUV FS 7.7 2023 is the most expensive one and costs 5823$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Commuter e-bikes average price
According to our calculations, the average cost of a Commuter e-bike that is reliable is 2569$. However, this doesn’t mean that if you spend less money on a Commuter e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 3017$. Comparing this to the average Commuter e-bike price, we see that the price is 17.44% higher.
Overview of components
Fork
This e-bike has the RST BLAZE fork installed. The fork’s travel is 80mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Cairon TF 2.7 500 wave are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Conway Cairon TF 2.7 500 wave is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
