Conway Cairon TF 3.8 wave 2023
2023 E-bike
Estimate price |
3,898$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 80mm -
Fork RST BLAZE
-
Groupset Alfine, FSA -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Intube Bosch, Alu
Suspension Fork
RST "Blaze ML", 80 mm
Drivetrain
Shift Levers
SHIMANO "Alfine SL-S503"
Cassette
SHIMANO, 18 Z.
Crank
FSA "CK-200", 170 mm
Bottom Bracket
BOSCH
Chain Guide
HESLING “Move”
Pedals
Marwie "SP 827"
Wheels
Front Hub
SHIMANO "HB-TX505" QR
Rear Hub
SHIMANO "Nexus SG-C6001", 8-Gg, LL
Rims
CONWAY Hohlkammer "X17", Disc
Spokes
Niro
Tires
CONTINENTAL "Contact Urban", 50-622, Reflex
Brakes
Brakes
TEKTRO "HD-T280"
Brake Levers
TEKTRO "HD-T280"
Cockpit
Stem
HUMPERT "Ergotec Octopus", Adjustable, 90 mm
Handlebar
HUMPERT "Ergotec Ladytown", Ø 31,8, 620 mm
Grips
HERRMANS "DD37"
Headset
ZS44 / ZS56, Reduzierkonus
Seat
Saddle
SELLE ROYAL "Vivo Moderat Ergo", Da
Seatpost
HUMPERT "Ergotec SP10", 350 mm
Motor & Battery
Motor

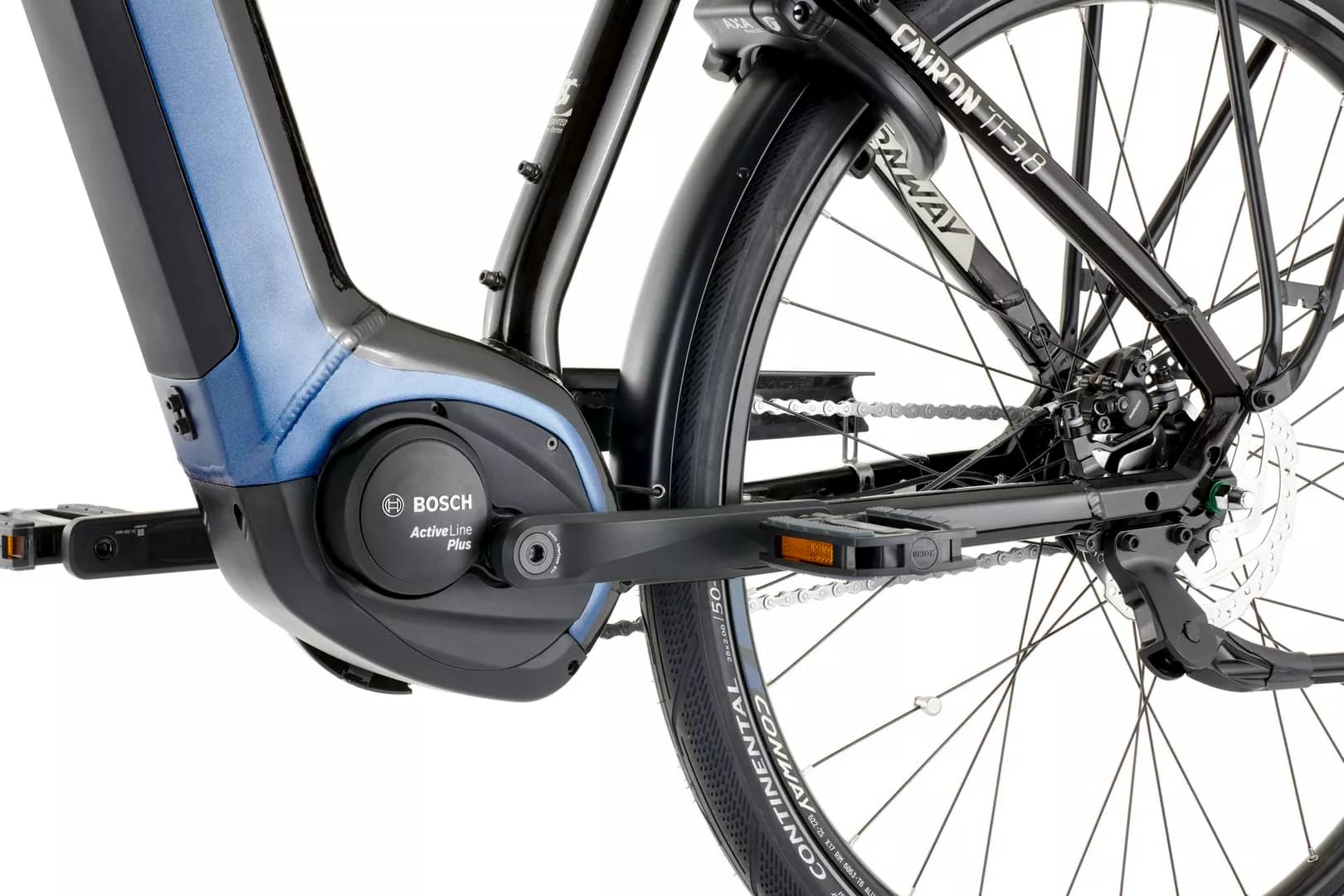

BOSCH Mittelmotor Gen.3 "Active Line PLUS", 36 V, 250 W Nenn-Dauerleistung
Battery
BOSCH "Powertube 625", Lithium-Ionen mit BMS, 625 Wh
Charger
Bosch 2 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.57 mm | 1.57 mm | 1.49 mm |
| Stack | 643 mm | 643 mm | 662 mm | 662 mm |
| Reach | 389 mm | 409 mm | 423 mm | 443 mm |
| Top Tube Length | 583 mm | 603 mm | 623 mm | 643 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 460 mm | 500 mm | 540 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 150 mm | 150 mm | 170 mm | 170 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Cairon TF 3.8 wave is part of the Conway E Cairon model. There are 351 e-bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
The most economical model, the Conway Cairon TF 1.7 wave 2023 has a starting price of 2646$. Conway Cairon SUV FS 7.7 2023 on the other hand is the most expensive at 5823$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter e-bikes average price
If you want to purchase a solid Commuter e-bike, it is important to know that the average cost is 2569$. However, you could also get a good Commuter e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 3599$. If we compare this with the average Commuter e-bike cost we notice that the price is 40.09% more expensive.
Overview of components
Fork
The fork installed on this bike is the RST BLAZE model. The travel on this model is 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Cairon TF 3.8 wave model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Cairon TF 3.8 wave comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
Cairon TF 3.8 wave comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
