Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 50mm -
Fork Suntour M 3010
-
Groupset Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminium
Suspension Fork
SUNTOUR "M3010", 50mm
Drivetrain
Rear Derailleur
SHIMANO "RD-TX800", 7speed
Shift Levers
SHIMANO "ST-EF41"
Cassette
SHIMANO "TZ500", 14-28 Z.
Crank
SHIMANO "FC-TY301", 28/38/48 Z. 170 mm
Wheels
Front Hub
SHIMANO Nabendynamo "DHC3000"
Rear Hub
JOY TECH
Rims
CONWAY Hohlkammer "X2"
Tires
KENDA "K935", 700 x 47C, Reflex
Brakes
Brakes
PROMAX V-Brake
Cockpit
Handlebar
CONWAY Riser, 700 mm
Seat
Saddle
SELLE ROYAL "Shadow"
Seatpost
CONWAY Patent, 31,6 mm, 350 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.59 mm | 1.6 mm | 1.63 mm |
| Stack | 622 mm | 636 mm | 655 mm |
| Reach | 391 mm | 398 mm | 403 mm |
| Top Tube Length | 583 mm | 593 mm | 603 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 450 mm | 500 mm | 550 mm |
| Head Tube Length | 71 mm | 71 mm | 71 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1072 mm | 1082 mm | 1094 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

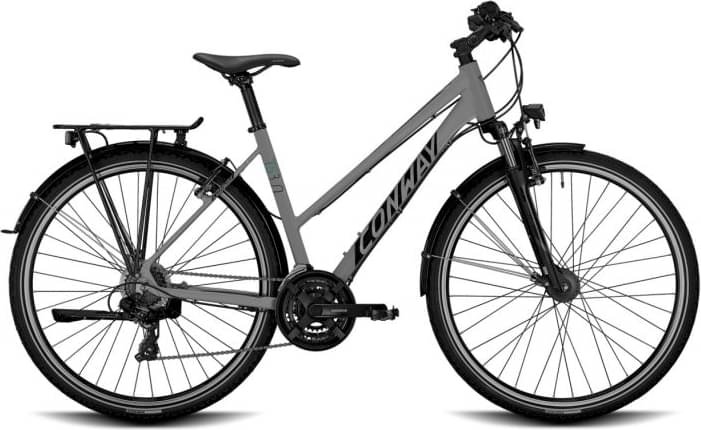

TS 3.0 Trapez is a Conway Ts model. 37 bikes variations carry this model name so far. You can easily view all of the Conway Ts bikes models from 2023, here.
Model range prices
Conway TS 3.0 ladies, trapeze 2023 is the cheapest bike model and costs 721$. Conway TS 6.0 Trapez 2023 is the most expensive one and costs 1220$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid bikes average price
Our math shows that the average cost of a dependable Hybrid bike is 562$. However, this doesn’t mean that if you spend less money on a Hybrid bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2023 for 721$. In conclusion, this bike price is 28.29% more expensive than the price of the average Hybrid bike.
Overview of components
Fork
This bike has the Suntour M 3010 fork installed. The fork’s travel is 50mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the TS 3.0 Trapez model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The TS 3.0 Trapez has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
Conway TS 3.0 Trapez bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
