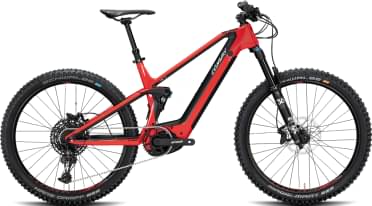

Conway Xyron 727 Carbon 2020
2020 E-bike
Estimate price |
6,165$
Weight | 22.7 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle, SX Eagle -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Bosch PT, Carbon
Suspension Fork
FOX "Performance 36 Float", 140 mm
Rear Shock
FOX "Float EVOL LV"
Drivetrain
Rear Derailleur
SRAM "NX Eagle", 12-speed
Shift Levers
SRAM "SX Eagle Trigger" single click
Cassette
SRAM "PG 1230 Eagle", 11-50 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
FORMULA "DC 711", 15x110 mm
Rear Hub
FORMULA "eHL-148 S", 12x148 mm
Rims
RODI "Ready 35"
Tires
SCHWALBE front „Magic Mary“, Snakeskin, rear: SCHWALBE „Hans Dampf“, Speedgrip, 65-584
Brakes
Brakes
SHIMANO "BR-MT520", 4-Kolben, 203 mm
Cockpit
Handlebar
CONWAY "Low Rizer", Ø 35, 780 mm
Seat
Saddle
CONWAY "1489 sport superlight"
Seatpost
CONTEC "Drop-A-Gogo", Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH "Purion", 4-Stufen, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.325 mm | 1.288 mm | 1.254 mm |
| Stack | 595 mm | 595 mm | 604 mm | 613 mm |
| Reach | 425 mm | 449 mm | 469 mm | 489 mm |
| Top Tube Length | 577 mm | 601 mm | 624 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Length | 66 mm | 66 mm | 66 mm | 66 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1183 mm | 1207 mm | 1231 mm | 1255 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Xyron 727 Carbon belongs to the Conway E Xyron model. Conway released 59 e-bikes variations of this model so far. You can easily view all of the Conway E Xyron e-bikes models from 2020, here.
Model range prices
Conway Xyron 227 2020 is the most affordable e-bike of this model and has a price of 3928$. On the other hand, Conway Xyron 927 Carbon 2020, is the most expensive and costs 8493$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, you could also get a good Trail e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
At the moment of the release date, Conway Xyron 727 Carbon price was 5626$. Doing a quick comparison, we notice that Xyron 727 Carbon price is 67.19% higher than the average cost of a Trail e-bike.
Trail e-bikes average weight
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Xyron 727 Carbon weighs 22.7 kg (50.04 lbs) and is slightly lighter than the average. In short, the average Trail e-bike weight is 4.41% higher than this one.
Overview of components
Fork
Conway Xyron 727 Carbon 2020 e-bike is equipped with the Fox Performance Float 36 fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on Xyron 727 Carbon are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Xyron 727 Carbon. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
