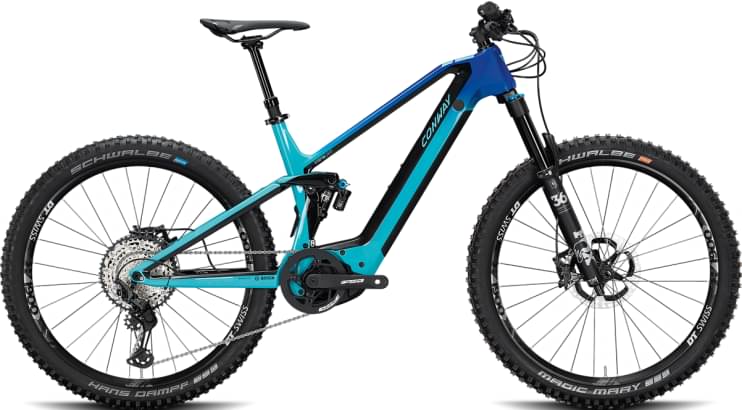

Conway Xyron 827 Carbon 2020
2020 E-bike
Estimate price |
6,979$
Weight | 22.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 140mm -
Fork Fox Performance Float 36
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Bosch PT, Carbon
Suspension Fork
FOX "Performance 36 Float", 140 mm
Rear Shock
FOX "Float DPX 2"
Drivetrain
Rear Derailleur
SHIMANO "Deore XT RD-M8100 Shadow Plus", 12-speed
Shift Levers
SHIMANO "Deore XT SL-M8100"
Cassette
SHIMANO "CS-M7100", 10-51 Z.
Crank
FSA "E-MTB Bosch", 38 Z.
Bottom Bracket
Bosch, press-fit
Wheels
Front Hub
DT SWISS "Spline H1900", 27,5" 15 x 110 mm
Rear Hub
DT SWISS "Spline H1900", 27,5", 12 x 148 mm
Rims
DT SWISS "Spline H1900"
Tires
SCHWALBE front „Magic Mary“, Snakeskin, rear: SCHWALBE „Hans Dampf“, Speedgrip, 65-584
Brakes
Brakes
SHIMANO "front: BR-M8120; rear: BR-M8120", 203/203 mm
Cockpit
Handlebar
CONWAY "Low Rizer", Ø 35, 780 mm
Seat
Saddle
CONWAY "1489 sport superlight"
Seatpost
CONTEC "Drop-A-Gogo", Ø 31,6 mm
Motor & Battery
Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH PT Lithium-Ionen mit BMS, 36 V, 16,66 Ah, 625 Wh
Remote
BOSCH "Purion", 4-Stufen, Schiebehilfe
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.325 mm | 1.288 mm | 1.254 mm |
| Stack | 595 mm | 595 mm | 604 mm | 613 mm |
| Reach | 425 mm | 449 mm | 469 mm | 489 mm |
| Top Tube Length | 577 mm | 601 mm | 624 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm |
| Head Tube Length | 66 mm | 66 mm | 66 mm | 66 mm |
| Chainstay Length | 450 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1183 mm | 1207 mm | 1231 mm | 1255 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Xyron 827 Carbon completes the Conway E Xyron model. There are 59 e-bikes that carry this model name. Take a sneak peek at all Conway E Xyron e-bikes models from 2020, by clicking here.
Model range prices
Conway Xyron 227 2020 is the cheapest e-bike model and costs 3928$. Conway Xyron 927 Carbon 2020 is the most expensive one and costs 8493$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
This e-bike was released in 2020 and its price was 6370$. In conclusion, this e-bike price is 89.3% more expensive than the price of the average Trail e-bike.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 22.4 kg (49.38 lbs), the Xyron 827 Carbon model is a bit lighter than average. In short, the average Trail e-bike weight is 5.8% higher than this one.
Xyron 827 Carbon components
Fork
The Xyron 827 Carbon comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the Xyron 827 Carbon e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
A dropper post is included with the Xyron 827 Carbon. Therefore, climbing or descending will be a breeze.
