Conway Xyron S 9.9 MX Carbon Full Suspension 2023
2023 E-bike
Estimate price |
12,615$
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox ZEB Ultimate
-
Groupset X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
CONWAY Fully Intube Bosch, Carbon
Suspension Fork
ROCKSHOX "ZEB Ultimate", 160 mm, w Fender
Rear Shock
ROCKSHOX "Super Deluxe Ultimate" 160 mm
Drivetrain
Rear Derailleur
SRAM "X01 Eagle AXS", 12speed
Shift Levers
SRAM "AXS Rocker"
Cassette
SRAM "XG 1299 Eagle", 10-52 Z. Rainbow
Crank
MIRANDA "Epsilon", 165 mm
Bottom Bracket
BOSCH
Wheels
Front Hub
CRANKBROTHERS "Synthesis E-MTB Carbon", 15 x 110 mm
Rear Hub
CRANKBROTHERS "Synthesis E-MTB Carbon", 12 x 148 mm
Rims
CRANKBROTHERS "Synthesis E-MTB Carbon"
Spokes
CRANKBROTHERS
Tires
SCHWALBE "Magic Mary", Soft, 62-622
Brakes
Brakes
TRP "DH-R EVO HD-M846", 4-Kolben
Brake Levers
TRP "DH-R EVO HD-M846"
Cockpit
Stem
LEVEL 9 "Team A-Head ICR", 31,8 mm, 40 mm
Handlebar
LEVEL 9 "Team Riser", Ø 31,8, 800 mm
Grips
SQLAB "70X"
Headset
ZS56 / ZS56, ICR, Blocklock
Seat
Saddle
FIZIK "Aidon"
Seatpost
ROCKSHOX "Reverb AXS", 31,6 mm, 100 mm
Motor & Battery

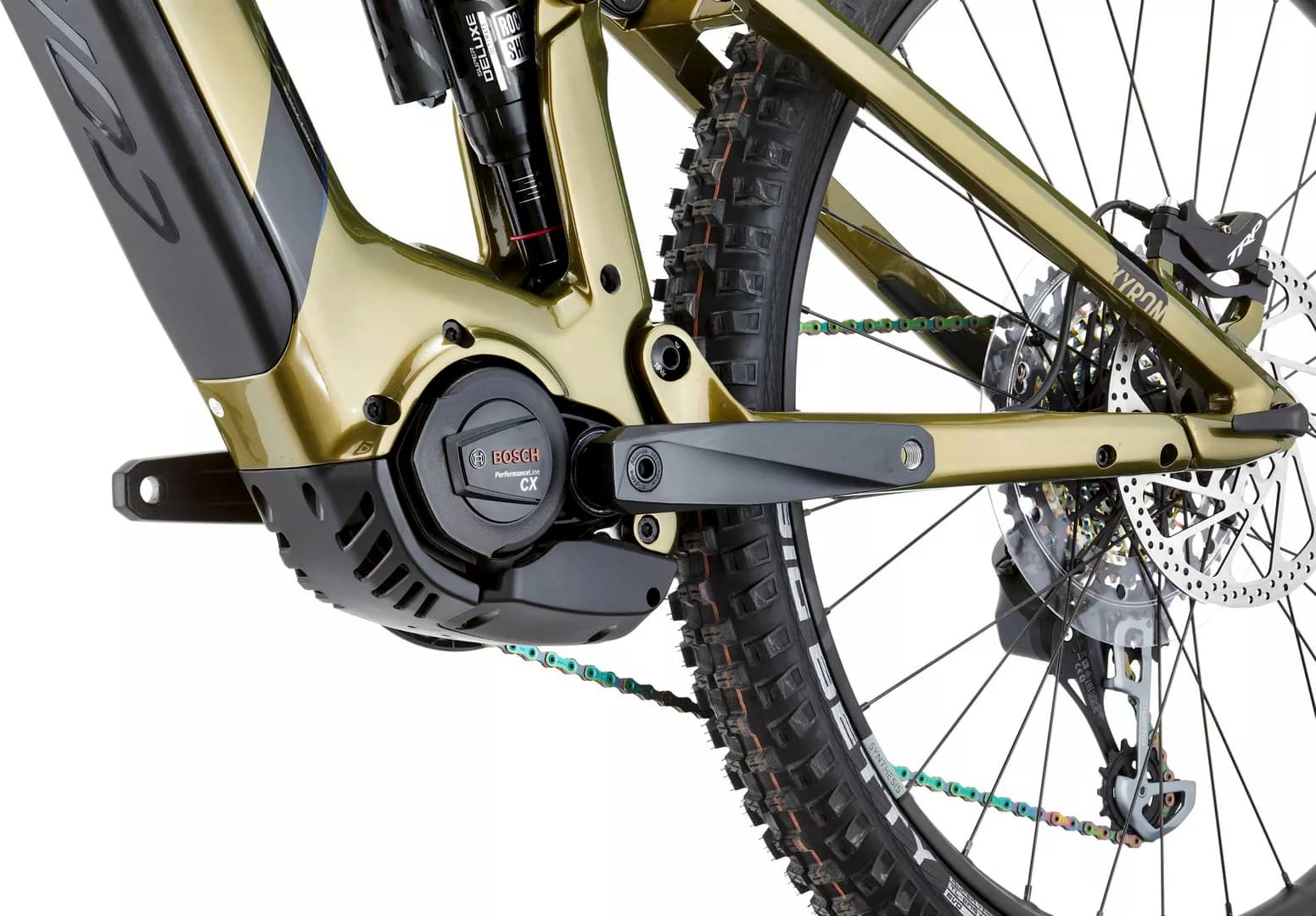

Motor
BOSCH Mittelmotor Gen.4 "Performance CX", 36 V, 250 W
Battery
BOSCH "Powertube 750", Lithium-Ionen mit BMS, 750 Wh
Remote
BOSCH "BRC3300"
Charger
Bosch 4 Ah
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL | XXL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.528 mm | 1.458 mm | 1.423 mm | 1.388 mm | 1.361 mm |
| Stack | 637 mm | 637 mm | 646 mm | 655 mm | 664 mm |
| Reach | 417 mm | 437 mm | 454 mm | 472 mm | 488 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm | 665 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 490 mm | 520 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 120 mm | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 443 mm | 443 mm | 443 mm | 443 mm | 443 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
Xyron S 9.9 MX Carbon Full Suspension is a Conway E Xyron model. 59 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
Conway Xyron S 2.7 Full Suspension 2023 is the most economical model, with a starting price of 4565$. Conway Xyron S 9.9 MX Carbon Full Suspension 2023 on the other hand costs 11679$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
This e-bike was released in 2023 and its price was 11679$. Doing a quick comparison, we notice that Xyron S 9.9 MX Carbon Full Suspension price is 144.08% higher than the average cost of an Enduro e-bike.
Xyron S 9.9 MX Carbon Full Suspension components
Fork
The Xyron S 9.9 MX Carbon Full Suspension comes factory-installed with the RockShox ZEB Ultimate fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.

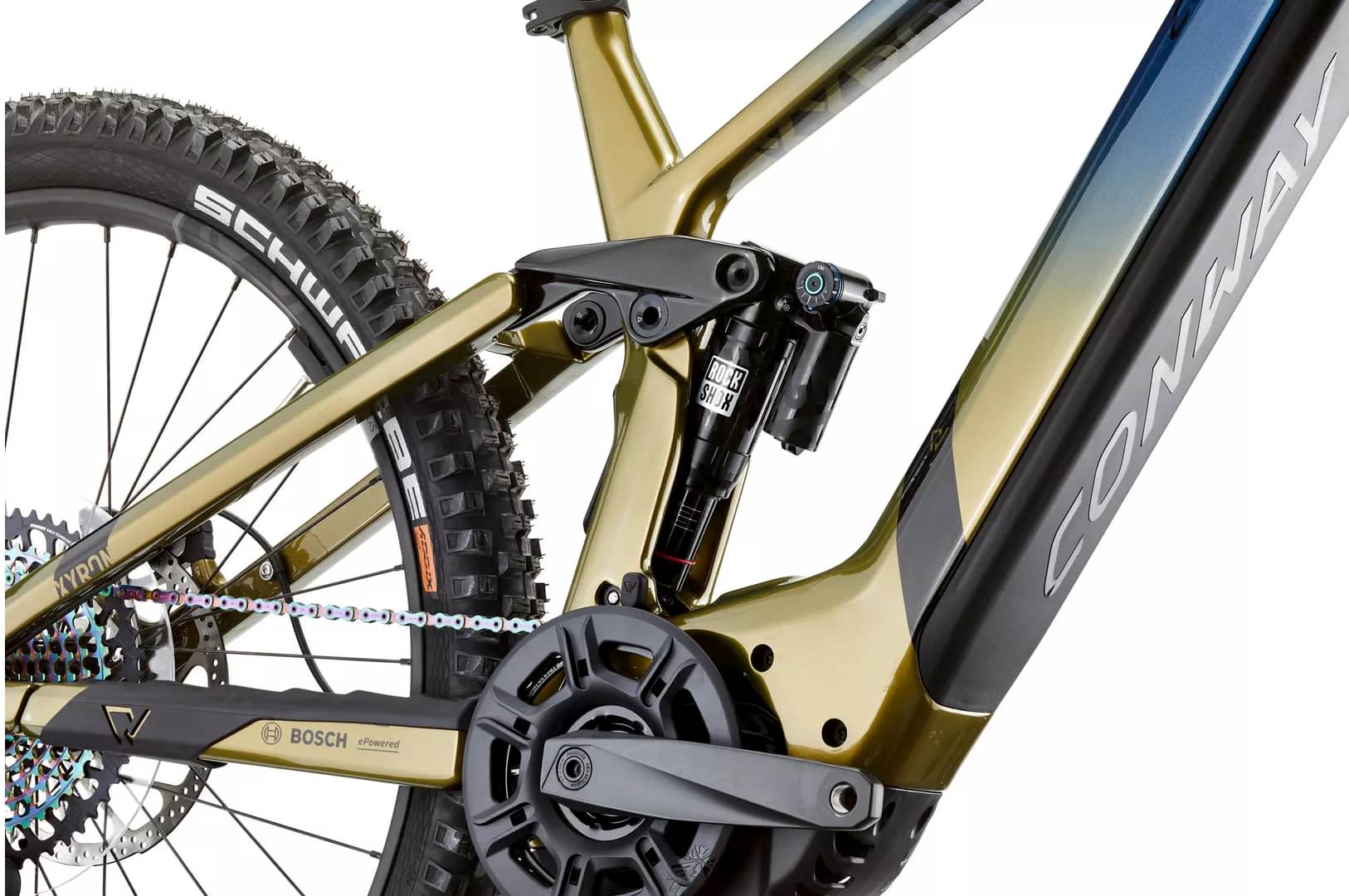

Rear Shock
As for the rear shock, this e-bike has the ROCKSHOX “Super Deluxe Ultimate” 160 mm model, with a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The Xyron S 9.9 MX Carbon Full Suspension 2023 e-bike is equipped with 29″ carbon wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The Xyron S 9.9 MX Carbon Full Suspension has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
