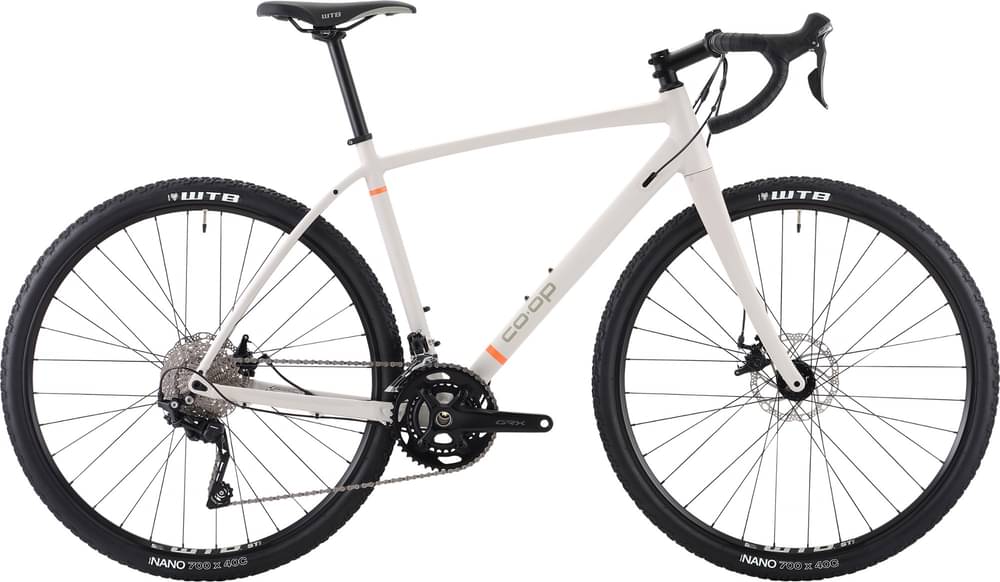

Co-op ADV 2.2 2021
2021 Road
Estimate price |
1,599$
Weight | 10.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double-butted 6061 aluminum
Suspension Fork
Carbon with 1-1/8 to 1-1/2 tapered steerer tube
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow Plus design
Front Derailleur
Shimano GRX 400
Shift Levers
Shimano Tiagra ST-4700
Cassette
Shimano CS-HG50, 11-36t
Crank
Shimano GRX 600, 46-30t
Bottom Bracket
Shimano
Chain
Shimano HG-X 10 speed
Pedals
Not included
Wheels
Front Hub
DM for 12mm thru axle
Rear Hub
DM for 12mm thru axle
Rims
WTB, ST i19 TCS 2.0 (Tubeless Ready)
Tires
WTB Nano Comp 700c x 40mm
Brakes
Brakes
Tektro MD-C550 cable actuated Mechanical Disc Brake
Brake Levers
Tektro
Cockpit
Stem
Co-op Cycles 6061 aluminum
Handlebar
Co-op Cycles 12-degree flared
Headset
Integrated 1-1/8 x 1-1/2 in. tapered
Seat
Saddle
WTB Silverado Comp
Seatpost
Promax 6061 aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.43 mm | 1.45 mm | 1.46 mm |
| Rake | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| Stack | 523 mm | 534 mm | 556 mm | 573 mm | 594 mm |
| Reach | 375 mm | 382 mm | 388 mm | 396 mm | 406 mm |
| Top Tube Length | 515 mm | 530 mm | 547 mm | 565 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 385 mm | 435 mm | 470 mm | 510 mm | 545 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1024 mm | 1031 mm | 1031 mm | 1042 mm | 1047 mm |
| Standover Height | 700 | 729 mm | 758 mm | 787 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
ADV 2.2 completes the Coop Adv model. Co-op launched 23 bikes of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Co-op ADV 2.1 2021 is the most economical model, with a starting price of 1249$. Co-op ADV 2.3 2021 on the other hand costs 2399$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
When Co-op released this model in 2021, its price was 1599$. Doing a quick comparison, we notice that ADV 2.2 price is 53.97% lower than the average cost of a Gravel bike.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Co-op ADV 2.2 it’s weighing 10.61 kg (23.39 lbs). At this weight, is much heavier than average. To sum up, it’s 30.5% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
ADV 2.2 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
When it comes to wheels, the ADV 2.2 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Co-op ADV 2.2 has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
ADV 2.2 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
