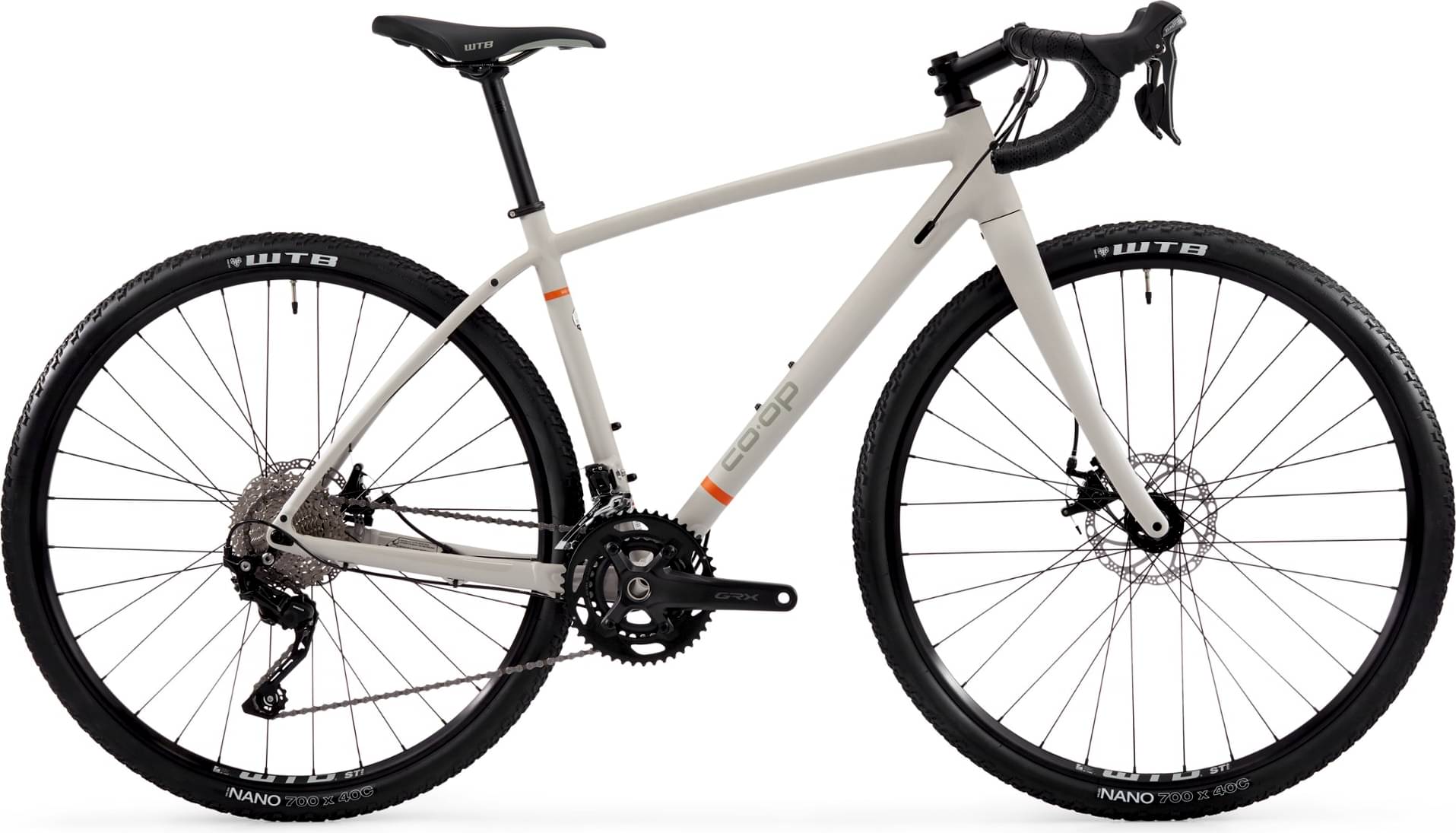

coop Co-op ADV 2.2 2023
2023 Road
Estimate price |
1,599$
Weight | 10.61 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset GRX 400, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double-butted 6061 aluminum
Suspension Fork
Carbon with 1-1/8 to 1-1/2 tapered steerer tube
Drivetrain
Rear Derailleur
Shimano GRX 400, Shadow Plus design
Front Derailleur
Shimano GRX 400
Shift Levers
Shimano Tiagra ST-4700
Cassette
Shimano CS-HG50, 11-36t
Crank
Shimano GRX 600, 46-30t
Bottom Bracket
Shimano
Chain
Shimano HG-X 10 speed
Pedals
Not included
Wheels
Front Hub
DM for 12mm thru axle
Rear Hub
DM for 12mm thru axle
Rims
WTB, ST i19 TCS 2.0 (Tubeless Ready)
Tires
WTB Nano Comp 700c x 40mm
Brakes
Brakes
Tektro MD-C550 cable actuated Mechanical Disc Brake
Brake Levers
Tektro
Cockpit
Stem
Co-op Cycles 6061 aluminum
Handlebar
Co-op Cycles 12-degree flared
Headset
Integrated 1-1/8 x 1-1/2 in. tapered
Seat
Saddle
WTB Silverado Comp
Seatpost
Promax 6061 aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.4 mm | 1.43 mm | 1.45 mm | 1.46 mm |
| Rake | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| Stack | 523 mm | 534 mm | 556 mm | 573 mm | 594 mm |
| Reach | 375 mm | 382 mm | 388 mm | 396 mm | 406 mm |
| Top Tube Length | 515 mm | 530 mm | 547 mm | 565 mm | 587 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 385 mm | 435 mm | 470 mm | 510 mm | 545 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71.5 ° | 71.5 ° | 72 ° |
| Chainstay Length | 434 mm | 434 mm | 434 mm | 434 mm | 434 mm |
| Wheelbase | 1024 mm | 1031 mm | 1031 mm | 1042 mm | 1047 mm |
| Standover Height | 700 | 729 mm | 758 mm | 787 mm | 813 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 190 cm |
Model Overview
ADV 2.2 is a Coop Adv model. There are 23 bikes that carry this model name. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Co-op ADV 2.1 2023 is the most economical model, with a starting price of 1299$. Co-op ADV 2.3 2023 on the other hand costs 2499$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even though the average price of a Gravel bike is lower, you might still be able to get a top-quality bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Co-op released this model in 2023, its price was 1599$. Doing a quick comparison, we notice that ADV 2.2 price is 53.97% lower than the average cost of a Gravel bike.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much heavier than average, ADV 2.2 has a weight of 10.61 kg (23.39 lbs). In conclusion, the average Gravel bike weighs 30.5% less than ADV 2.2.
ADV 2.2 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Co-op ADV 2.2 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Co-op ADV 2.2 has Mechanical Disc brakes installed. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Co-op ADV 2.2 bike has 5 sizes, in the range of 152 cm – 190 cm (4.99 ft – 6.23 ft). In short, it won’t be difficult to find the right one for you.
