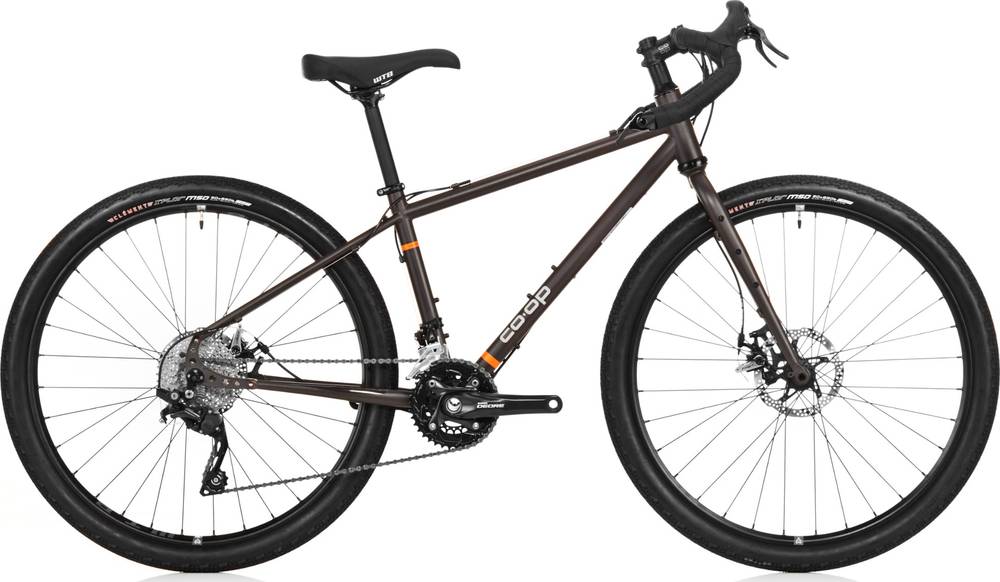

Co-op ADV 3.1 2020
2020 Road
Estimate price |
1,399$
Weight | 12.43 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Steel -
Wheels 650b -
Groupset Deore, microSHIFT -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Double-butted chromoly steel
Suspension Fork
Chromoly
Drivetrain
Rear Derailleur
Shimano Deore Shadow Plus
Front Derailleur
Shimano Deore
Shift Levers
Microshift BS-M10 bar-end
Cassette
Shimano HG50, 11-36, 10-speed
Crank
Shimano Deore, 38/24
Bottom Bracket
Shimano Deore
Chain
Shimano HG-54
Pedals
Sold separately
Wheels
Front Hub
Shimano Deore
Rear Hub
Shimano Deore
Rims
WTB 650B
Tires
Donnelly X'Plor MSO, 650b x 50 with reflective sidewall
Brakes
Brakes
TRP Spyre mechanical disc Mechanical Disc Brake
Brake Levers
TRP
Cockpit
Stem
Co-op Cycles aluminum
Handlebar
Co-op Cycles aluminum
Headset
FPD
Seat
Saddle
WTB Pure V Race
Seatpost
Co-op Cycles aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.44 mm | 1.49 mm | 1.54 mm | 1.62 mm |
| Rake | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| Stack | 539 mm | 543.7 mm | 574 mm | 595.7 mm | 638.3 mm |
| Reach | 374.5 mm | 378.1 mm | 384 mm | 387 mm | 394 mm |
| Top Tube Length | 522 mm | 532 mm | 552 mm | 567 mm | 587 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1050 mm | 1056 mm | 1057 mm | 1067 mm | 1089 mm |
| Standover Height | 716 mm | 740 mm | 775 mm | 806 mm | 850 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
ADV 3.1 is a Coop Adv model. There are 23 bikes that carry this model name. Take a sneak peek at all Coop Adv bikes models from 2020, by clicking here.
Model range prices
Co-op ADV 2.1 2020 is the most economical model, with a starting price of 1099$. Co-op ADV 2.3 2020 on the other hand costs 2399$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Touring bikes average price
According to our math, the average price for a trustworthy Touring bike is 1007$. However, even if your budget is less than the average, you might still be able to get a top-quality Touring bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1399$. Doing a quick comparison, we notice that ADV 3.1 price is 38.93% more expensive than the average cost of a Touring bike.
Average weight for Touring bikes
The average weight for Touring bikes is 13.35 kg (29.43 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
ADV 3.1 weighs 12.43 kg (27.4 lbs) and is a bit lighter than the average. To sum up, it’s 7.4% lighter than the average weight of Touring bikes.
Overview of components
Fork material
The fork on this bike is made out of steel, which is tougher than carbon in the case of an impact. However, it can add some extra weight to the bike.
Wheels size
When leaving the production line, the ADV 3.1 model has aluminum wheels. After 700c wheels, 650b is the second most popular choice for road bikes. However, they don’t perform so well when you go over bumps and obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ADV 3.1 comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
