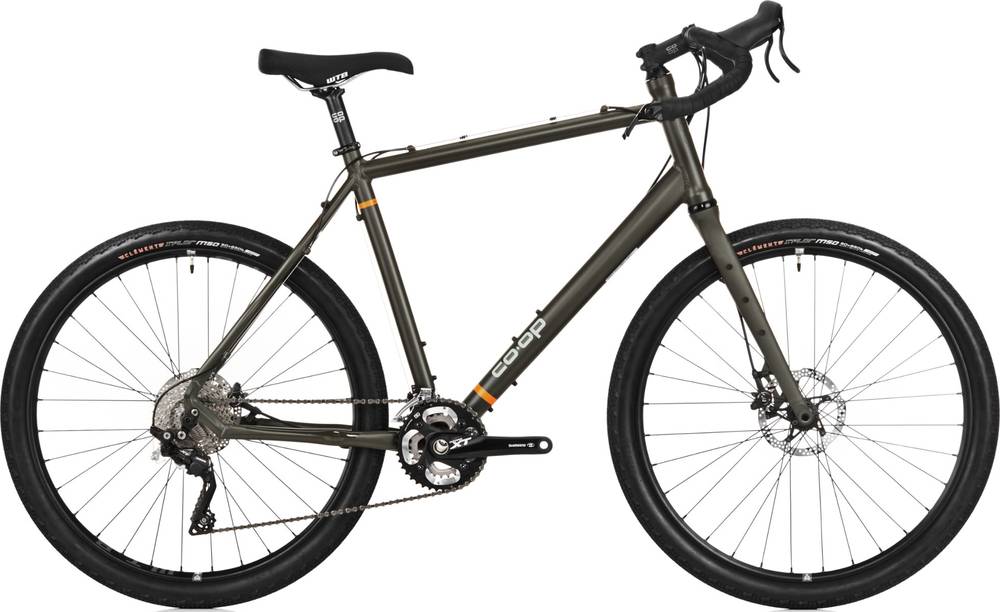

Co-op ADV 3.2 2020
2020 Road
Estimate price |
1,799$
Weight | 11.57 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 650b -
Groupset XT, microSHIFT -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum
Suspension Fork
Aluminum
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow Plus
Front Derailleur
Shimano Deore XT
Shift Levers
Microshift BS-M10 bar-end
Cassette
Shimano HG50, 11-36, 10-speed
Crank
Shimano Deore XT, 40/28
Bottom Bracket
Shimano Deore
Chain
Shimano HG-54
Pedals
Sold separately
Wheels
Front Hub
Shimano XLS
Rear Hub
Shimano XLS
Rims
WTB 650b
Tires
Donnelly X'Plor MSO, 650b x 50 with reflective sidewall
Brakes
Brakes
TRP Hylex hydraulic disc Hydraulic Disc Brake
Brake Levers
TRP RRL-A
Cockpit
Stem
Co-op Cycles aluminum
Handlebar
Co-op Cycles aluminum
Headset
FPD
Seat
Saddle
WTB Pure V Race
Seatpost
Co-op Cycles aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.41 mm | 1.47 mm | 1.52 mm | 1.64 mm |
| Rake | 55 mm | 55 mm | 50 mm | 50 mm | 50 mm |
| Stack | 532.7 mm | 537.4 mm | 567.2 mm | 590.9 mm | 642.9 mm |
| Reach | 376.2 mm | 379.9 mm | 386.1 mm | 388.5 mm | 392.6 mm |
| Top Tube Length | 522 mm | 532 mm | 552 mm | 567 mm | 587 mm |
| Seat Tube Angle | 74.3 ° | 74.3 ° | 73.3 ° | 73.3 ° | 73.3 ° |
| Seat Tube Length | 390 mm | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70 ° | 70 ° | 71 ° | 71 ° | 71 ° |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1050 mm | 1055 mm | 1056 mm | 1067 mm | 1089 mm |
| Standover Height | 712 mm | 740 mm | 773 mm | 805 mm | 849 mm |
| Wheels | 650 | 650 | 650 | 650 | 650 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model
ADV 3.2 belongs to the Coop Adv model. Co-op launched 23 bikes of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
The most economical model, the Co-op ADV 2.1 2020 has a starting price of 1099$. Co-op ADV 2.3 2020 on the other hand is the most expensive at 2399$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Touring bikes average price
If you want to purchase a solid Touring bike, it is important to know that the average cost is 1007$. However, you could also get a good Touring bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Co-op ADV 3.2 price was 1799$. Doing a quick comparison, we notice that ADV 3.2 price is 78.65% more expensive than the average cost of a Touring bike.
Average weight for Touring bikes
On a deeper look, we notice that the average weight of a Touring bike is 13.35 kg (29.43 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Co-op ADV 3.2 it’s weighing 11.57 kg (25.51 lbs). At this weight, is much lighter than average. In other words, this model is 15.38% lighter than the average Touring bike.
Overview of components
Fork material
The fork on this bike is made out of aluminum, which doesn’t add too much extra weight to the bike. However, it is not so stiff as steel or carbon forks are.
Wheels size
When leaving the production line, the ADV 3.2 model has aluminum wheels. 650b wheels make a great choice if you want to sacrifice speed for comfort. However, if speed is what you’re after, 700c wheels are a better fit.
Brakes
When you want to stop the bike in time, the brakes are vital. The ADV 3.2 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
