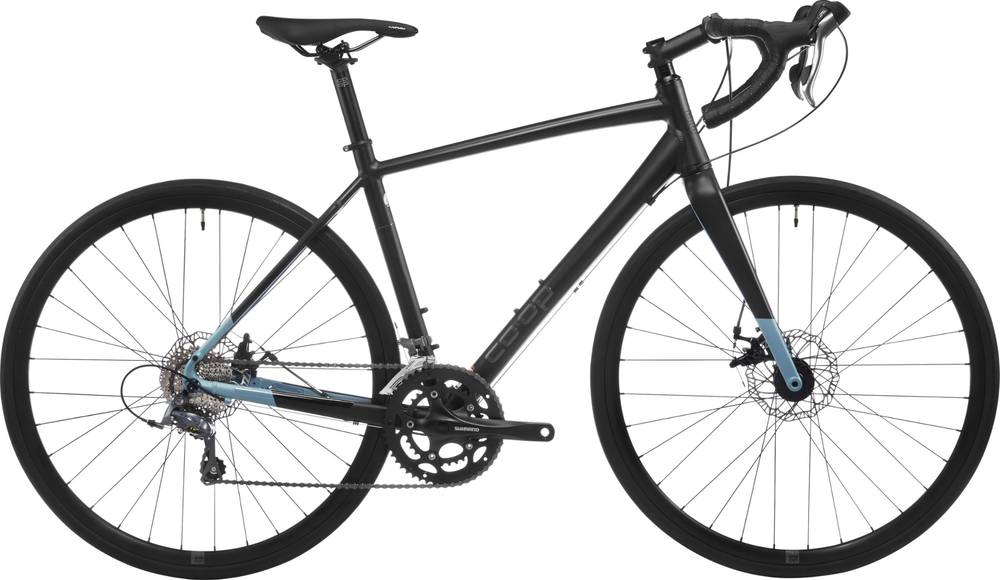

Co-op ARD 1.1 2019
2019 Road
Estimate price |
899$
Weight | 10.28 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Claris -
Suspension Rigid -
Drivetrain 2 × 8 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Co-op Cycles 6061 double-butted aluminum frame
Suspension Fork
One-piece carbon fork, tapered carbon steerer, for flat mount disc, includes fender mounts
Drivetrain
Rear Derailleur
Shimano Claris
Front Derailleur
Claris, band-type
Shift Levers
Shimano Claris
Cassette
Shimano CS-HG31, 11-34, 8 speed
Crank
Shimano Claris, 50x34T
Bottom Bracket
Shimano cartridge 68mm
Chain
KMC, 8 speed
Pedals
Sold separately
Wheels
Front Hub
Co-op Cycles, 32 hole
Rear Hub
Co-op Cycles, 32 hole
Rims
Co-op Cycles, 32 hole
Tires
CST recourse 700x28mm, puncture protection
Brakes
Brakes
Promax cable-actuated dual piston mechanical disc brake Mechanical Disc Brake
Brake Levers
Shimano Claris
Cockpit
Stem
Co-op Cycles 6061, 31.8, 6 degree rise
Handlebar
Co-op Cycles aero-ergo design; 31.8mm, 12 degree flare
Headset
Integrated headset
Seat
Saddle
Co-op cycles
Seatpost
Co-op Cycles 6016 AL, 31.6 diameter
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.48 mm | 1.52 mm | 1.53 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm |
| Stack | 547 mm | 570 mm | 594 mm | 613 mm |
| Reach | 384 mm | 386 mm | 390 mm | 400 mm |
| Top Tube Length | 531 mm | 546 mm | 566 mm | 586 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 440 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72.3 ° | 72.3 ° | 73 ° |
| Head Tube Length | 130 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1010 mm | 1009 mm | 1017 mm | 1027 mm |
| Standover Height | 738 mm | 775 mm | 803 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
ARD 1.1 completes the Coop Ard model. 11 bikes variations carry this model name so far. Check out the entire range from 2019 of this model, by clicking this link.
Model range prices
The most economical model, the Co-op ARD 1.1W 2019 has a starting price of 899$. Co-op ARD 1.3 2019 on the other hand is the most expensive at 1799$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Endurance bikes
Our math shows that the average cost of a dependable Endurance bike is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 899$. If we compare this with the average Endurance bike cost we notice that the price is 160.96% lower.
Endurance bikes average weight
If we make a quick analysis of the average weight of an Endurance bike, we get 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 10.28 kg (22.66 lbs), Co-op bike is much heavier than average. In conclusion, the average Endurance bike weighs 25.37% less than ARD 1.1.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When it comes to wheels, the ARD 1.1 bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The ARD 1.1 has Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, performance-wise there is room for improvement.
Sizes
Co-op ARD 1.1 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
