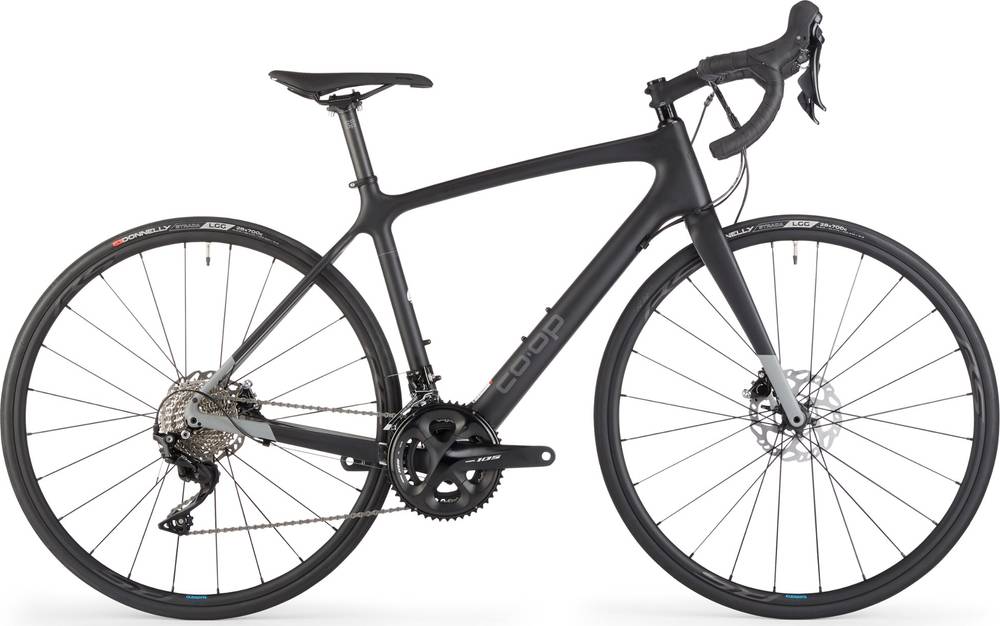

Co-op ARD 1.4 2020
2020 Road
Estimate price |
2,399$
Weight | 8.65 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Co-op Cycles monocoque carbon
Suspension Fork
One-piece carbon fork, tapered carbon steerer, for flat mount disc, includes fender mounts
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105, brazed-on type
Shift Levers
Shimano 105
Cassette
Shimano 105, 11-34, 11 speed
Crank
Shimano 105, Hollowtech 2, 50x34T
Bottom Bracket
Shimano SM-BBR60
Chain
Shimano 11-speed
Pedals
Sold separately
Wheels
Front Hub
Shimano RS 370
Rear Hub
Shimano RS 370
Rims
Shimano RS 370
Tires
DONNELLY Strada LGG 700x28c, folding bead
Brakes
Brakes
Shimano Hydraulic Hydraulic Disc Brake
Brake Levers
Shimano 105
Cockpit
Stem
Co-op Cycles 6061 aluminum, 31.8, +/-7 degrees
Handlebar
Co-op 6066 aluminum drop bar with aero wing shape
Headset
Integrated headset, 1.13 upper/1.5 lower
Seat
Saddle
Co-op Cycles with Cromoly rail
Seatpost
Co-op Cycles carbon, 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.48 mm | 1.52 mm | 1.53 mm |
| Rake | 50 mm | 50 mm | 45 mm | 45 mm |
| Stack | 546 mm | 570 mm | 594 mm | 613 mm |
| Reach | 384 mm | 386 mm | 390 mm | 400 mm |
| Top Tube Length | 531 mm | 546 mm | 566 mm | 586 mm |
| Seat Tube Angle | 75 ° | 74 ° | 73.3 ° | 73 ° |
| Seat Tube Length | 440 mm | 490 mm | 520 mm | 550 mm |
| Head Tube Angle | 71.5 ° | 72.3 ° | 72.3 ° | 73 ° |
| Head Tube Length | 130 mm | 155 mm | 180 mm | 200 mm |
| Chainstay Length | 426 mm | 426 mm | 426 mm | 426 mm |
| Wheelbase | 1009 mm | 1009 mm | 1017 mm | 1027 mm |
| Standover Height | 734 mm | 769 mm | 793 mm | 819 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
ARD 1.4 completes the Coop Ard model. There are 11 bikes that carry this model name. Take a sneak peek at all Coop Ard bikes models from 2020, by clicking here.
Model range prices
Co-op ARD 1.1W 2020 is the most affordable bike of this model and has a price of 899$. On the other hand, Co-op ARD 1.4 2020, is the most expensive and costs 2399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Endurance bikes average price
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
This bike was released in 2020 and its price was 2399$. Comparing this to the average Endurance bike price, we see that the price is 2.26% more expensive.
Average weight for Endurance bikes
The average weight for Endurance bikes is 8.2 kg (18.08 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
a bit heavier than average, ARD 1.4 has a weight of 8.65 kg (19.07 lbs). To sum up, it’s 5.49% heavier than the average weight of Endurance bikes.
Overview of components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the ARD 1.4 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
