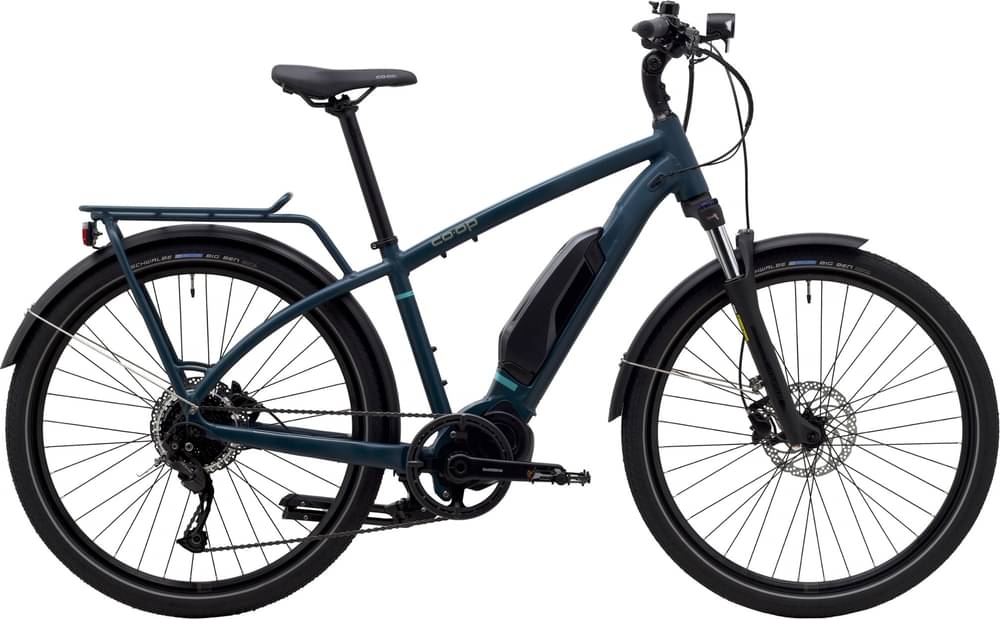

Co-op CTY e2.2 2021
Bike details
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum
-
Wheels 650b
-
Travel Front 75mm
-
Fork SunTour MOBIE
-
Groupset Alivio, Acera
-
Suspension Hardtail
-
Motor Shimano 250W 60Nm mid-drive
-
Battery Lithium Ion, 504 watt hours
-
Brakes Hydraulic Disc
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Main components, grouped by system.
Bike components
Frame
Frame
6061 Aluminum
Suspension Fork
Suntour MOBIE-A32, 75 millimeters
Drivetrain
Rear Derailleur
Shimano Alivio RD-M3100, 9-speed
Shift Levers
Shimano Acera, Rapidfire plus, 9-speed
Cassette
Shimano HG200; 11-34, 9-speed
Crank
Shimano FC-E6100
Bottom Bracket
Shimano FSA
Chain
Shimano for e-bike
Pedals
FPD alloy
Wheels
Front Hub
Shimano Alivio
Rear Hub
Shimano Alivio
Rims
Co-op Cycles double-wall, 36h
Tires
Schwalbe Big Ben 27.5 x 1.95 in.
Brakes
Brakes
Shimano Altus Hydraulic Disc Brake
Brake Levers
Shimano
Cockpit
Stem
Promax HQ adjustable
Handlebar
Co-op Cycles 6061 aluminum
Seat
Saddle
Co-op Comfort Plus with memory foam
Seatpost
Co-op aluminum
Motor & Battery
Motor
Shimano E6100 250W with Shimano E8010 36V/504Wh battery (max torque output 60Nm)
Battery
Lithium Ion, 504 watt hours
Fit data
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.67 mm | 1.65 mm | 1.68 mm |
| Rake | 44 mm | 44 mm | 44 mm |
| Stack | 604 mm | 613 mm | 641 mm |
| Reach | 362 mm | 372 mm | 382 mm |
| Top Tube Length | 550 mm | 569 mm | 594 mm |
| Seat Tube Angle | 73 ° | 72.5 ° | 72 ° |
| Seat Tube Length | 375 mm | 425 mm | 475 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 135 mm | 145 mm | 175 mm |
| Standover Height | 668 mm | 747 mm | 782 mm |
| Wheels | 650 | 650 | 650 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
CTY e2.2 completes the Coop E Cty model. Co-op released 10 e-bikes variations of this model so far. Take a sneak peek at all Coop E Cty e-bikes models from 2021, by clicking here.
Model range prices
Co-op CTY e2.1 2021 is the cheapest e-bike model and costs 1999$. Co-op CTY e2.2 2021 is the most expensive one and costs 2399$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2399$. Comparing this to the average Hybrid e-bike price, we see that the price is 3.38% lower.
Hybrid e-bikes average weight
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 23.54 kg (51.9 lbs), the CTY e2.2 model is slightly lighter than average. In short, the average Hybrid e-bike weight is 1.06% higher than this one.
CTY e2.2 components
Fork
The fork installed on this bike is the SunTour MOBIE model. The travel on this model is 75mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the CTY e2.2 e-bike is equipped with the aluminum model. The 650b wheels are very similar to 700c, with a slight difference in diameter. However, if you want higher speeds, you should look for a bike with 700c wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CTY e2.2 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
