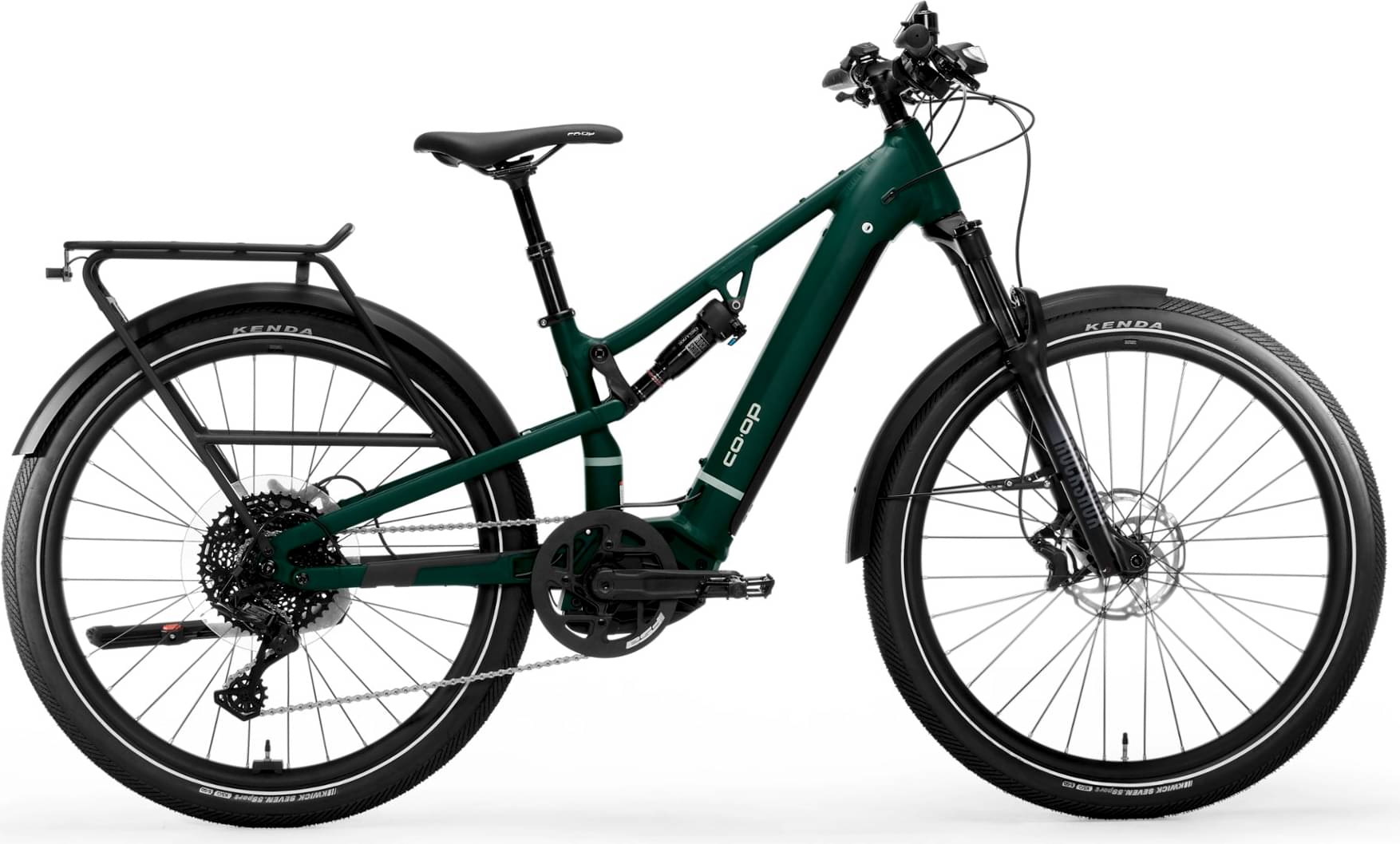

coop Co-op CTY e3.1 2023
2023 E-bike
Estimate price |
5,799$
Weight | 27.22 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Travel Front 120mm -
Fork RockShox Recon Silver RL
-
Groupset microSHIFT Advent X, FSA -
Suspension Full -
Motor Bosch 250W 63Nm mid-drive -
Battery Lithium Ion, 625 watt hours -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Suspension Fork
RockShox Recon Silver RL Solo Air, 120 millimeters
Rear Shock
RockShox Deluxe Select Plus RL
Drivetrain
Rear Derailleur
microSHIFT Advent X
Shift Levers
microSHIFT Advent X Trai Pro 10-Speed
Cassette
microSHIFT 10-speed 11-48T
Crank
FSA Isis 44T
Bottom Bracket
Bosch
Chain
KMC E11 Turbo
Pedals
Wellgo alloy platform
Wheels
Front Hub
Alloy Disc 15 mm thru axle
Rear Hub
Alloy 32H, 148 mm; thru axle
Rims
Co-op alloy double-wall, eyeleted, tubeless-ready
Tires
Kenda Kwick Seven.5; 60 tpi; wire bead; K-Shield Plus Protection; reflective sidewalls
Brakes
Brakes
Tektro Gemini SL 4-piston hydraulic disc Hydraulic Disc Brake
Brake Levers
Tektro hydraulic disc
Cockpit
Stem
31.8 mm; forged aluminum; 4-bolt
Handlebar
Co-op Riser, 15 mm rise, 9-degree sweep
Headset
FSA Orbit 1-1/8 in. to 1-1/2 in.
Seat
Saddle
Co-op steel rail comfort saddle
Seatpost
X Fusion Manic dropper with remote
Motor & Battery
Motor
Bosch Performance Line Sport, the smart system
Battery
Lithium Ion, 625 watt hours
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.45 mm | 1.46 mm | 1.4 mm | 1.32 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm | 46 mm |
| Stack | 595 mm | 595 mm | 624.5 mm | 633.7 mm | 633.7 mm |
| Reach | 394 mm | 409 mm | 429 mm | 454 mm | 479 mm |
| Top Tube Length | 530.8 mm | 546.3 mm | 575.5 mm | 603.3 mm | 628.2 mm |
| Seat Tube Angle | 72.8 ° | 72.7 ° | 72.7 ° | 72.7 ° | 72.7 ° |
| Seat Tube Length | 360 mm | 380 mm | 395 mm | 410 mm | 450 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° | 67 ° |
| Chainstay Length | 434 mm | 434 mm | 450 mm | 450 mm | 450 mm |
| Wheelbase | 1137 mm | 1152 mm | 1186 mm | 1215 mm | 1240 mm |
| Standover Height | 762 mm | 780 mm | 781 mm | 786 mm | 808 mm |
| Wheels | 27" | 27" | 29" | 29" | 29" |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 190 cm |
Model Overview
CTY e3.1 is part of the Coop E Cty model. There are 11 e-bikes that carry this model name. You can easily view all of the Coop E Cty e-bikes models from 2023, here.
Model range prices
Co-op CTY e1.1 2023 is the most affordable e-bike of this model and has a price of 1299$. On the other hand, Co-op CTY e3.1 2023, is the most expensive and costs 5799$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
When Co-op released this model in 2023, its price was 5799$. Doing a quick comparison, we notice that CTY e3.1 price is 133.83% higher than the average cost of a Hybrid e-bike.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 27.22 kg (60.01 lbs), Co-op e-bike is considerably heavier than average. In conclusion, the average Hybrid e-bike weighs 14.42% less than CTY e3.1.
CTY e3.1 components
Fork
The fork installed on this bike is the RockShox Recon Silver RL model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on CTY e3.1 are the 27.5″ aluminum type. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CTY e3.1 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 152 cm – 190 cm (4.99 ft – 6.23 ft). In short, you can easily find one that suits you.
Dropper post
Co-op CTY e3.1 comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
