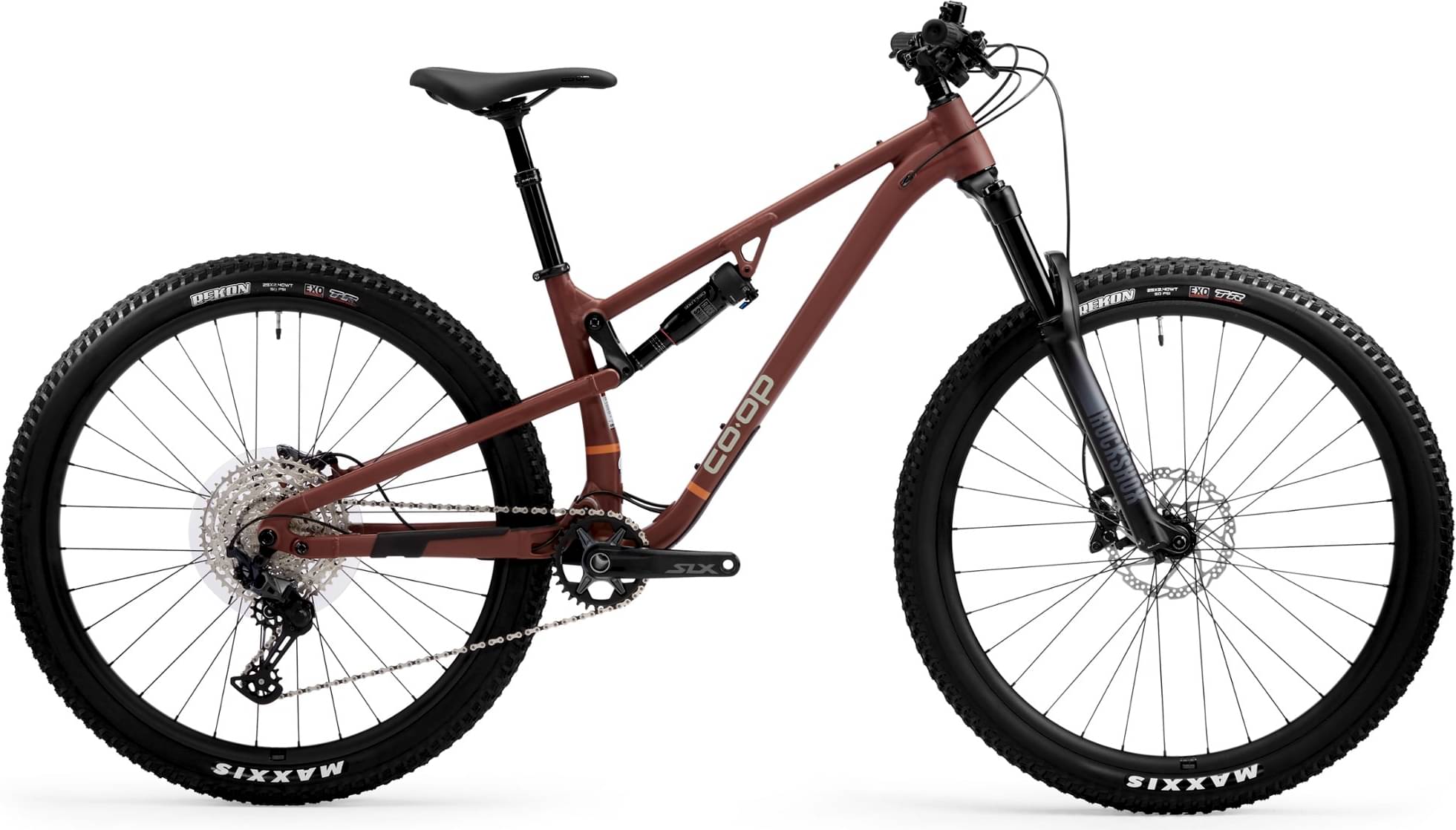

coop Co-op DRT 3.3 2023
2023 Mountain
Estimate price |
3,399$
Weight | 14.29 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Fork RockShox 35 Gold RL
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
152cm - 161cm
SM
159cm - 169cm
MD
166cm - 177cm
LG
174cm - 184cm
XL
181cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
6061 aluminum
Suspension Fork
RockShox 35 Gold RL Debonair, 140 millimeters
Rear Shock
RockShox Deluxe Select Plus RT
Drivetrain
Rear Derailleur
Shimano SLX Shadow 12-speed
Shift Levers
Shimano SLX 12-speed
Cassette
Shimano Deore 12-speed 10-51T
Crank
Shimano SLX
Bottom Bracket
Shimano BB-MT801
Chain
KMC X12
Pedals
Not included
Wheels
Front Hub
Alloy with thru axle; 15 x 110 mm
Rear Hub
Alloy with thru axle; 12 x 148 mm
Rims
Co-op aluminum double-wall tubeless-ready
Tires
XS: Maxxis Recon 60 TPI tubeless-ready, 27.5 x 2.4 in., S: Maxxis Recon 60 TPI tubeless-ready, 27.5 x 2.4 in., M: Maxxis Recon 60 TPI tubeless-ready, 29 x 2.4 in., L: Maxxis Recon 60 TPI tubeless-ready, 29 x 2.4 in., XL: Maxxis Recon 60 TPI tubeless-ready, 29 x 2.4 in.
Brakes
Brakes
Shimano Deore hydraulic with resin pads Hydraulic Disc Brake
Brake Levers
Shimano Deore
Cockpit
Stem
Forged aluminum 4-bolt
Handlebar
Co-op Riser, 15 mm rise, 9-degree sweep
Headset
FSA Orbit 1-1/8 to 1-1/2 in.
Seat
Saddle
Co-op Steel Rail
Seatpost
X Fusion Manic dropper with remote
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.38 mm | 1.36 mm | 1.33 mm | 1.3 mm |
| Bottom Bracket Height | 335 mm | 335 mm | 325 mm | 325 mm | 325 mm |
| Front Center | 692 mm | 717 mm | 749 mm | 782 mm | 815 mm |
| Rake | 37 mm | 37 mm | 44 mm | 44 mm | 44 mm |
| Trail | 108 mm | 108 mm | 95 mm | 94 mm | 95 mm |
| Stack | 578 mm | 578 mm | 604.5 mm | 622.7 mm | 641 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 494 mm |
| Top Tube Length | 522.5 mm | 547.5 mm | 580.9 mm | 611.6 mm | 642.4 mm |
| Seat Tube Angle | 77.6 ° | 77.6 ° | 77.4 ° | 77.2 ° | 77.1 ° |
| Seat Tube Length | 360 mm | 379.5 mm | 394.5 mm | 409.5 mm | 449.5 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° | 66 ° |
| Chainstay Length | 427 mm | 427 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1119 mm | 1144 mm | 1190 mm | 1223 mm | 1256 mm |
| Bottom Bracket Drop | 20 mm | 20 mm | 30 mm | 30 mm | 30 mm |
| Standover Height | 743 mm | 746 mm | 780 mm | 790 mm | 798 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
| Rider Min Height | 152 cm | 159 cm | 166 cm | 174 cm | 181 cm |
| Rider Max Height | 161 cm | 169 cm | 177 cm | 184 cm | 190 cm |
About this model
DRT 3.3 completes the Coop Drt model. Co-op launched 45 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Co-op DRT 1.0 2023 is the cheapest bike model and costs 599$. Co-op DRT 3.3 2023 is the most expensive one and costs 3399$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
At the moment of the release date, Co-op DRT 3.3 price was 3399$. Comparing this to the average Trail bike price, we see that the price is 23.06% higher.
Average weight for Trail bikes
On a deeper look, we notice that the average weight of a Trail bike is 12.98 kg (28.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
considerably heavier than average, DRT 3.3 has a weight of 14.29 kg (31.5 lbs). To sum up, it’s 10.09% heavier than the average weight of Trail bikes.
DRT 3.3 components
Fork
The fork installed on this bike is the RockShox 35 Gold RL model. The travel on this model is 140mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Co-op DRT 3.3 2023, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The DRT 3.3 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Co-op DRT 3.3 bike has 5 sizes, in the range of 152 cm – 190 cm (4.99 ft – 6.23 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Co-op DRT 3.3 includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
