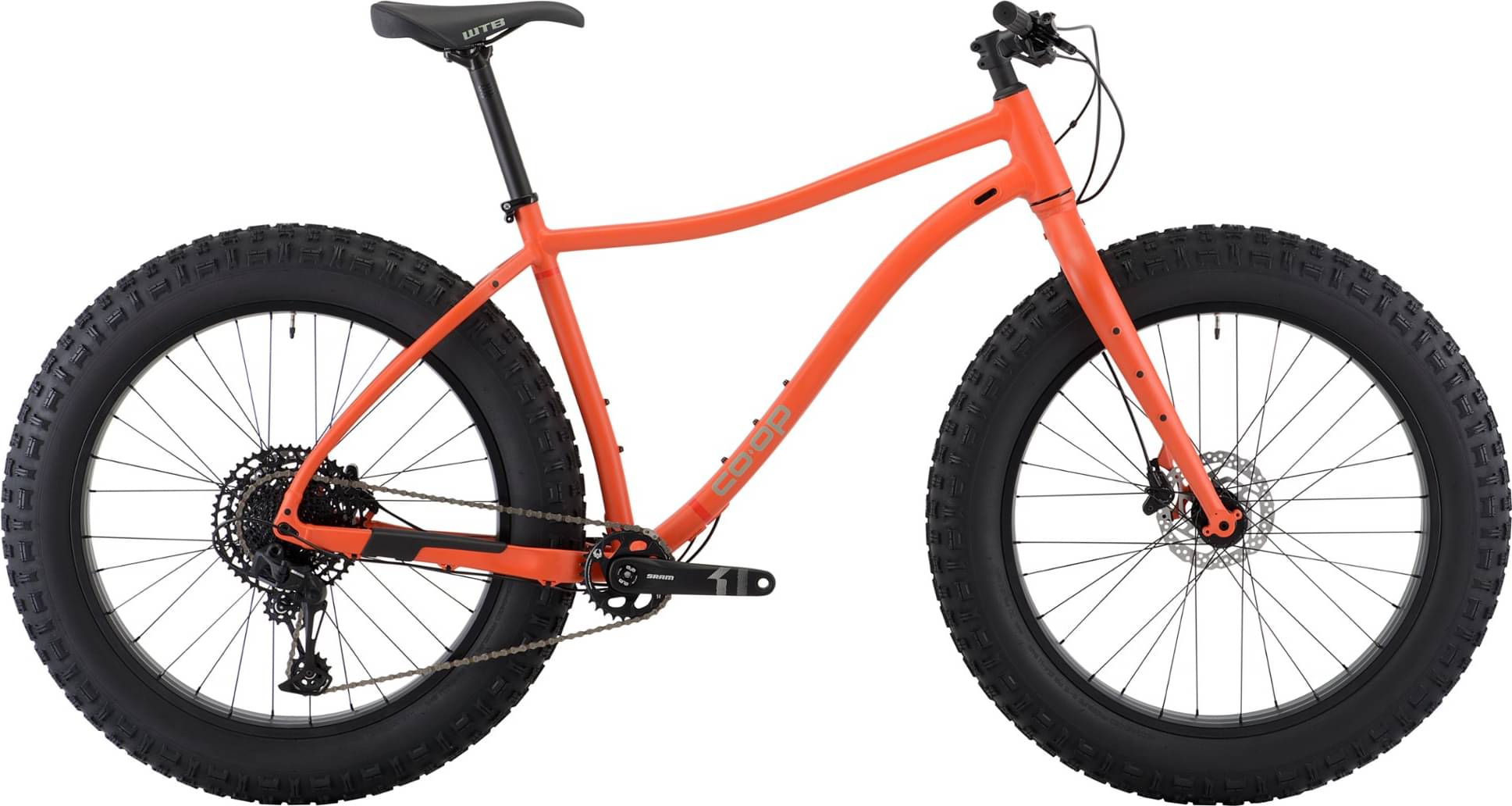

coop Co-op DRT 4.1 Fat-Tire 2022
2022 Mountain
Estimate price |
1,299$
Weight | 17.69 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 26" -
Groupset SX Eagle, X1 -
Suspension Rigid -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Co-op Cycles 6061 aluminum
Suspension Fork
6061 aluminum
Drivetrain
Rear Derailleur
SRAM SX Eagle 12-speed
Shift Levers
SRAM SX Eagle 12-speed
Cassette
SRAM Eagle, 11-50t, 12-speed
Crank
SRAM X1 1000 Eagle™ DUB fat 5
Bottom Bracket
SRAM DUB English BSA 100mm fat
Chain
SRAM SX Eagle
Pedals
Not included
Wheels
Front Hub
15mm thru axle
Rear Hub
12mm thru axle
Rims
26" aluminum
Tires
Innova 26 x 4.8 in.; 60 TPI
Brakes
Brakes
Shimano Acera MT-400 hydraulic disc Hydraulic Disc Brake
Brake Levers
Shimano
Cockpit
Stem
Co-op Cycles 6061 aluminum
Handlebar
Co-op Cycles alloy butted aluminum riser
Headset
Internal headset
Seat
Saddle
WTB Pure Sport
Seatpost
Co-op Cycles 6061 aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.36 mm | 1.31 mm | 1.26 mm | 1.22 mm |
| Stack | 567 mm | 571 mm | 581 mm | 590 mm | 604 mm |
| Reach | 394 mm | 419 mm | 444 mm | 469 mm | 494 mm |
| Top Tube Length | 558 mm | 585 mm | 612 mm | 640 mm | 669 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 360 mm | 395 mm | 430 mm | 465 mm | 500 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° | 68 ° |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1094 mm | 1121 mm | 1150 mm | 1179 mm | 1209 mm |
| Standover Height | 698 mm | 722 mm | 744 mm | 767 mm | 789 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
DRT 4.1 Fat-Tire completes the Coop Drt model. 45 bikes variations carry this model name so far. Take a sneak peek at all Coop Drt bikes models from 2022, by clicking here.
Model range prices
Co-op DRT 1.0 2022 is the most economical model, with a starting price of 599$. Co-op DRT 3.3 2022 on the other hand costs 3299$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Fatbike bikes average price
If you want to purchase a solid Fatbike bike, it is important to know that the average cost is 1743$. However, this doesn’t mean that if you spend less money on a Fatbike bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1299$. In conclusion, this bike price is 34.18% smaller than the price of the average Fatbike bike.
Average weight for Fatbike bikes
On a deeper look, we notice that the average weight of a Fatbike bike is 13.2 kg (29.1 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
DRT 4.1 Fat-Tire weighs 17.69 kg (39 lbs) and is much heavier than the average. In conclusion, the average Fatbike bike weighs 34.02% less than DRT 4.1 Fat-Tire.
Overview of components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The DRT 4.1 Fat-Tire 2022 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The DRT 4.1 Fat-Tire has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
