Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset Alfine, SunRace -
Suspension Rigid -
Drivetrain Internally Geared Hub -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec C29er Disc , Material: Alloy 6061
Suspension Fork
Corratec C29er Disc
Drivetrain
Shift Levers
Shimano Alfine 8s
Cassette
Shimano Alfine CS-500 18T , Number of pinions; Ratio: 8s; 18
Crank
Sunrace S38 , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Cross Attack 29 front , Rim height: 19 mm, Rim outer diameter: 29.00 zoll, Width outside: 24 mm, Number of spokes: 32, Type of tires: clincher with tubes, ZZYZX Cross Attack 29 rear , Rim height: 19 mm, Rim outer diameter: 29.00 zoll, Width outside: 24 mm, Number of spokes: 32, Type of tires: clincher with tubes
Tires
Continental Contact Cruiser front , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher with tubes, Continental Contact Cruiser rear , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher with tubes
Brakes
Brakes
Tektro HDT275 front , Size brake disc: 180 mm, Tektro HDT275 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX Speedlifter
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Corratec Classic Leather
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 48cm | 51cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.479 mm | 1.439 mm | 1.55 mm | 1.512 mm |
| Stack | 590 mm | 590 mm | 623 mm | 623 mm |
| Reach | 399 mm | 410 mm | 402 mm | 412 mm |
| Top Tube Length | 578 mm | 591 mm | 599 mm | 608 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 155 mm | 155 mm | 190 mm | 190 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1103 mm | 1115 mm | 1120 mm | 1129 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

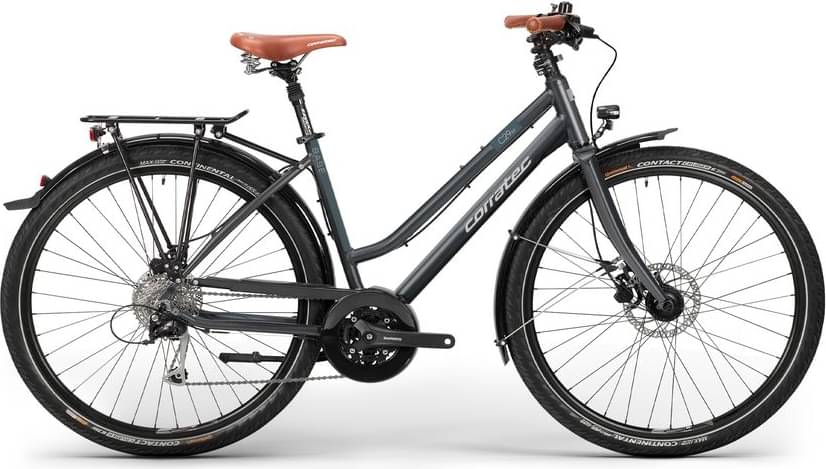

C29 Base Trapez is a Corratec C29 model. Corratec launched 8 bikes of this model so far. Take a sneak peek at all Corratec C29 bikes models from 2022, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Commuter bikes average price
If you want an acceptable Commuter bike you should know that the average price is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
C29 Base Trapez components
Wheels size
The C29 Base Trapez 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
