Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset XT, Deore -
Suspension Rigid -
Drivetrain 3 × 10 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec C29er Disc , Material: Alloy 6061
Suspension Fork
Corratec C29er Disc
Drivetrain
Rear Derailleur
Shimano T8000 Deore XT
Front Derailleur
Shimano DEORE
Shift Levers
Shimano DEORE
Cassette
Shimano HG50 10s , Number of pinions; Ratio: 10s; 11 13 15 17 19 21 24 28 32 36
Crank
Shimano Deore , Number of chainrings; Ratio: 3s; 48/36/26
Wheels
Rims
ZZYZX Cross Attack 29 front , Rim height: 19 mm, Rim outer diameter: 29.00 zoll, Width outside: 24 mm, Number of spokes: 32, Type of tires: clincher with tubes, ZZYZX Cross Attack 29 rear , Rim height: 19 mm, Rim outer diameter: 29.00 zoll, Width outside: 24 mm, Number of spokes: 32, Type of tires: clincher with tubes
Tires
Continental Contact Cruiser front , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher with tubes, Continental Contact Cruiser rear , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher with tubes
Brakes
Brakes
Tektro HDT275 front , Size brake disc: 180 mm, Tektro HDT275 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX Speedlifter
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Corratec Classic Leather
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 57cm | 61cm |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.423 mm | 1.469 mm | 1.485 mm | 1.483 mm | 1.492 mm |
| Stack | 575 mm | 589 mm | 603 mm | 617 mm | 631 mm |
| Reach | 404 mm | 401 mm | 406 mm | 416 mm | 423 mm |
| Top Tube Length | 580 mm | 587 mm | 596 mm | 610 mm | 622 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 140 mm | 155 mm | 170 mm | 185 mm | 200 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1116 mm | mm | 1116 mm | 1103 mm | 1145 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

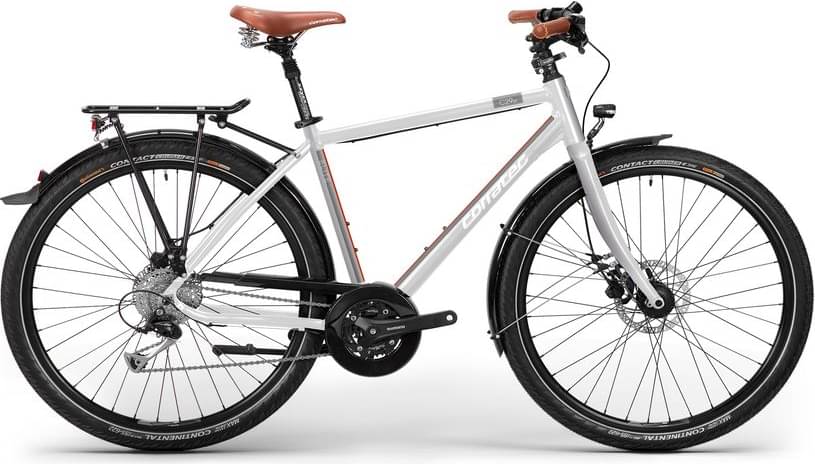

C29 Elite Gent completes the Corratec C29 model. Corratec launched 8 bikes of this model so far. You can easily view all of the Corratec C29 bikes models from 2022, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Commuter bikes average price
Our math shows that the average cost of a dependable Commuter bike is 762$. However, even though the average price of a Commuter bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
C29 Elite Gent components
Wheels
When it comes to wheels, the C29 Elite Gent bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. Corratec C29 Elite Gent has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
