Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset SX Eagle -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power C29 SE 3.0 CX7 Belt Gent , Material: Alloy
Suspension Fork
Corratec EP C29 SE 3.0 CX7 Belt Sport , Material: Alloy
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 12S
Crank
SRAM PG1210 Eagle , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
Corratec Sport HD front , Rim outer diameter: 29.00 zoll, Corratec Sport HD rear , Rim outer diameter: 29.00 zoll
Tires
Continental Contact Cruiser front , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher, Continental Contact Cruiser rear , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher
Brakes
Brakes
Tektro HD-T275 PM front , Size brake disc: 180 mm, Tektro HD-T275 PM rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Corratec Classic Leather
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.539 mm | 1.542 mm | 1.545 mm |
| Stack | 654 mm | 663 mm | 672 mm |
| Reach | 425 mm | 430 mm | 435 mm |
| Top Tube Length | 625 mm | 633 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 160 mm | 170 mm | 180 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1177 mm | 1186 mm | 1194 mm |
| Wheels | 29" | 29" | 29" |
About this model

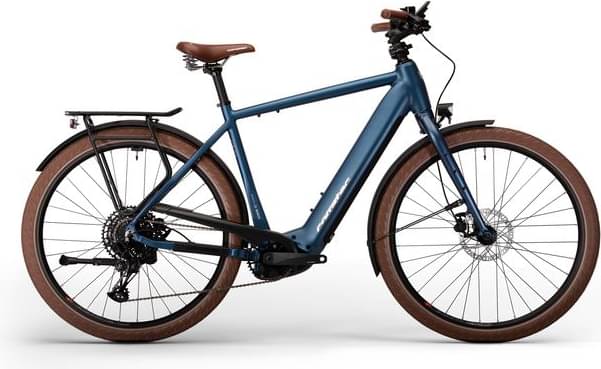

C29 SE 3.0 CX7 12S Trapez is a Corratec E C29 model. Corratec launched 6 e-bikes of this model so far. Take a sneak peek at all Corratec E C29 e-bikes models from 2023, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
Our math shows that the average cost of a dependable Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork material
The fork on this e-bike is made out of aluminum, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels size
When leaving the production line, the C29 SE 3.0 CX7 12S Trapez model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The C29 SE 3.0 CX7 12S Trapez comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
