Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power C29
Suspension Fork
Corratec C29er Disc
Drivetrain
Shift Levers
Enviolo TR
Cassette
Gates Carbon Drive
Crank
ZZYZX E-Power Crank , Number of chainrings; Ratio: 1s; 46
Wheels
Rims
ZZYZX Trekking 29er Disc front , Rim outer diameter: 29.00 zoll, Type of tires: clincher, ZZYZX Trekking 29er Disc rear , Rim outer diameter: 29.00 zoll, Type of tires: clincher
Tires
Continental Contact Cruiser front , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher, Continental Contact Cruiser rear , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher
Brakes
Brakes
Magura MT Thirty front , Size brake disc: 180 mm, Magura MT Thirty rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX Speedlifter
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Corratec Classic Leather
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , No path too steep, no challenge too great: the Performance Line CX is made for anyone for whom the trail is a second home. eMTB mode will always give you the power you need at precisely the right moment. Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J), Max. support of 340% For powerful propulsion, an extremely sporty riding style and fast sprints. Weight of just approximately 2,9 Kg.
Battery
BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 50cm | 55cm | 60cm |
|---|---|---|---|
| Stack Reach Ratio | 1.609 mm | 1.685 mm | 1.733 mm |
| Stack | 650 | 674 mm | 702 mm |
| Reach | 404 mm | 400 mm | 405 mm |
| Top Tube Length | 590 mm | 600 mm | 620 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73 ° |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 150 mm | 175 mm | 205 mm |
| Chainstay Length | 465 mm | 465 mm | 465 mm |
| Wheelbase | 1122 mm | 1128 mm | 1143 mm |
| Wheels | 29" | 29" | 29" |
Model Overview

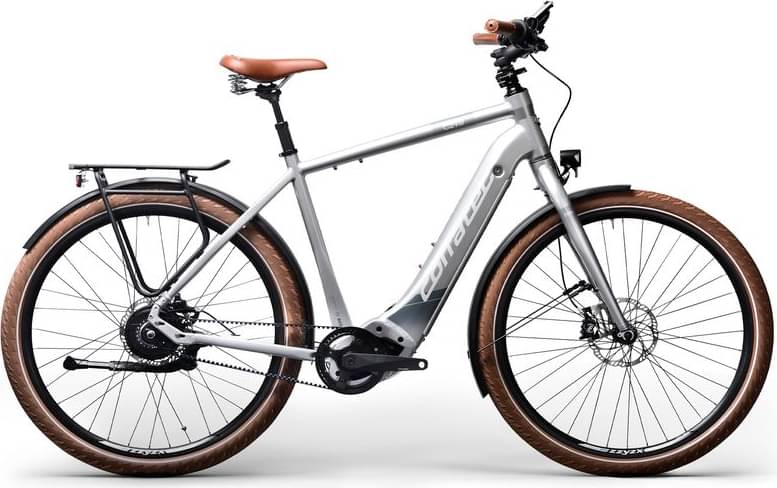

E-Power C29 BELT Gent completes the Corratec E E Power model. There are 97 e-bikes that carry this model name. Take a sneak peek at all Corratec E E Power e-bikes models from 2022, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, even if your budget is less than the average, you might still be able to get a top-quality Commuter e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
E-Power C29 BELT Gent components
Wheels
The E-Power C29 BELT Gent 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec E-Power C29 BELT Gent is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
