Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Groupset SX Eagle -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power C29 SE 3.0 CX7 12S Sport , Material: Alloy
Suspension Fork
Corratec EP C29 SE 3.0 CX7 Belt Sport , Material: Alloy
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 12S
Crank
SRAM PG1210 Eagle , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
Corratec Sport HD front , Rim outer diameter: 29.00 zoll, Corratec Sport HD rear , Rim outer diameter: 29.00 zoll
Tires
Continental Contact Cruiser front , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher, Continental Contact Cruiser rear , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher
Brakes
Brakes
Tektro HD-T275 PM front , Size brake disc: 180 mm, Tektro HD-T275 PM rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Corratec Classic Leather
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.583 mm | 1.582 mm | 1.548 mm |
| Stack | 665 mm | 674 mm | 684 mm |
| Reach | 420 mm | 426 mm | 442 mm |
| Top Tube Length | 617 mm | 625 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1175 mm | 1185 mm | 1204 mm |
| Wheels | 29" | 29" | 29" |
About this model

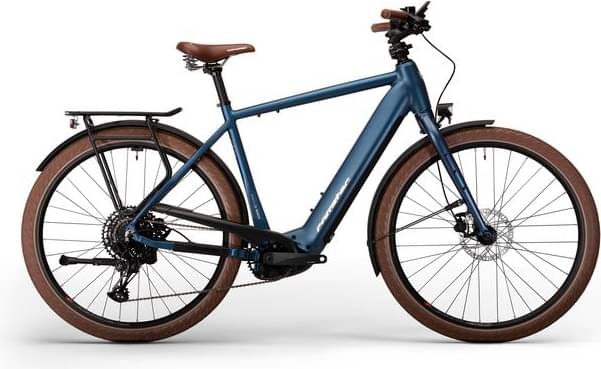

E-Power C29 SE 3.0 CX7 12 Gent completes the Corratec E E Power model. Corratec released 97 e-bikes variations of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Commuter e-bikes
If you want an acceptable Commuter e-bike you should know that the average price is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
E-Power C29 SE 3.0 CX7 12 Gent components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The wheels on E-Power C29 SE 3.0 CX7 12 Gent are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec E-Power C29 SE 3.0 CX7 12 Gent is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
