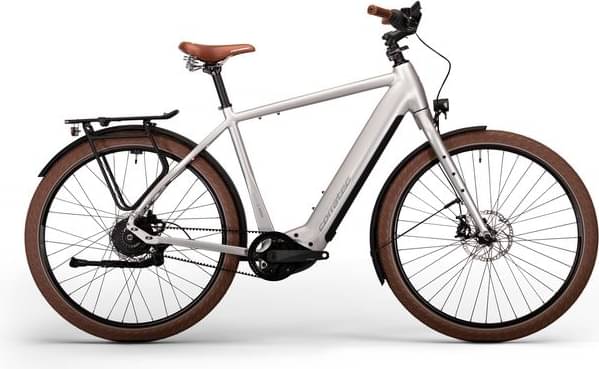

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Suspension Rigid -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain Belt Drive, Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power C29 SE 3.0 CX7 Belt Sport , Material: Alloy
Suspension Fork
Corratec EP C29 SE 3.0 CX7 Belt Sport , Material: Alloy
Drivetrain
Shift Levers
Enviolo TR
Cassette
Gates Carbon Drive
Crank
ZZYZX E-Power Crank , Number of chainrings; Ratio: 1s; 46
Wheels
Rims
Corratec Sport HD front , Rim outer diameter: 29.00 zoll, Corratec Sport HD rear , Rim outer diameter: 29.00 zoll
Tires
Continental Contact Cruiser front , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher, Continental Contact Cruiser rear , Inside diameter: 29.00 zoll, Width: 55 mm, Type of tires: clincher
Brakes
Brakes
Magura MT Thirty front , Size brake disc: 180 mm, Magura MT Thirty rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX Trekking Handlebar
Seat
Saddle
Corratec Classic Leather
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 45cm | 50cm | 55cm |
|---|---|---|---|
| Stack Reach Ratio | 1.583 mm | 1.582 mm | 1.548 mm |
| Stack | 665 mm | 674 mm | 684 mm |
| Reach | 420 mm | 426 mm | 442 mm |
| Top Tube Length | 617 mm | 625 mm | 644 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 170 mm | 180 mm | 190 mm |
| Chainstay Length | 482 mm | 482 mm | 482 mm |
| Wheelbase | 1175 mm | 1185 mm | 1204 mm |
| Wheels | 29" | 29" | 29" |
About this model
E-Power C29 SE 3.0 CX7 Belt Gent is part of the Corratec E E Power model. Corratec released 97 e-bikes variations of this model so far. You can easily view all of the Corratec E E Power e-bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Commuter e-bikes
According to our math, the average price for a trustworthy Commuter e-bike is 2569$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Commuter e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
E-Power C29 SE 3.0 CX7 Belt Gent components
Fork material
When it comes to the fork, this e-bike has an aluminum one, which is a lighter material. However, it is not as tough, nor durable as steel is.
Wheels
The E-Power C29 SE 3.0 CX7 Belt Gent 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec E-Power C29 SE 3.0 CX7 Belt Gent is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
