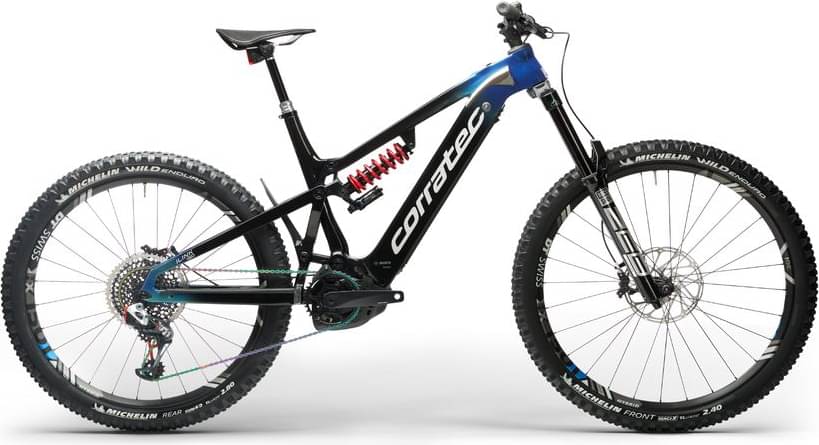

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 180mm -
Travel Rear 180mm -
Fork RockShox ZEB Select
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power iLink 180 , Shadow Edge Tube 2.0 - worldwide most stable and safest corratec E-Bike frame. 3.345 gram: Frame weight including all components and paintwork. Full carbon fully including the rear body. 180mm iLink technology. Material: Carbon
Suspension Fork
Rockshox Zeb Select RC 29" , Suspension travel: 180 mm
Rear Shock
Rockshox Super Deluxe
Drivetrain
Rear Derailleur
SRAM X01 Eagle 12S
Shift Levers
SRAM GX Eagle Single Click Trigger
Cassette
SRAM CS XG 1275 , Number of pinions; Ratio: 12s; 10 12 14 16 18 21 24 28 32 36 42 50
Crank
SRAM X-Sync E-Power Crank , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
DT Swiss H1900 Spline 29" front , Rim outer diameter: 29.00 zoll, Type of tires: clincher with tubes, DT Swiss H1900 Spline 650B rear , Rim outer diameter: 27.50 zoll, Type of tires: clincher with tubes
Tires
Michelin Wild Enduro TLR 29 front , Inside diameter: 29.00 zoll, Type of tires: clincher, Width: 2.4 inch, Michelin E-Wild 29 rear , Width: 2.60, Inside diameter: 29.00 zoll, Width: 28 mm
Brakes
Brakes
SRAM G2 R4 , Size brake disc: 203 mm front, Size brake disc: 203 mm rear
Cockpit
Stem
ZZYZX SL Alloy
Handlebar
ZZYZX SL Alloy Handlebar , Width: 800mm
Seat
Saddle
Selle Italia Model X
Seatpost
Kindshock 900i , Outer diameter: 31.6 mm
Motor & Battery
Motor
BOSCH Performance Line CX , No path too steep, no challenge too great: the Performance Line CX is made for anyone for whom the trail is a second home. eMTB mode will always give you the power you need at precisely the right moment. Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J), Max. support of 340% For powerful propulsion, an extremely sporty riding style and fast sprints. Weight of just approximately 2,9 Kg.
Battery
BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 42cm | 48cm | 52cm |
|---|---|---|---|
| Stack Reach Ratio | 1.354 mm | 1.335 mm | 1.324 mm |
| Stack | 616 mm | 621 mm | 629 mm |
| Reach | 455 mm | 465 mm | 475 mm |
| Top Tube Length | 599 mm | 611 mm | 623 mm |
| Seat Tube Angle | 77 ° | 77 ° | 77 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 86 mm | 97 mm | 106 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1236 mm | 1248 mm | 1262 mm |
| Wheels | 29" | 29" | 29" |
About this model
E-Power iLink 180 Pro is part of the Corratec E E Power model. Corratec launched 97 e-bikes of this model so far. Take a sneak peek at all Corratec E E Power e-bikes models from 2022, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
E-Power iLink 180 Pro components
Fork
The fork installed on this bike is the RockShox ZEB Select model. The travel on this model is 180mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Corratec E-Power iLink 180 Pro e-bike has the Rockshox Super Deluxe model installed, and has a travel of 180mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
As for the wheels, Corratec E-Power iLink 180 Pro 2022, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Corratec E-Power iLink 180 Pro has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Dropper post
A dropper post is included with the E-Power iLink 180 Pro. Therefore, climbing or descending will be a breeze.
