Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour MOBIE
-
Groupset SX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power MTC 100 Wave , Material: Alloy
Suspension Fork
SR Suntour Mobie25 Coil 27,5" , Suspension travel: 100 mm
Rear Shock
SR Suntour EDGE R
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
ZZYZX E-Power Crank , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
ZZYZX 29" front , Number of spokes: 32, ZZYZX 29" rear , Number of spokes: 32
Tires
Schwalbe Johnny Watts 29" front , Inside diameter: 27.50 zoll, Schwalbe Johnny Watts 29" rear , Inside diameter: 27.50 zoll
Brakes
Brakes
Tektro HD M535 4 piston front , Size brake disc: 203 mm, Tektro HD M535 4 piston rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy
Handlebar
ZZYZX Alloy Handlebar
Seat
Saddle
Selle Royal Essenza Moderate
Seatpost
Kindshock RAGE-i , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.427 mm | 1.454 mm | 1.464 mm |
| Stack | 612 mm | 631 mm | 650 |
| Reach | 429 mm | 434 mm | 444 mm |
| Top Tube Length | 605 mm | 615 mm | 630 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 170 mm | 190 mm |
| Chainstay Length | 485 mm | 485 mm | 485 mm |
| Wheelbase | 1182 mm | 1194 mm | 1211 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

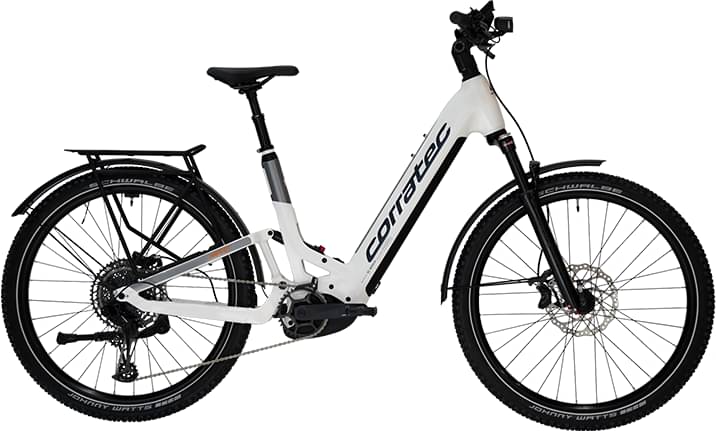

E-Power MTC 100 Wave 7 belongs to the Corratec E E Power model. There are 148 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
E-Power MTC 100 Wave 7 components
Fork
This e-bike has the Suntour MOBIE fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on E-Power MTC 100 Wave 7 are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The E-Power MTC 100 Wave 7 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
E-Power MTC 100 Wave 7 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Corratec model is also equipped with a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
