Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Suntour XCR
-
Groupset SX Eagle, SRAM -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

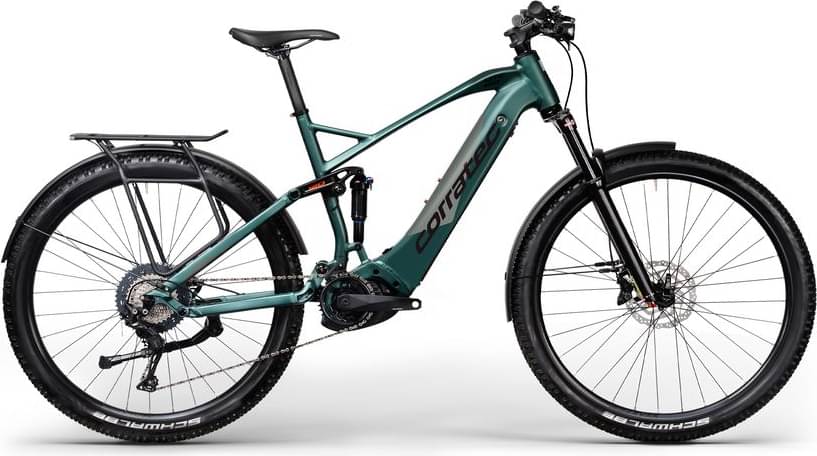

Corratec E-Power MTC 120
Suspension Fork
SR Suntour XCR 32 LOR Boost , Suspension travel: 120 mm
Rear Shock
SR Suntour EDGE LOR Air Trunnion
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 12S , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM X-Sync E-Power Crank , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
ZZYZX Cross Attack 29 Boost front , Rim outer diameter: 29.00 zoll, Type of tires: clincher, ZZYZX Cross Attack 29 Boost rear , Rim outer diameter: 29.00 zoll, Type of tires: clincher
Tires
Schwalbe Johnny Watts 29" front , Inside diameter: 29.00 zoll, Schwalbe Johnny Watts 29" rear , Inside diameter: 29.00 zoll
Brakes
Brakes
Tektro HDM275 front , Size brake disc: 180 mm, Tektro HDM275 rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar , Width: 760mm
Seat
Saddle
ZZYZX Sport Saddle
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 31.6 mm
Motor & Battery
Motor
BOSCH Performance Line CX , No path too steep, no challenge too great: the Performance Line CX is made for anyone for whom the trail is a second home. eMTB mode will always give you the power you need at precisely the right moment. Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J), Max. support of 340% For powerful propulsion, an extremely sporty riding style and fast sprints. Weight of just approximately 2,9 Kg.
Battery
BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.433 mm | 1.368 mm | 1.35 mm | 1.312 mm |
| Stack | 599 mm | 599 mm | 609 mm | 618 mm |
| Reach | 418 mm | 438 mm | 451 mm | 471 mm |
| Top Tube Length | 590 mm | 610 mm | 625 mm | 648 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 130 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1199 mm | 1219 mm | 1235 mm | 1259 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
E-Power MTC 120 is a Corratec E E Power model. There are 97 e-bikes that carry this model name. Take a sneak peek at all Corratec E E Power e-bikes models from 2022, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
The fork installed on this bike is the Suntour XCR model. The travel on this model is 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the E-Power MTC 120 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The E-Power MTC 120 has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
