Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power MTC Trinity Tube Gent
Suspension Fork
SR Suntour XCM , Suspension travel: 80 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 12S , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM PG1210 Eagle , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Cross Attack 29" front , Rim outer diameter: 29.00 zoll, ZZYZX Cross Attack 29" rear , Rim outer diameter: 29.00 zoll
Tires
Schwalbe Smart Sam 29" front , Inside diameter: 29.00 zoll, Width: 57 mm, Schwalbe Smart Sam 29" rear , Inside diameter: 29.00 zoll, Width: 57 mm
Brakes
Brakes
Tektro HDT275 front , Size brake disc: 180 mm, Tektro HDT275 rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar
Seat
Saddle
ZZYZX Sport Saddle
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , No path too steep, no challenge too great: the Performance Line CX is made for anyone for whom the trail is a second home. eMTB mode will always give you the power you need at precisely the right moment. Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J), Max. support of 340% For powerful propulsion, an extremely sporty riding style and fast sprints. Weight of just approximately 2,9 Kg.
Battery
BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 54cm | 57cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.499 mm | 1.499 mm | 1.443 mm | 1.366 mm |
| Stack | 640 mm | 640 mm | 638 mm | 638 mm |
| Reach | 427 mm | 427 mm | 442 mm | 467 mm |
| Top Tube Length | 610 mm | 610 mm | 625 mm | 650 |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 150 mm | 150 mm | 150 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1152 mm | 1152 mm | 1172 mm | 1197 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

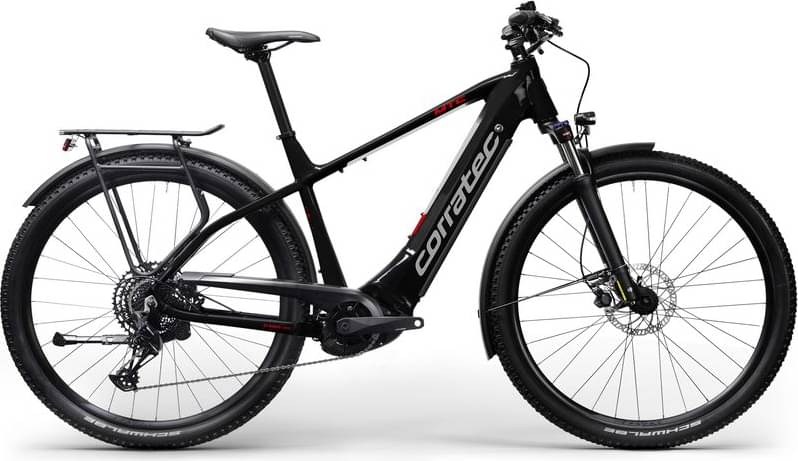

E-Power MTC 12S Trinity Tube Gent is a Corratec E E Power model. There are 97 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
According to our math, the average price for a trustworthy Crosscountry e-bike is 2453$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
The E-Power MTC 12S Trinity Tube Gent comes factory-installed with the Suntour XCM fork. This has a travel range of 80mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The E-Power MTC 12S Trinity Tube Gent 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
