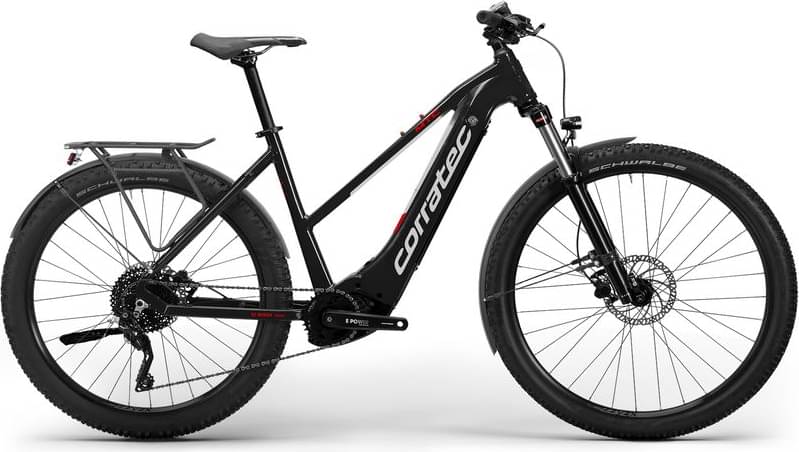

corratec E-Power MTC 12S Trinity Tube Trapez 2022
2022 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power MTC Trinity Tube Sport
Suspension Fork
SR Suntour XCM , Suspension travel: 80 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM PG1210 Eagle 12S , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM PG1210 Eagle , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX Cross Attack 29" front , Rim outer diameter: 29.00 zoll, ZZYZX Cross Attack 29" rear , Rim outer diameter: 29.00 zoll
Tires
Schwalbe Smart Sam 29" front , Inside diameter: 29.00 zoll, Width: 57 mm, Schwalbe Smart Sam 29" rear , Inside diameter: 29.00 zoll, Width: 57 mm
Brakes
Brakes
Tektro HDT275 front , Size brake disc: 180 mm, Tektro HDT275 rear , Size brake disc: 180 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar
Seat
Saddle
ZZYZX Sport Saddle
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , No path too steep, no challenge too great: the Performance Line CX is made for anyone for whom the trail is a second home. eMTB mode will always give you the power you need at precisely the right moment. Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J), Max. support of 340% For powerful propulsion, an extremely sporty riding style and fast sprints. Weight of just approximately 2,9 Kg.
Battery
BOSCH PowerTube 625Wh , What more could you want? The new PowerTube 625 lets you enjoy long and mountainous rides, while still reserving plenty of energy for every adventure. Thanks to a rated capacity of 16.7 Ah and approx. 625 Wh energy content, the lithium-ion battery brings maximum ranges and altitudes within your grasp. Energy: 625 wh, Voltage: 36V, Weight of just approx. 3,5 Kg, Compatible with DualBattery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 44cm | 49cm | 54cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.654 mm | 1.647 mm | 1.582 mm | 1.508 mm |
| Stack | 640 mm | 649 mm | 647 mm | 647 mm |
| Reach | 387 mm | 394 mm | 409 mm | 429 mm |
| Top Tube Length | 570 mm | 580 mm | 595 mm | 615 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 150 mm | 160 mm | 160 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1112 mm | 1122 mm | 1143 mm | 1163 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
E-Power MTC 12S Trinity Tube Trapez belongs to the Corratec E E Power model. Corratec released 97 e-bikes variations of this model so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
If you want an acceptable Crosscountry e-bike you should know that the average price is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
E-Power MTC 12S Trinity Tube Trapez components
Fork
The E-Power MTC 12S Trinity Tube Trapez comes factory-installed with the Suntour XCM fork. This has a travel range of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the E-Power MTC 12S Trinity Tube Trapez model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. Corratec E-Power MTC 12S Trinity Tube Trapez has Mechanical Disc brakes installed. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
