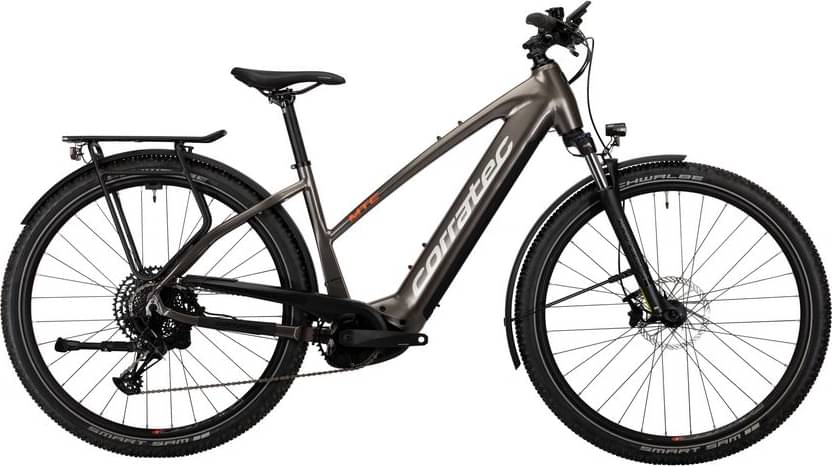

corratec E-Power MTC Elite 12S SE 3.0 Trapez 2023
2023 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 80mm -
Fork Suntour XCM
-
Groupset SX Eagle -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 750Wh , Energy: 750 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec E-Power MTC Elite 12S SE 3.0 Trapez , Material: Alloy
Suspension Fork
SR Suntour XCM LO DS , Suspension travel: 80 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM CS PG1210 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM PG1210 Eagle , Number of chainrings; Ratio: 1s; 38
Wheels
Rims
ZZYZX 29er Disc front , ZZYZX 29er Disc rear
Tires
Schwalbe Smart Sam 29" front , Inside diameter: 29.00 zoll, Width: 57 mm, Schwalbe Smart Sam 29" rear , Inside diameter: 29.00 zoll, Width: 57 mm
Brakes
Brakes
Tektro HD-T275 PM 180 front , Size brake disc: 180 mm, Tektro HD-T275 PM 160 rear , Size brake disc: 160 mm
Cockpit
Stem
ZZYZX SL Alloy Stem
Handlebar
ZZYZX SL Alloy Handlebar
Seat
Saddle
ZZYZX Sport Saddle
Seatpost
ZZYZX SL Alloy Seatpost , Outer diameter: 30.9 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 750Wh , Energy: 750 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 44cm | 49cm | 54cm | 57cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.56 mm | 1.508 mm | 1.47 mm | 1.442 mm |
| Stack | 671 mm | 671 mm | 676 mm | 685 mm |
| Reach | 430 mm | 445 mm | 460 mm | 475 mm |
| Top Tube Length | 635 mm | 650 | 666 mm | 684 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 145 mm | 145 mm | 150 mm | 160 mm |
| Chainstay Length | 455 mm | 455 mm | 455 mm | 455 mm |
| Wheelbase | 1212 mm | 1227 mm | 1244 mm | 1263 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
E-Power MTC Elite 12S SE 3.0 Trapez is a Corratec E E Power model. 97 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
E-Power MTC Elite 12S SE 3.0 Trapez components
Fork
This e-bike has the Suntour XCM fork installed. The fork’s travel is 80mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The E-Power MTC Elite 12S SE 3.0 Trapez 2023 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
