Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Fork Suntour AION
-
Groupset SX Eagle, SRAM -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery BOSCH PowerTube 625Wh , Energy: 625 wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Corratec RS 160 , Material: Alloy
Suspension Fork
SR Suntour AION EVO 35-BOOST , Suspension travel: 160 mm
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle Single Click E Trigger
Cassette
SRAM CS PG1210 11-50T , Number of pinions; Ratio: 12s; 11 13 15 17 19 22 25 28 32 36 42 50
Crank
SRAM X-Sync E-Power Crank , Number of chainrings; Ratio: 1s; 34
Wheels
Rims
ZZYZX Cross Attack front , Rim outer diameter: 29.00 zoll, ZZYZX Cross Attack rear , Rim outer diameter: 27.50 zoll
Tires
Michelin E-Wild 29 front , Width: 2.60, Inside diameter: 29.00 zoll, Michelin E-Wild 650B rear , Width: 2.80, Inside diameter: 27.50 zoll
Brakes
Brakes
Tektro HD-M750 front , Size brake disc: 203 mm, Tektro HD-M750 rear , Size brake disc: 203 mm
Cockpit
Stem
ZZYZX SL Alloy
Handlebar
ZZYZX SL Alloy Handlebar , Width: 800mm
Seat
Saddle
Selle Italia X3 XP BOOST Superflow
Seatpost
Kindshock 900i , Outer diameter: 31.6 mm
Motor & Battery
Motor
BOSCH Performance Line CX , Max speed: 25 km/h, Power: 250 watt, Torque: 85 Nm (J)
Battery
BOSCH PowerTube 625Wh , Energy: 625 wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 39cm | 42cm | 47cm | 52cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.541 mm | 1.472 mm | 1.417 mm | 1.377 mm |
| Stack | 655 mm | 655 mm | 659 mm | 668 mm |
| Reach | 425 mm | 445 mm | 465 mm | 485 mm |
| Top Tube Length | 612 mm | 632 mm | 654 mm | 658 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 145 mm | 145 mm | 150 mm | 160 mm |
| Chainstay Length | 449 mm | 449 mm | 449 mm | 449 mm |
| Wheelbase | 1223 mm | 1243 mm | 1265 mm | 1289 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview

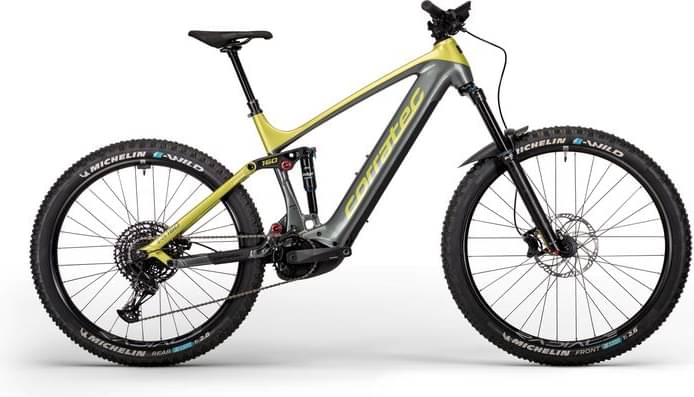

E-Power RS 160 Elite is part of the Corratec E E Power model. Corratec launched 97 e-bikes of this model so far. Take a sneak peek at all Corratec E E Power e-bikes models from 2023, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
E-Power RS 160 Elite components
Fork
This e-bike has the Suntour AION fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Corratec E-Power RS 160 Elite 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. Corratec E-Power RS 160 Elite is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Dropper post
A dropper post is included with the E-Power RS 160 Elite. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
